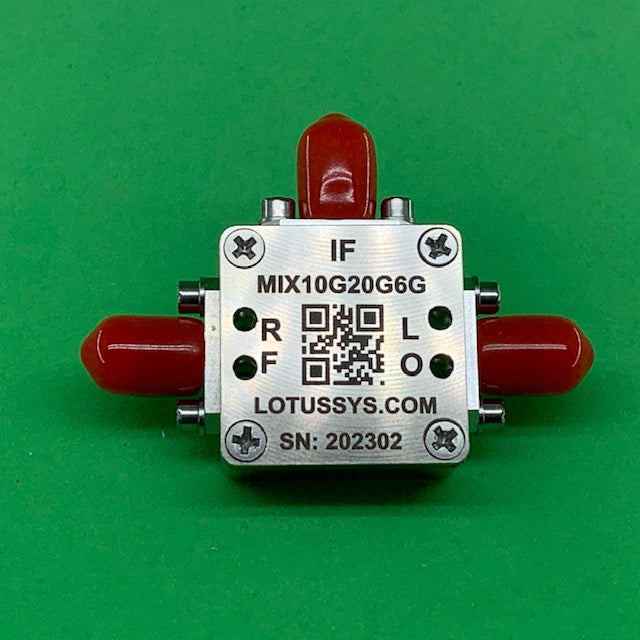

Passive Frequency Mixer (MIX10G20G6G) 10G - 20GHz RF and DC - 6G IF
$ 356.00 USD

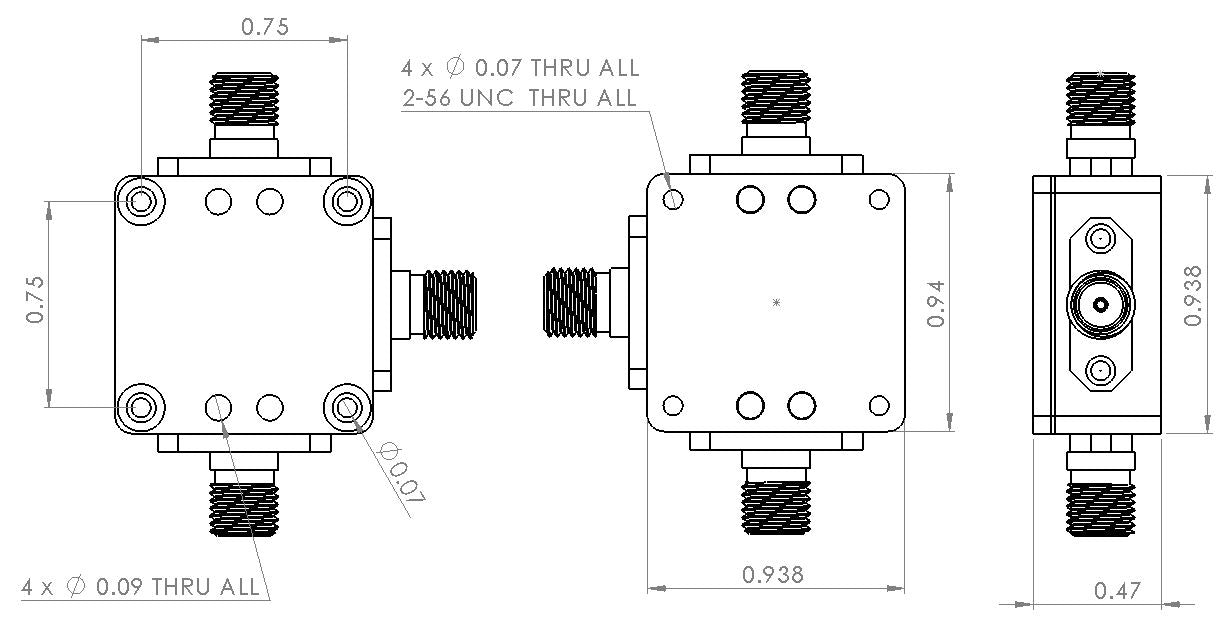

MIX10G20G6G is a Level 13 (LO Power +13 dBm) passive wide band frequency mixer (10 GHz to 20 GHz) in a small 15/16”x15/16”x0.48” shielded RF enclosure (PN: 6UDD2W6H41SMAP3). It has conversion loss (8.5dB typ.) and excellent IF BW (DC to 6GHz). It can be used for up and down converter. This mixer provides excellent local oscillator (LO) to radio frequency (RF) and LO to intermediate frequency (IF) isolation due to optimized balun structures. SKU#: AK20-005D.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- Frequency Range: 10 GHz to 20 GHz;
- Conversion loss, 8.5 dB typ.
- Double balanced mixer
- Usable as up and down converter
- Operating Temp. (-40°C to 85°C)
- Storage Temp. (-55°C to 100°C)
- Maximum RF Power 25 dBm
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- Use ADI HMC554ALC3B
- ROHS Compliant
Applications
- Satellite up/down converter
- Mobile Infrastructure
- VSAT/ISM
- General Purpose Wireless
- SDR & Ham Radio
- Test Instrumentation
Resources (PDF Datasheet)
MIX10G20G6G Datasheet
