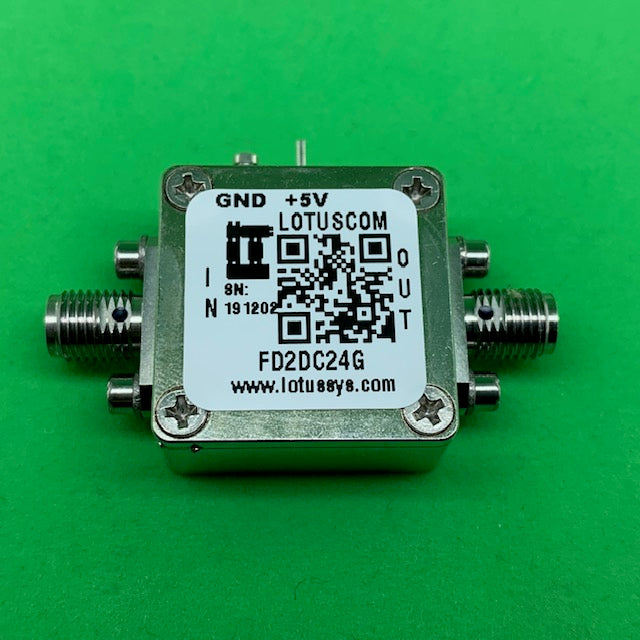

Frequency Divider/Prescaler Divide by 2 (DC to 24 GHz) FD2DC24G
$ 386.00 USD
Part Number: FD2DC24G is a Divide by M=2 Frequency divider with input frequency range from frequency DC to 24 GHz with a single +5 DC Supply. The low additive SSB Phase Noise of -153 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance.
Enclosure is using RF Design Kit 6UDD6W6H41SMAAA2 with dimension 0.9375"x0.9375x0.48".
SKU#: AK28-002D.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Frequency Range: DC to 24 GHz
- Divider by M: (M=2)
- Operating Temperature -40 to +85C
- Input Power Range: Min. -15 dBm, Max. +10 dBm
- Supply current (Icc) typical 73 mA
- Supply Voltage Vcc=+5 V
- High Quality Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB (very low loss and high thermal performance)
- ROHS Compliant
Applications
- Microwave Radio
- Test Instrumentation
- Communication/Software Defined Radio/Ham Radio
Resources (PDF Datasheet)

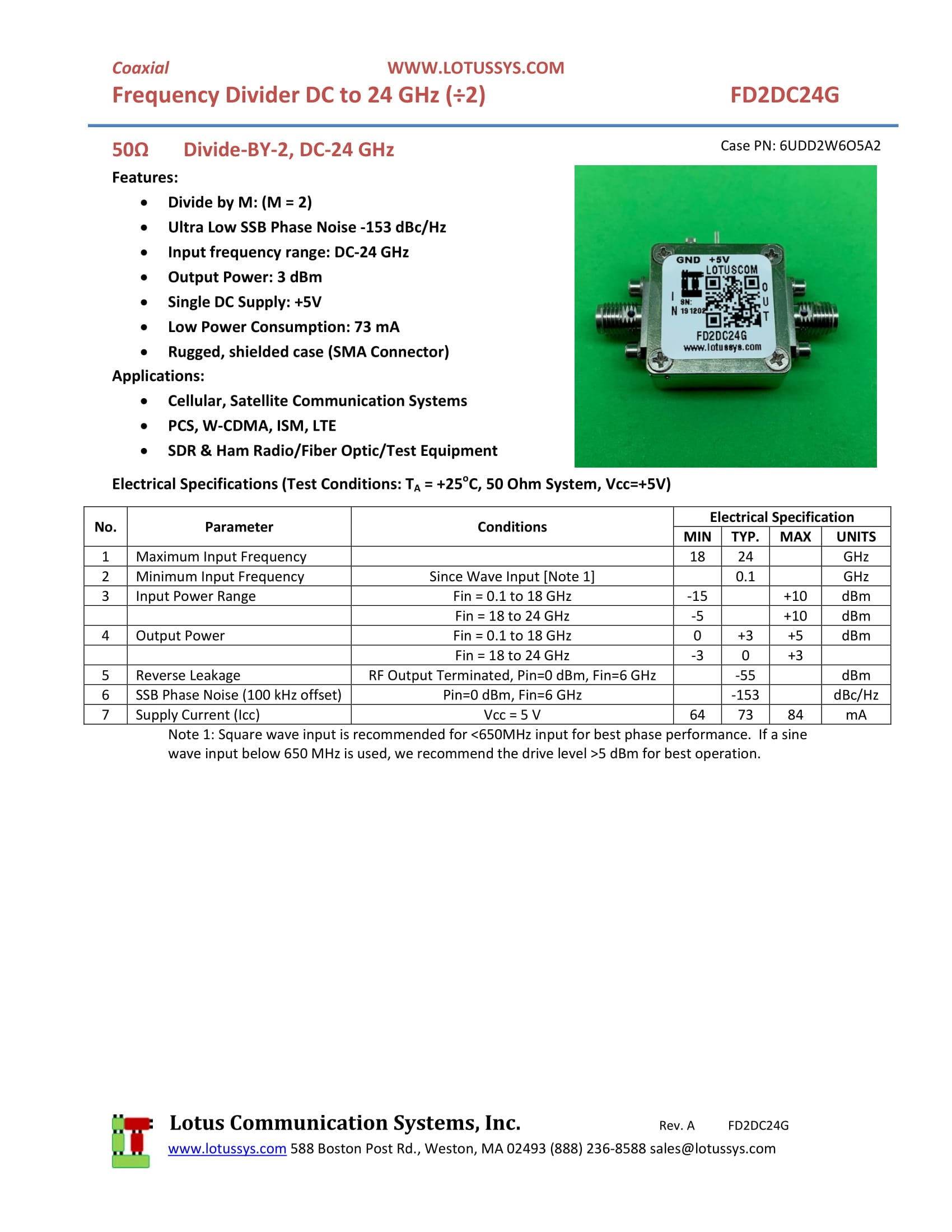

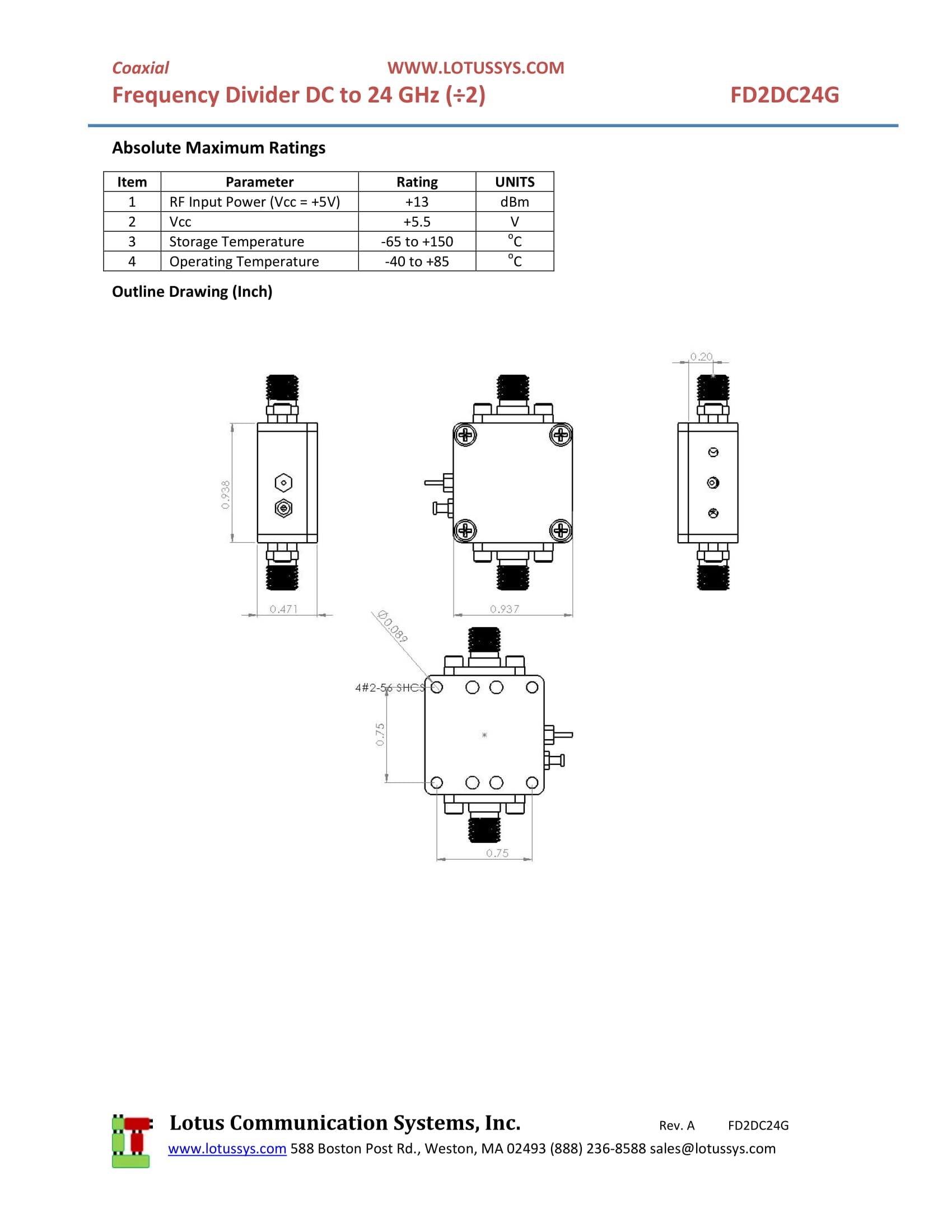

FD2DC24G Datasheet
