Frequency Divider/Prescaler Divide by 8 (DC to 18 GHz) FD8DC18G

5 items left

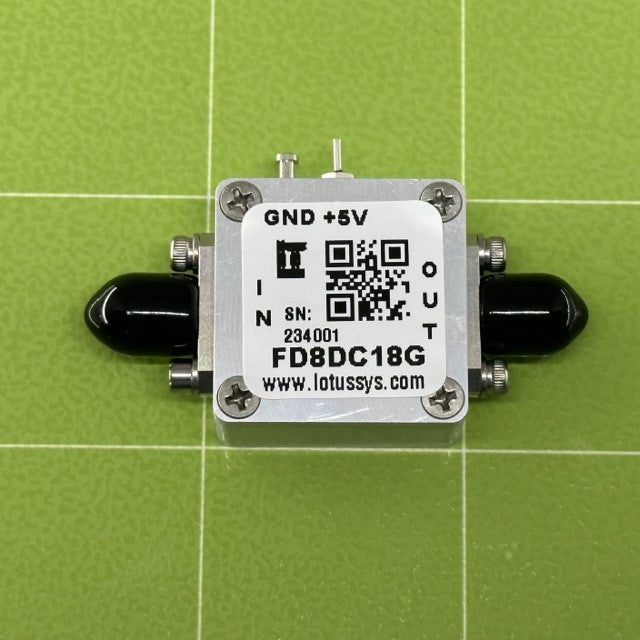

FD8DC18G is a Divide by M=8 Frequency divider with input frequency range from frequency DC to 18 GHz with a single +5 DC Supply. The low additive SSB Phase Noise of -150 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance.

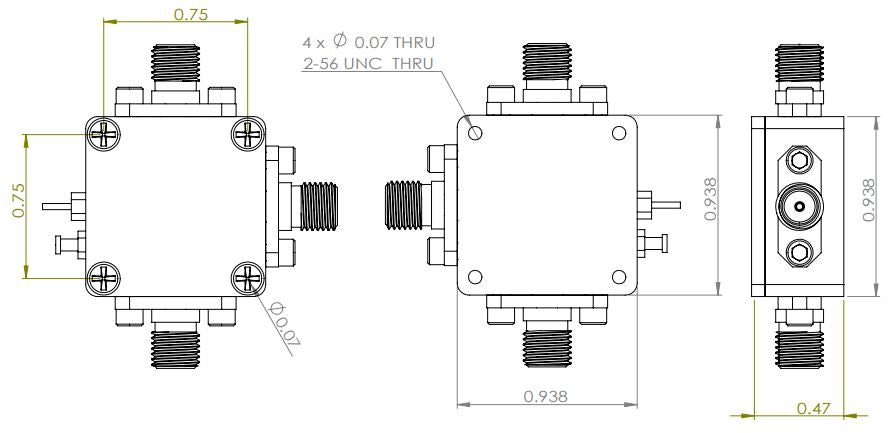

Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59".

Features:
    * Frequency Range: DC to 18 GHz
    * Divier by M: (M=8)
    * Operating Temperature -40 to +85C
    * Input Power Range: Min. -15 dBm, Max. +10 dBm
    * Supply current (Icc) typical 103 mA
    * Supply Voltage Vcc=+5 V
    * High Quality Stainless Steel SMA Female Connector
    * High Quality Isola-Tera RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant

Applications:
    * Microwave Radio
    * Test Instrumentation
    * Communication/Software Defined Radio/Ham Radio

Click https://cdn.shopify.com/s/files/1/1592/7469/files/FD8DC18G.pdf to see detailed specification.

Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
