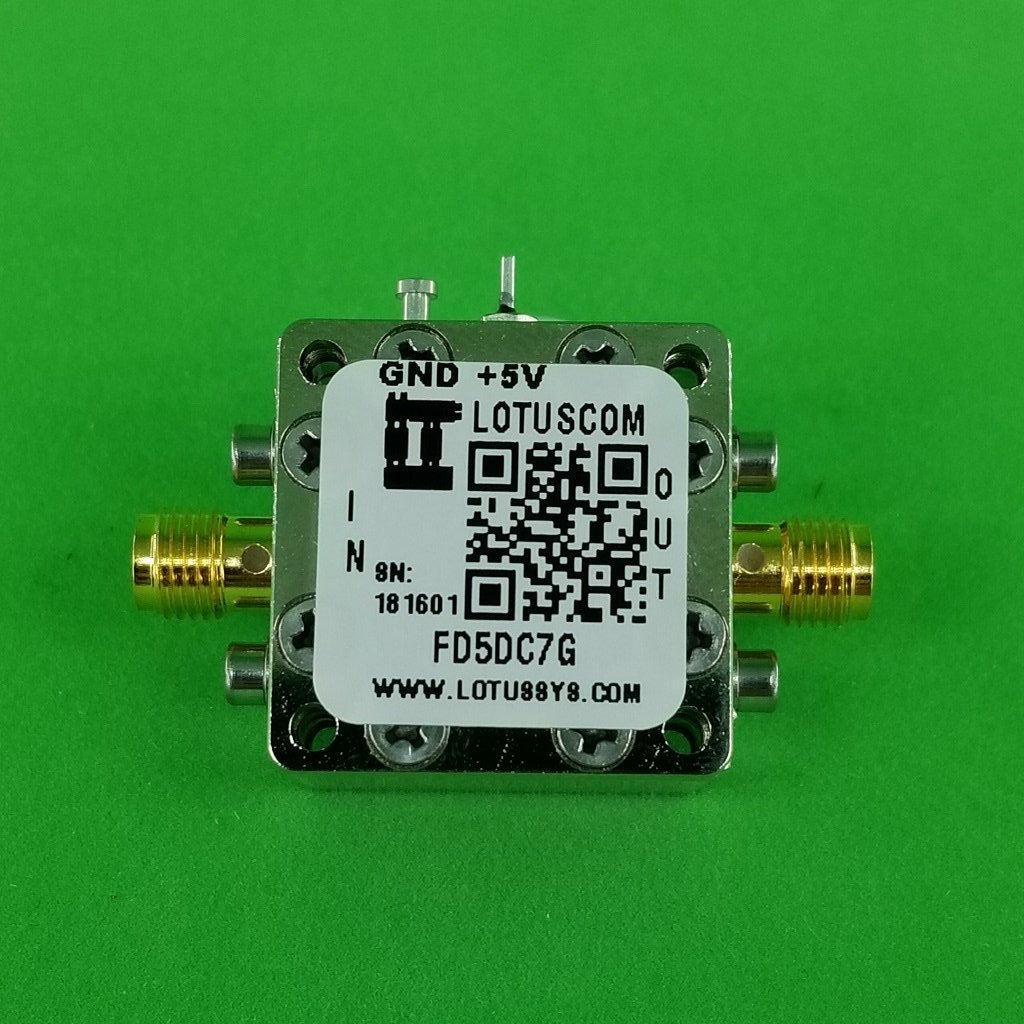

  • Frequency Divider/Prescaler Divide by 5 (DC to 7 GHz) FD5DC7G

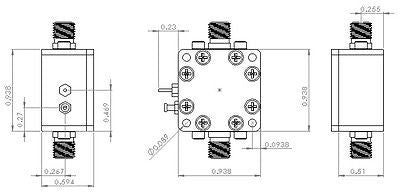

    FD5DC7G is a Divide by M=5 Frequency divider with input frequency range from DC to 7 GHz. Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59". The FD5DC7G can be powered from a single supply +5V. SKU#: AK20_002O.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    18 items left

    Features

    • Frequency Range: DC to 7 GHz
    • Divide by M: (M=5)
    • Operating Temperature -40 to +85°
    • Input Power Range: Fin = 1 to 5 GHz Min. -15 dBm, Max. +12 dBm
    • Input Power Range: Fin = 5 to 6 GHz Min. -15 dBm, Max. +10 dBm
    • Input Power Range: Fin = 6 to 7 GHz Min. -15 dBm, Max. +5 dBm
    • Output Power -1 dBm typ.
    • SSB Phase Noise (100 KHz offset) at Fin =6 GHz, Pin=0 dBm, -153 dBc/Hz
    • Supply current (Icc) typical 80 mA
    • Supply Voltage Vcc=5.0 V
    • High Quality Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Microwave Radio
    • Test Instrumentation
    • Satellite Communication/Software Defined Radio/Ham Radio

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FD5DC7G Datasheet
