Frequency Divider by 2 (DC Hz to 8 GHz) FD2DC8G
Frequency Divider by 2 (DC Hz to 8 GHz) FD2DC8G
Frequency Divider by 2 (DC Hz to 8 GHz) FD2DC8G
Frequency Divider by 2 (DC Hz to 8 GHz) FD2DC8G

FD2DC8G

Frequency Divider by 2 (DC Hz to 8 GHz) FD2DC8G

$ 99.99 USD

20 items left

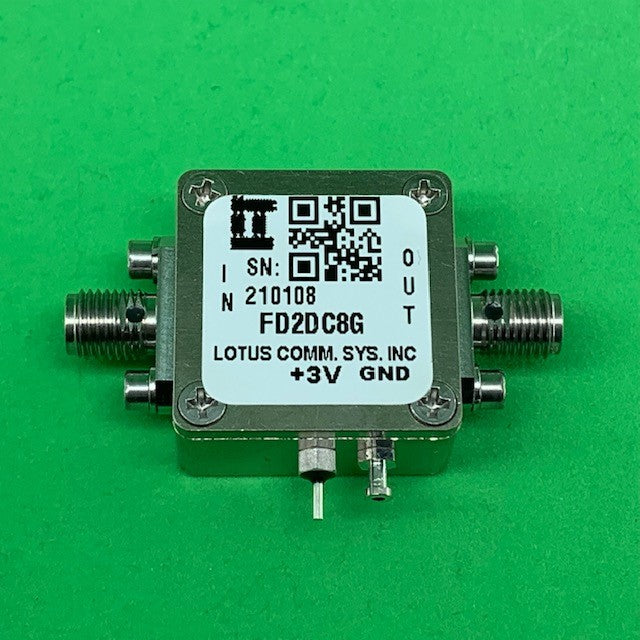

FD2DC8G is a Divide by M=2 Frequency divider with input frequency range from 100 MHz to 8 GHz. Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59". The FD2DC8G can be powered from a single supply +3V. SKU#: AK20_001I.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

Collections: Frequency Divider


Features

  • Frequency Range: DC to 8 GHz
  • Divide by M: (M=2)
  • Operating Temperature -40 to +85°C
  • Input Power Range: Fin = 1-7 GHz Min. -12 dBm, Max. +12 dBm
  • Input Power Range: Fin = 7-8 GHz Min. -4 dBm, Max. +10 dBm
  • SSB Phase Noise (100 KHz offset) at Fin =4 GHz, Pin=0 dBm, -148 dBc/Hz
  • Supply current (Icc) typical 42 mA
  • Supply Voltage Vcc=3.0 V
  • High Quality Stainless Steel SMA Connector
  • High Quality Rogers RO4350 PCB
  • ROHS Compliant

Applications

  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FD2DC8G Datasheet
