Frequency Divider by 4 (DC to 8 GHz) FD4DC8G

7 items left

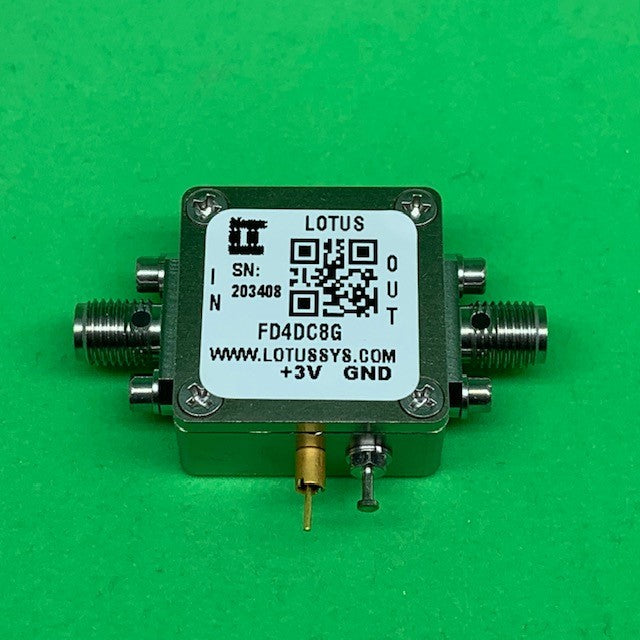

FD4DC8G is a Divide by M=4 Frequency divider with input frequency range from DC to 8 GHz. Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59". The FD4DC8G can be powered from a single supply +3V.. SKU#: AK20_001I.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).


  • Frequency Range: DC to 8 GHz
  • Divide by M: (M=4)
  • Operating Temperature -40 to +85°C
  • Input Power Range: Fin = 1 to 6 GHz Min. -12 dBm, Max. +12 dBm
  • Input Power Range: Fin = 6 to 8 GHz Min. -3 dBm, Max. +10 dBm
  • Output Power Fin = 4 GHz, -2.0 dBm typ.
  • SSB Phase Noise (100 KHz offset) at Fin =4 GHz, Pin=0 dBm, -150 dBc/Hz
  • Supply current (Icc) typical 53 mA
  • Supply Voltage Vcc=3.0 V
  • High Quality Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant


  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FD4DC8G Datasheet
