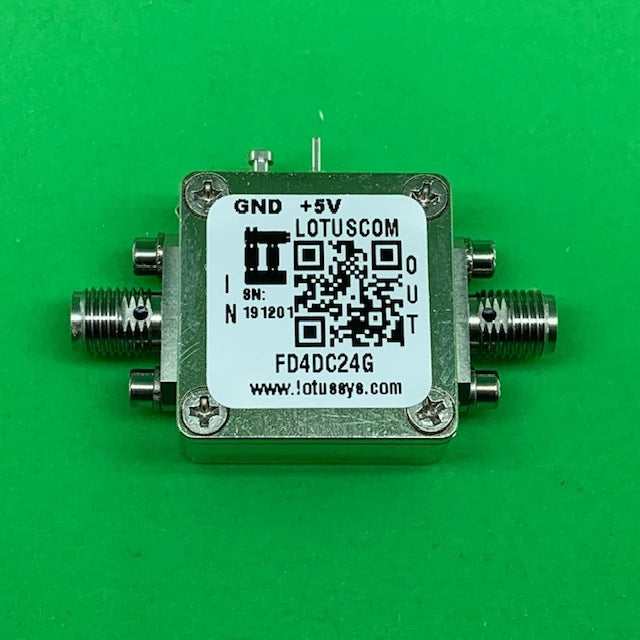

Frequency Divider/Prescaler Divide by 4 (DC to 24 GHz) FD4DC24G

Frequency Divider/Prescaler Divide by 4 (DC to 24 GHz) FD4DC24G

Frequency Divider/Prescaler Divide by 4 (DC to 24 GHz) FD4DC24G

$ 249.00 USD

Part Number: FD4DC24G is a Divide by M=4 Frequency divider with input frequency range from frequency DC to 24 GHz with a single +5 DC Supply. The low additive SSB Phase Noise of -154 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance.

Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59".

SKU#: AK20-020R.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

Collections: Frequency Divider

Features

Frequency Range: DC to 24 GHz
Divider by M: (M=4)
Operating Temperature -40 to +85C
Input Power Range: Min. -15 dBm, Max. +10 dBm
Supply current (Icc) typical 78 mA
Supply Voltage Vcc=+5 V
High Quality Stainless Steel SMA Female Connector
High Quality Rogers RO4350 RF PCB (very low loss and high thermal performance)
ROHS Compliant

Applications

Microwave Radio
Test Instrumentation
Communication/Software Defined Radio/Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

FD4DC24G Datasheet
