    • Home / RF Encl. Kit-Passive SMA (12mil Pin)

    Outstanding Broadband Performance up to 24 GHz!

    Part Number Data Sheet PCB Thickness PCB Length PCB Width Enc. Length Enc. Width Enc. Height Num. of CONN Price Order

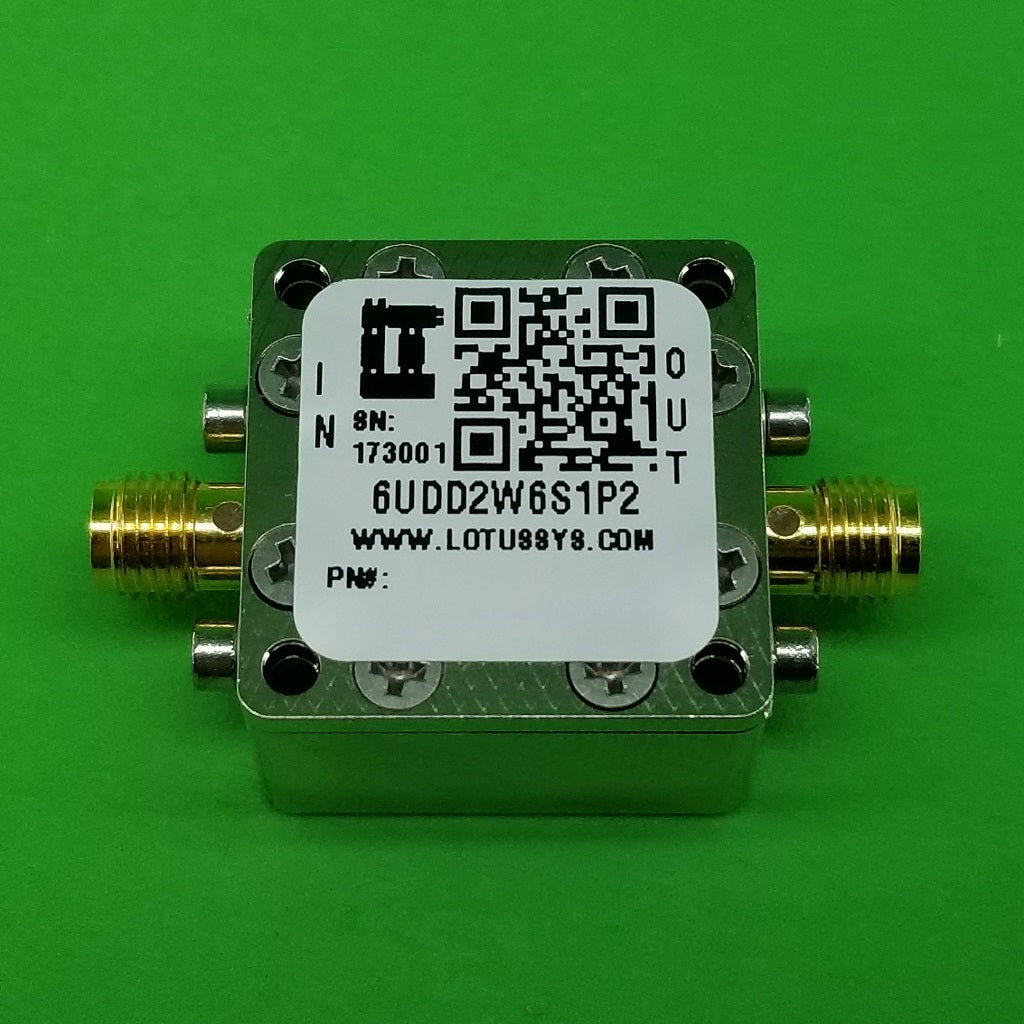

    6UDD2W6S1P2 PDF 20mil 9/16 9/16 15/16 15/16 0.59 2 $98.00 Order

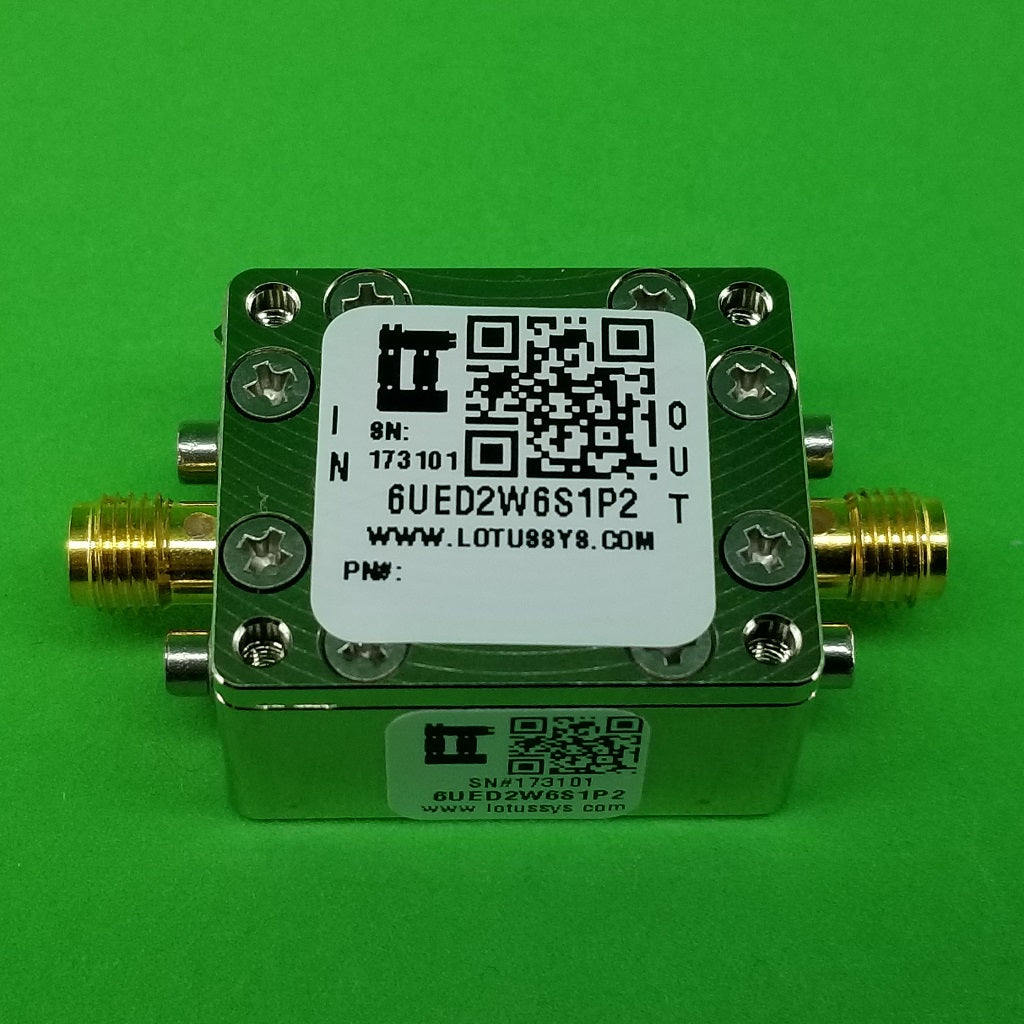

    6UED2W6S1P2 PDF 20mil 3/4 9/16 1-1/8 15/16 0.59 2 $108.00 Order

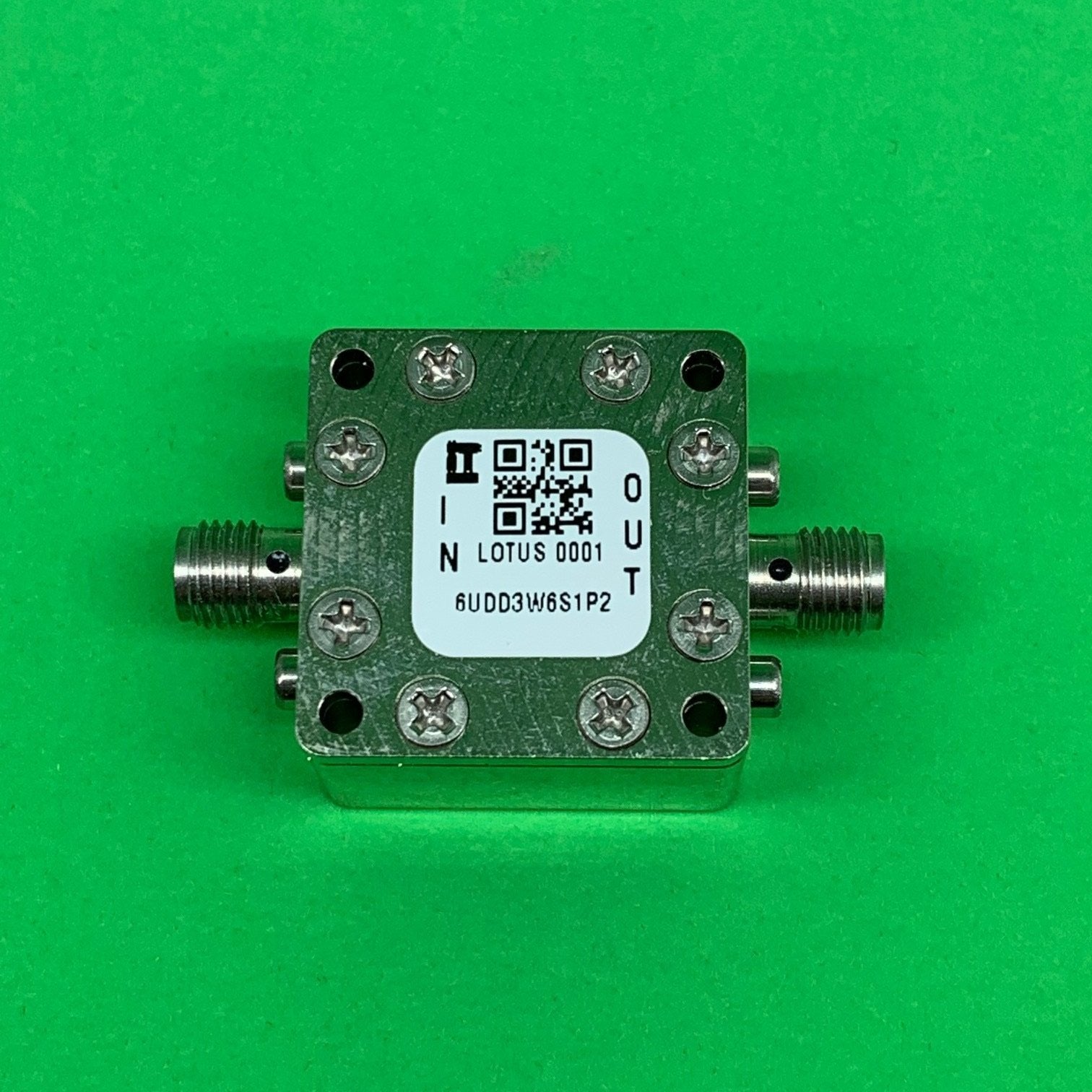

    6UDD3W6S1P2 PDF 30mil 9/16 9/16 15/16 15/16 0.59 2 $98.00 Order
    6UDD2W6H41SMAP2 PDF 20mil 9/16 9/16 15/16 15/16 0.48 2 $98.00 Order

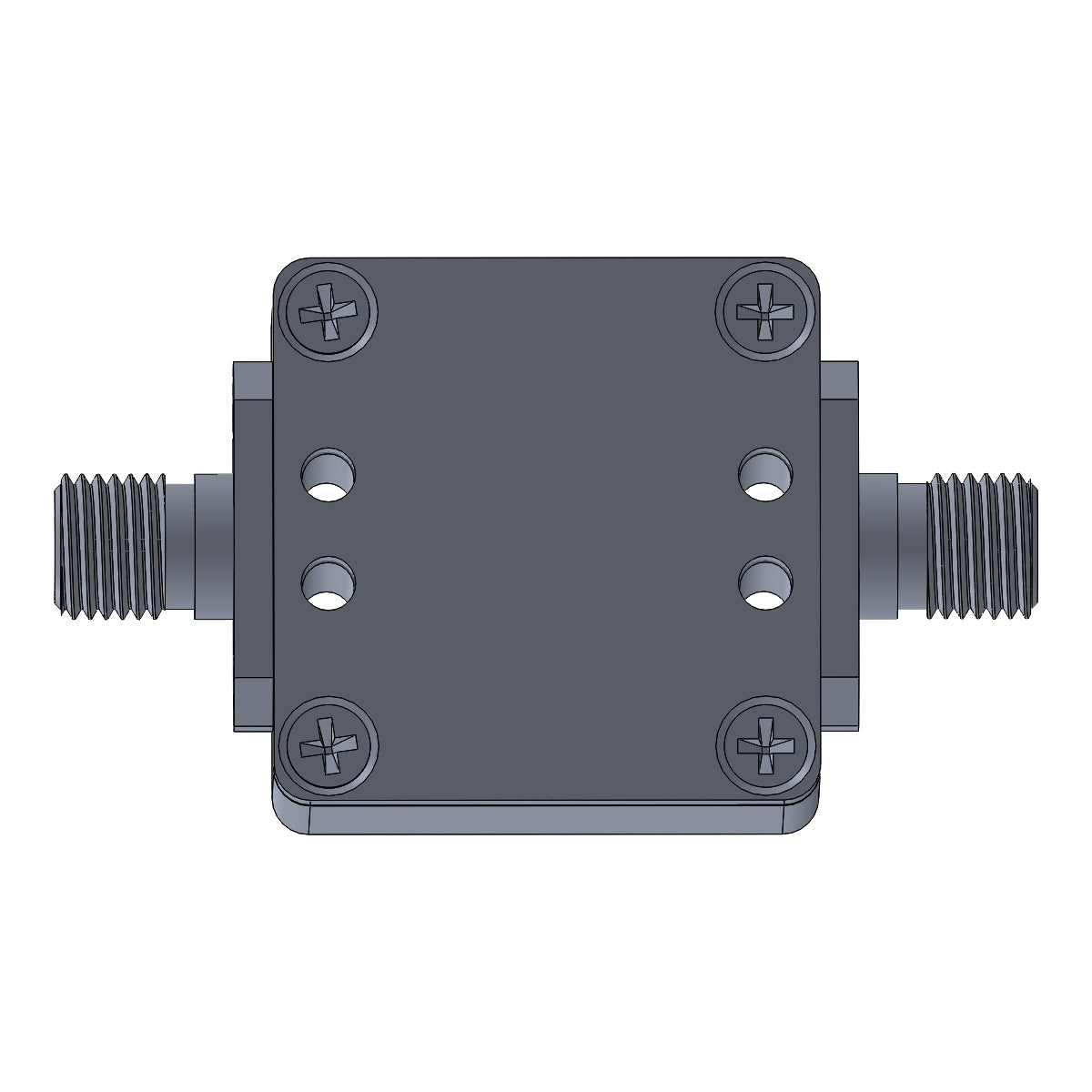

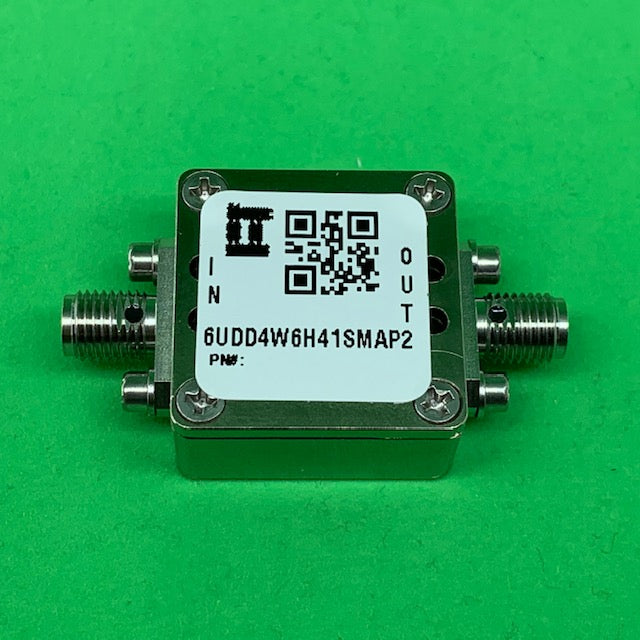

    6UDD4W6H41SMAP2 PDF 42mil 9/16 9/16 15/16 15/16 0.48 2 $98.00 Order

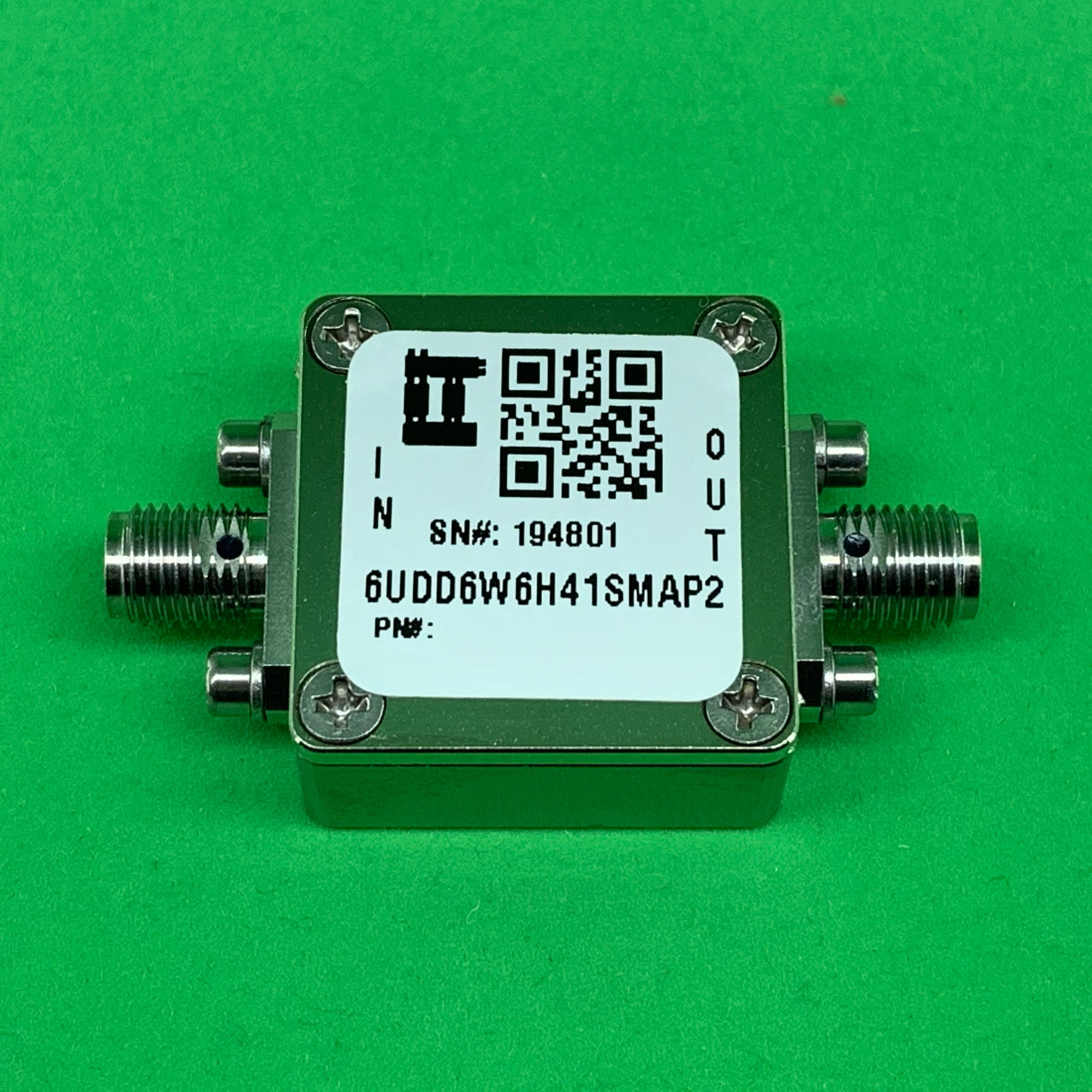

    6UDD6W6H41SMAP2 PDF 62mil 9/16 9/16 15/16 15/16 0.48 2 $98.00 Order

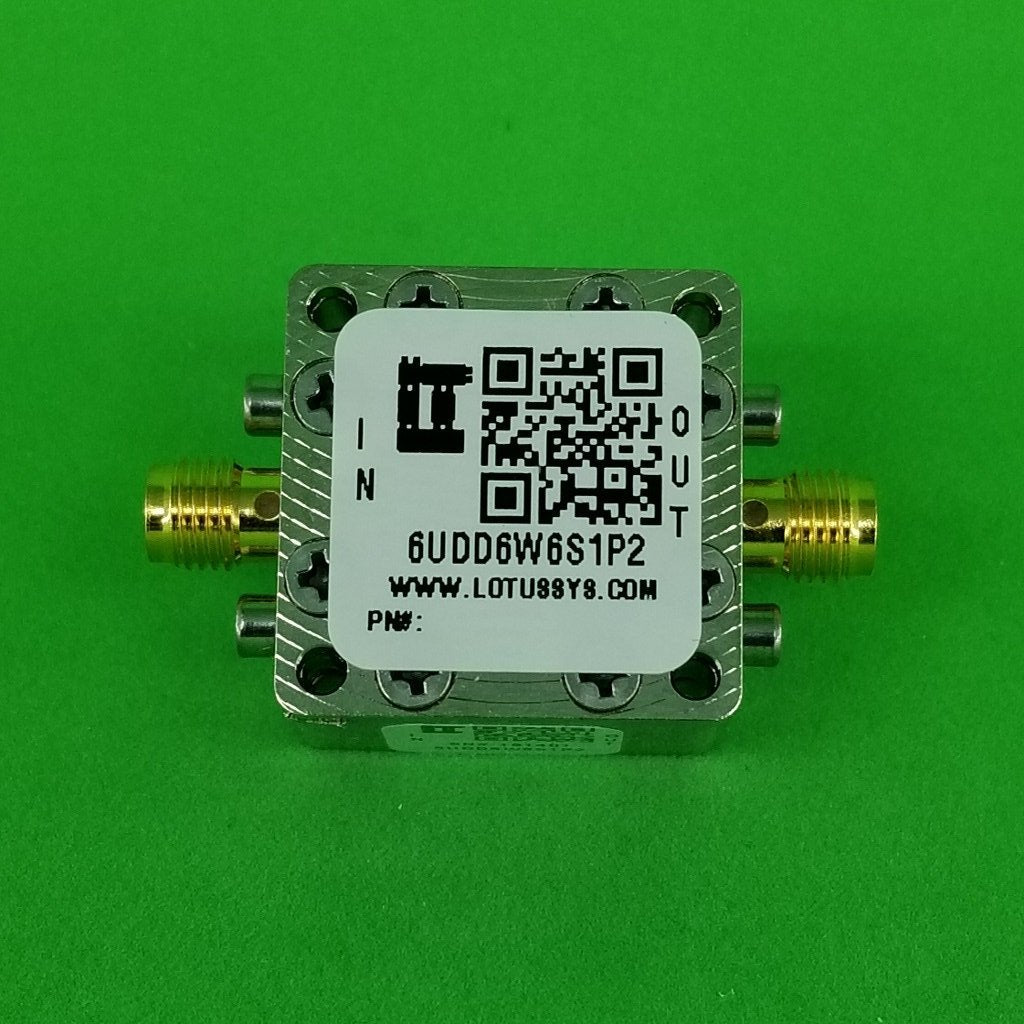

    6UDD6W6S1P2 PDF 62mil 9/16 9/16 15/16 15/16 0.59 2 $98.00 Order

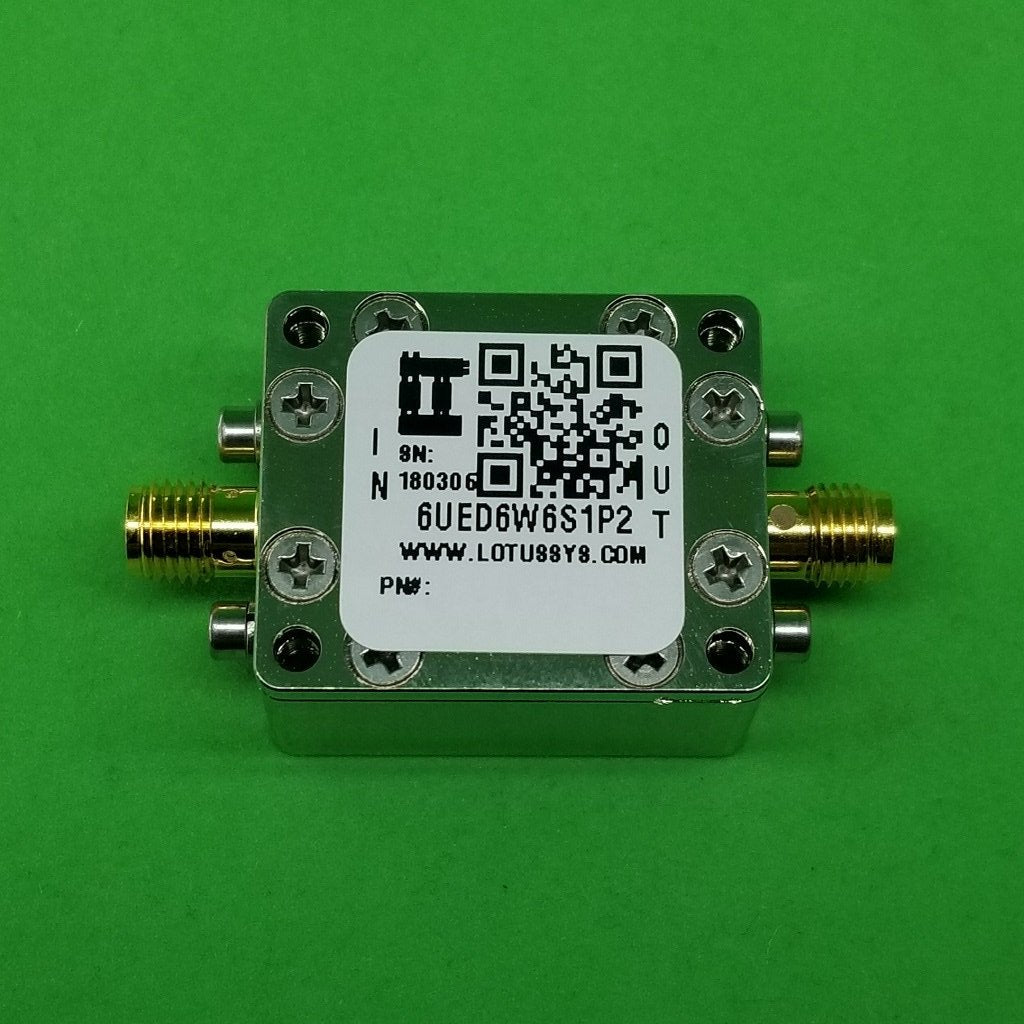

    6UED6W6S1P2 PDF 62mil 3/4 9/16 1-1/8 15/16 0.59 2 $108.00 Order

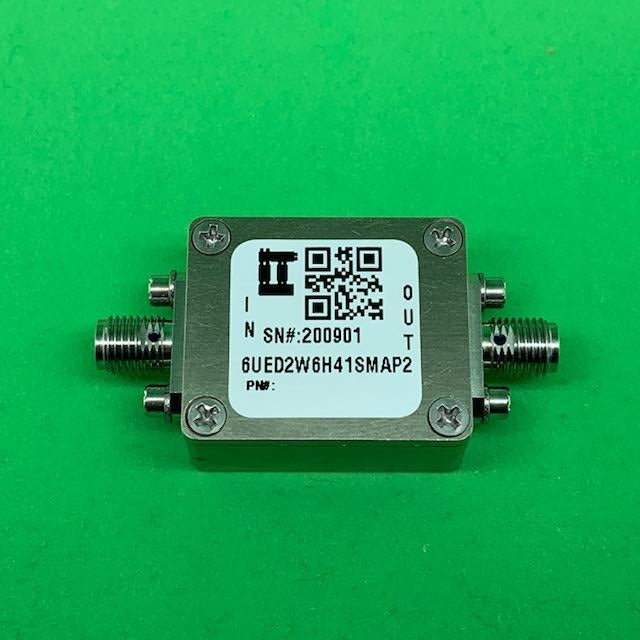

    6UED2W6H41SMAP2 PDF 20mil 3/4 9/16 1-1/8 15/16 0.48 2 $108.00 Order
    RF Enclosure Kit for 0.020"/0.5mm PCB (size 9/16"X9/16") Passive SMA Connector
    RF Enclosure Kit for 0.020"/0.5mm PCB (size 9/16"X9/16") Passive SMA Connector $ 98.00 USD
    RF Enclosure Kit for 0.020"/0.5mm PCB with 0.75"x0.5625" Board (Passive)
    RF Enclosure Kit for 0.020"/0.5mm PCB (size 3/4"x9/16") Passive SMA Connector $ 108.00 USD
    RF Enclosure Kit for 0.030"/0.8mm PCB (size 9/16"X9/16") Passive SMA Connector
    RF Enclosure Kit for 0.030"/0.8mm PCB (size 9/16"X9/16") Passive SMA Connector $ 98.00 USD
    RF Enclosure Kit for 0.02"/0.5mm PCB (9/16"X9/16") Passive SMA Connector 0.48" Height
    RF Enclosure Kit for 0.02"/0.5mm PCB (9/16"X9/16") Passive SMA Connector 0.48" Height $ 98.00 USD
    RF Enclosure Kit for 0.04"/1mm PCB (9/16"X9/16") Passive SMA Connector 0.48" Height
    RF Enclosure Kit for 0.04"/1mm PCB (9/16"X9/16") Passive SMA Connector 0.48" Height $ 98.00 USD
    RF Enclosure Kit for 0.062"/1.6mm PCB (9/16"X9/16") Passive SMA Connector 0.41" Height
    RF Enclosure Kit for 0.062"/1.6mm PCB (9/16"X9/16") Passive SMA Connector 0.41" Height $ 98.00 USD
    RF Enclosure Kit for 0.062"/1.6mm PCB (size 9/16"X9/16") Passive SMA Connector
    RF Enclosure Kit for 0.062"/1.6mm PCB (size 9/16"X9/16") Passive SMA Connector $ 98.00 USD
    RF Enclosure Kit for 0.062"/1.6mm PCB (size 3/4"X9/16") Passive SMA Connector
    RF Enclosure Kit for 0.062"/1.6mm PCB (size 3/4"X9/16") Passive SMA Connector $ 108.00 USD
    RF Enclosure Kit for 0.020"/0.5mm PCB (size 3/4"X9/16") Passive SMA Connector 0.41" Height
    RF Enclosure Kit for 0.020"/0.5mm PCB (size 3/4"X9/16") Passive SMA Connector 0.41" Height $ 108.00 USD
