RF Enclosure Kit for 0.04"/1mm PCB (9/16"X9/16") Passive SMA Connector 0.48" Height

Part Number: 6UDD4W6H41SMAP2 is RF Designer Kit for RF prototyping with PCB 9/16"x9/16"x0.04"(or 1mm).

This enclosure is compatible to Eurocircuits RF Pool of 4 Layer PCB with 0.04" PCB Thickness.

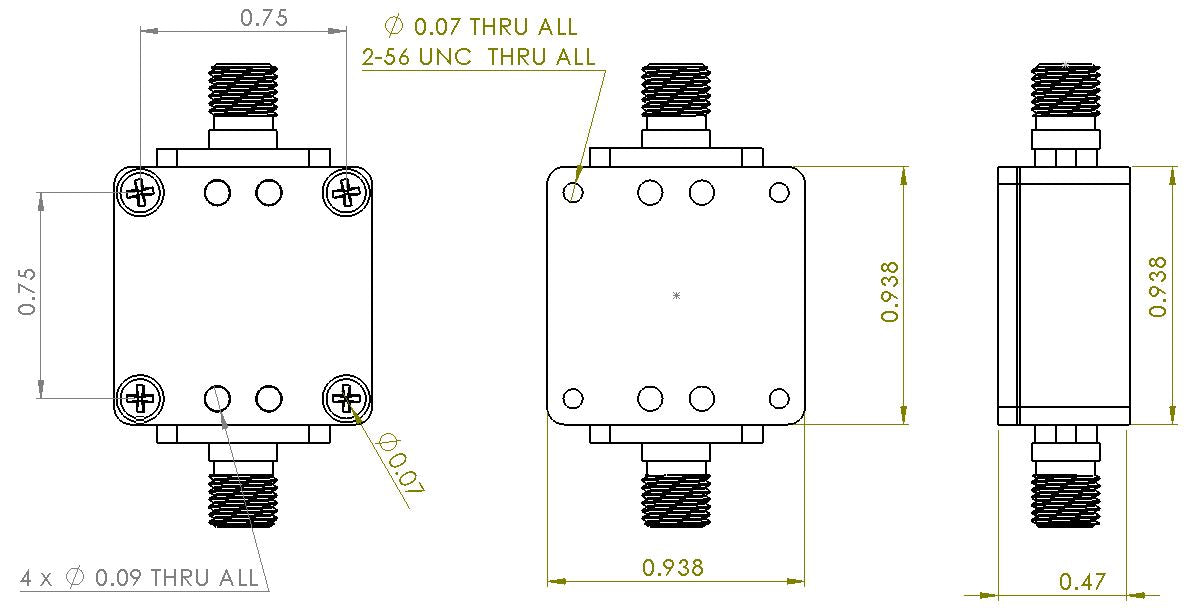

RF Housing Size: 5Ux5U (15/16"x15/16"). Each U is 3/16". Housing height: 0.48". The PCB mounting hole spacing is 0.375" and 0.375" respectively. PCB Inside Clearance to Enclosure Cover is 0.18". This Enclosure is ideal to hold Passive PCB circuit (e.g., Filter, DC Block etc.). SKU#: AK20-010C.

RF Kit include (PCB is not included):

• All CNC Machined Housing and Cover, 1 ea
• SMA 2-Hole Flange Jack Receptacle Connector, 0.086", 0.012" Pin, 2 ea
• 2-56x3/16" SHCS, 4 for SMA Connector
• 2-56x5/32" SHCS, 4 for PCB
• 2-56x3/16" Flat Head Screw (for Cover), 8 ea
