RF Enclosure Kit for 0.020"/0.5mm PCB (size 3/4"X9/16") Passive SMA Connector 0.41" Height

Part Number: 6UED2W6H41SMAP2 is RF Design Enclosure  Kit is for RF prototyping with PCB size of the Rogers PCB (RO4350 or FR4) 9/16"x9/16"x0.02"(or 0.5mm).

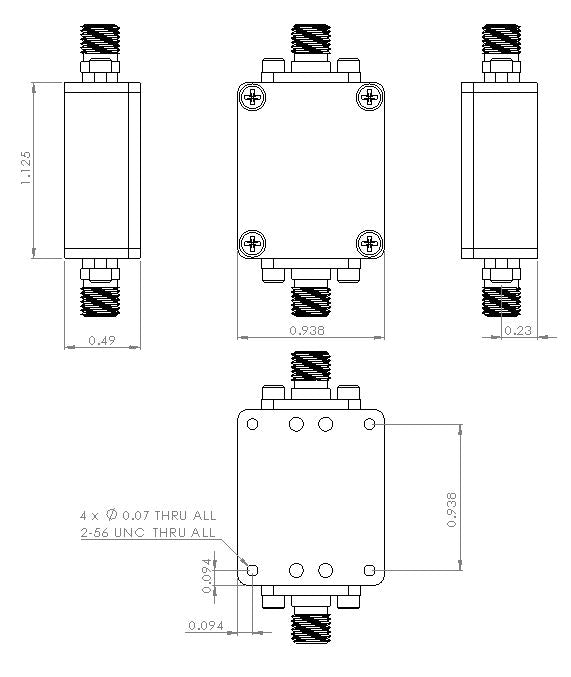

RF Housing Size: 6Ux5U (1-1/8"x15/16"). Each U is 3/16". Housing height: 0.48". The PCB mounting hole spacing is 9/16" and 3/8" respectively. PCB Inside Clearance to Enclosure Cover is 0.19". This Enclosure is ideal to hold Passive PCB circuit (e.g., Filter, DC Block etc.). SKU#: AK20-008F.

RF Kit include (PCB is not included):

• All CNC Machined Housing and Cover, 1 ea
• SMA 2-Hole Flange Jack Receptacle Connector, 0.086", 0.012" Pin, 2 ea
• 2-56x3/16" SHCS, 4 for SMA Connector
• 2-56x5/32" SHCS, 4 for PCB
• 2-56x3/16" Flat Head Screw (for Cover), 4 ea
