Amplifier LNA 0.4dB NF 0.7~6GHz 40dB Gain 20dBm P1dB SMA - 2 Stage High Gain

LNA700M6G2S is a high-linearity, ultra low noise 2 Stage High Gain amplifier in a small 1-1/8”x15/16”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2). At 1.95 GHz, the amplifier typically provides 40 dB gain, +35 dBm OIP3 at a 140 mA bias setting, and 0.4 dB noise figure. The LNA can be biased from a single supply +3V to +5V.

Listed pictures include Product Picture and S Parameter from 700M to 6GHz.

Features:
    * Frequency Range: 700 MHz to 6 GHz;
    * Noise Figure: typical 0.4 dB @ 1.95 GHz
    * Gain: 40 dB Gain at 1.95 GHz
    * Output P1dB: +22 dBm CW
    * Output IP3: +35 dBm
    * DC Voltage: +3 to +5V
    * Operating Current: 140 mA
    * Stainless Steel SMA Female Connector
    * High Quality Isola-Tera RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant

Applications:
    * Repeaters/DAS
    * Mobile Infrastructure
    * LTE/WCDMA/CDMA/GSM
    * General Purpose Wireless
    * SDR & Ham Radio
    * Test Instrumentation

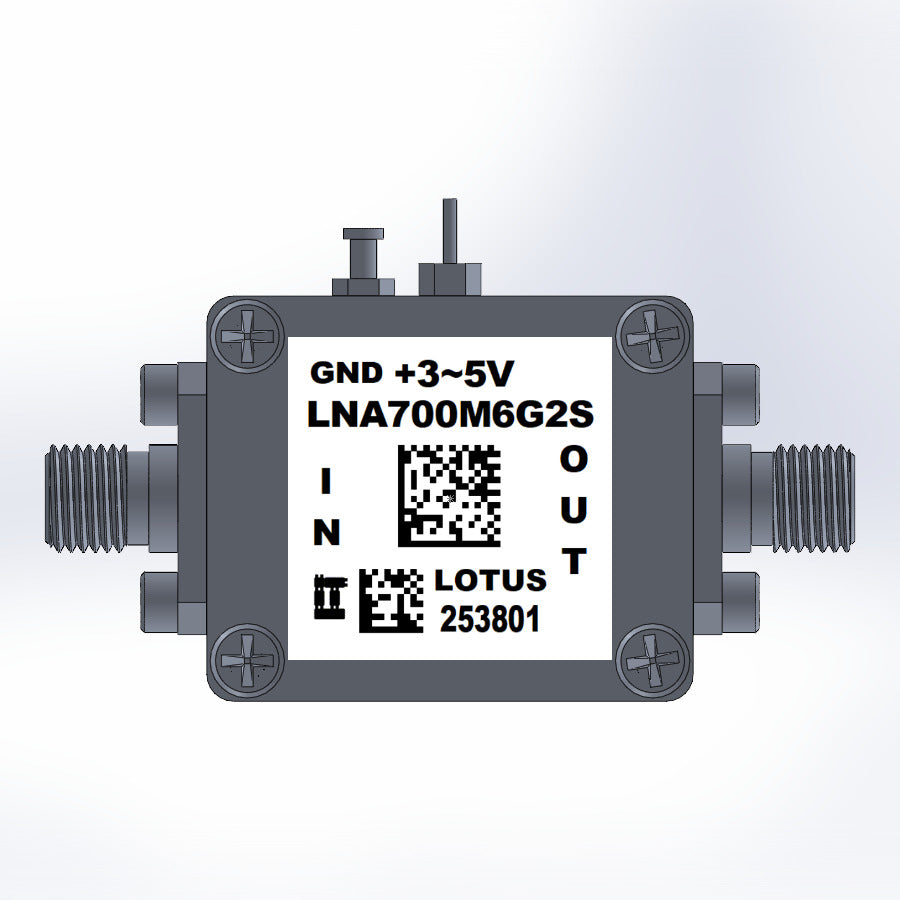

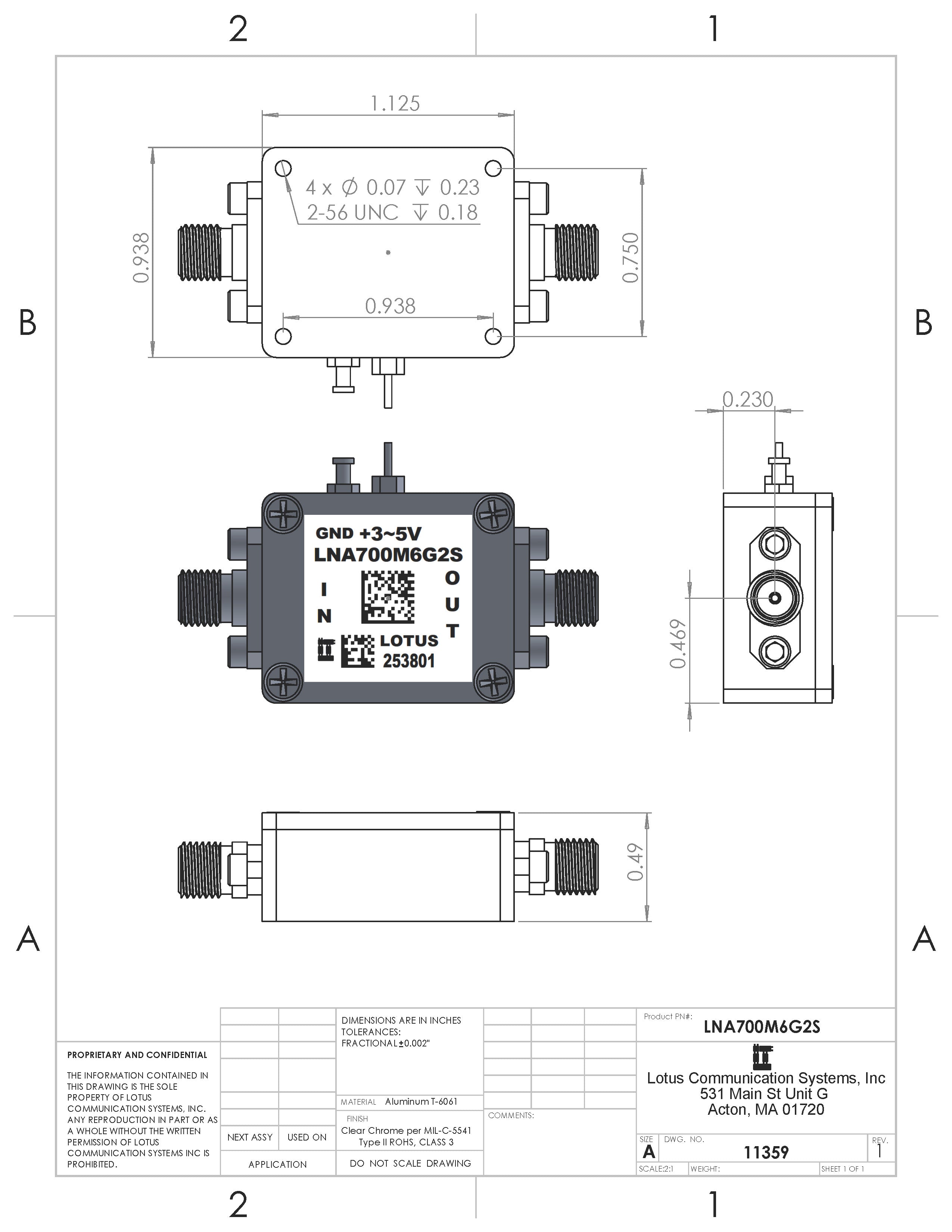

This LNA includes the RF Enclosure as shown in picture.

Click https://cdn.shopify.com/s/files/1/1592/7469/files/LNA700M6G2S.pdf to see detailed specification.

Proudly MADE IN USA.
