Low Noise Amplifier 0.4dB NF 0.7~6GHz 40dB Gain SMA High Gain Wide Voltage

Low Noise Amplifier 0.4dB NF 0.7~6GHz 40dB Gain SMA High Gain Wide Voltage

Low Noise Amplifier 0.4dB NF 0.7~6GHz 40dB Gain SMA High Gain Wide Voltage

Low Noise Amplifier 0.4dB NF 0.7~6GHz 40dB Gain SMA High Gain Wide Voltage

$ 298.00 USD

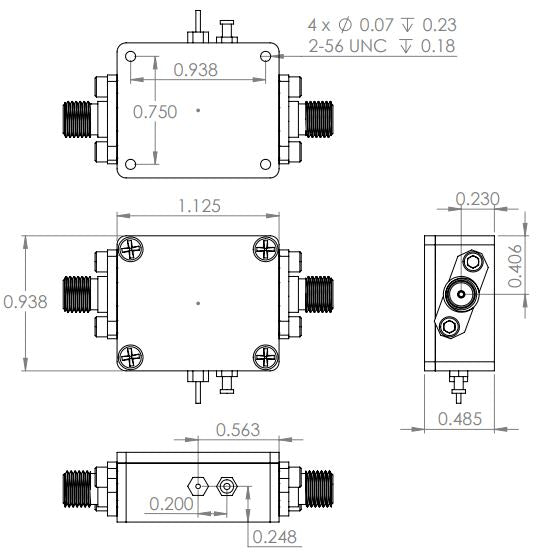

Part Number: LA700M6G2SR is a high-linearity, ultra low noise 2 Stage High Gain amplifier in a small 1-1/8”x15/16”x0.48” shielded RF enclosure. At 1.95 GHz, the amplifier typically provides 40 dB gain, +35 dBm OIP3 at a 140 mA bias setting, and 0.4 dB noise figure. The LNA can be biased from a single supply +5V to +12V.

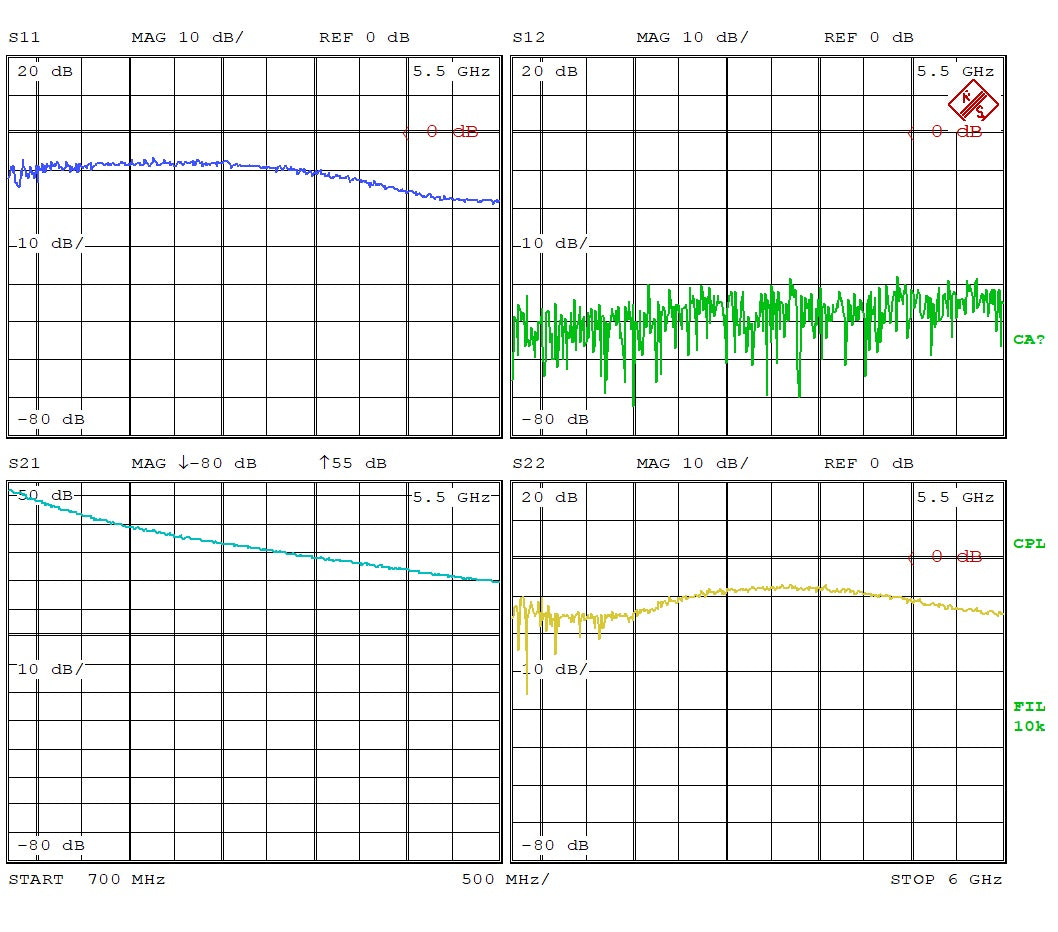

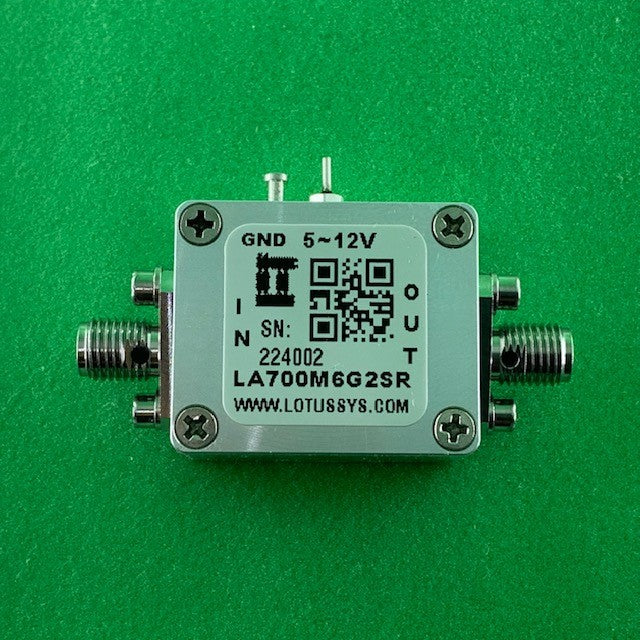

Listed pictures include Product Picture and S Parameter from 700M to 6GHz. SKU#: AK20-016C.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

Collections: Low Noise Amplifier

Features

Frequency Range: 700 MHz to 6 GHz
Noise Figure: typical 0.4 dB @ 1.95 GHz
Gain: 40 dB Gain at 1.95 GHz
Output P1dB: +22 dBm CW
Output IP3: +35 dBm
DC Voltage: +5 to +12V
Operating Current: 140 mA
Stainless Steel SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant
EMI Shield (Waterproof) Option Available (PN#: LA700M6G2SRW)

Applications

Repeaters/DAS
Mobile Infrastructure
LTE/WCDMA/CDMA/GSM
General Purpose Wireless
SDR & Ham Radio
Test Instrumentation

Datasheet & S-Parameter

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

LA700M6G2SR Datasheet

S-Parameter (.S2P)
