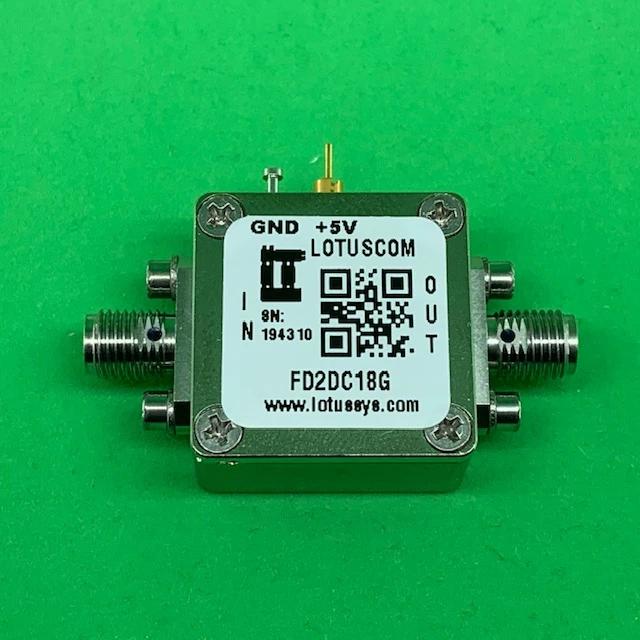

FD2DC18G

Frequency Divider by 2 (DC to 18 GHz)

4 items left

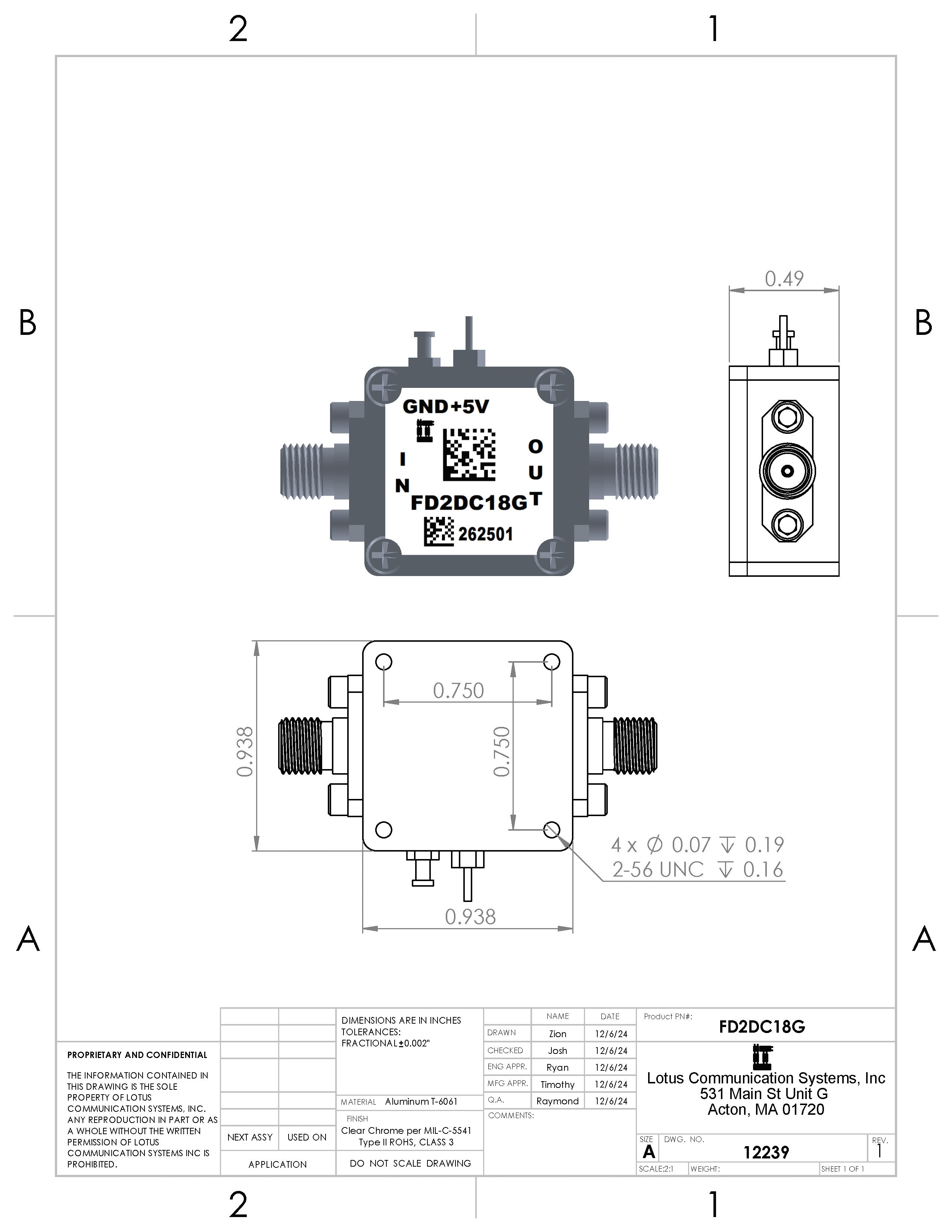

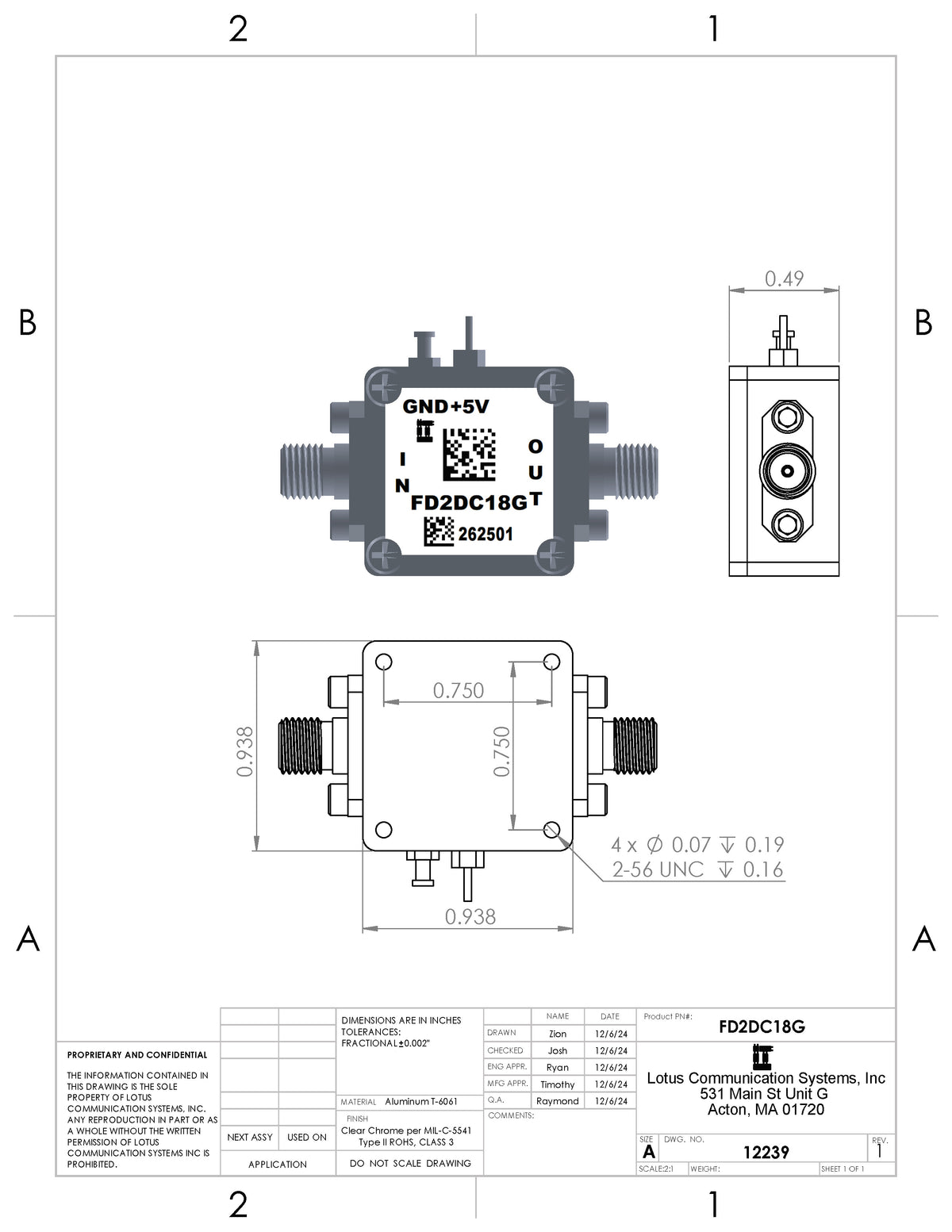

FD2DC18G is a Divide by M=2 Frequency divider with input frequency range from frequency DC to 18 GHz with a single +5 DC Supply. The low additive SSB Phase Noise of -150 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance. Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59".

SKU#: AK20_002E.


Features

  • Frequency Range: DC to 18 GHz
  • Divide by M: (M=2)
  • Operating Temperature -40 to +85C
  • Input Power Range: Min. -15 dBm, Max. +10 dBm
  • Supply current (Icc) typical 78 mA
  • Supply Voltage Vcc=+5 V
  • High Quality Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FD2DC18G Datasheet
