    RF Enclosure Kit-Active 2.92mm Connector (12mil Pin)

    Outstanding Broadband Performance up to 40 GHz!

    Part Number PDF Data PCB Thickness PCB Dim. Enc. Dim. CONN Num. PWR Num. GND Num. Max Curr. Price Order

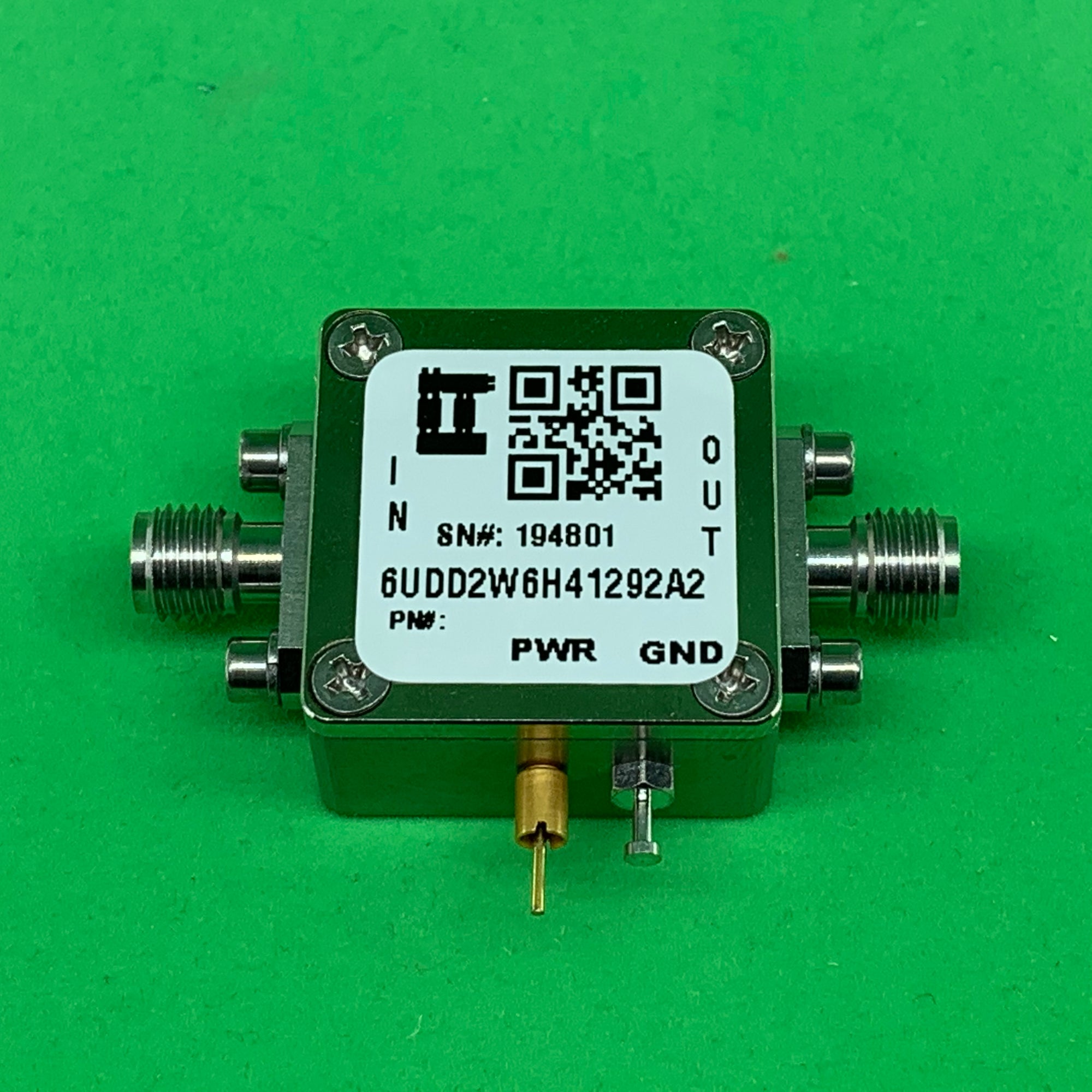

    6UDD2W6H41292A2 PDF 20mil 9/16"X9/16" 15/16"X15/16"X0.41" 2 1 1 5A $196.00 Order

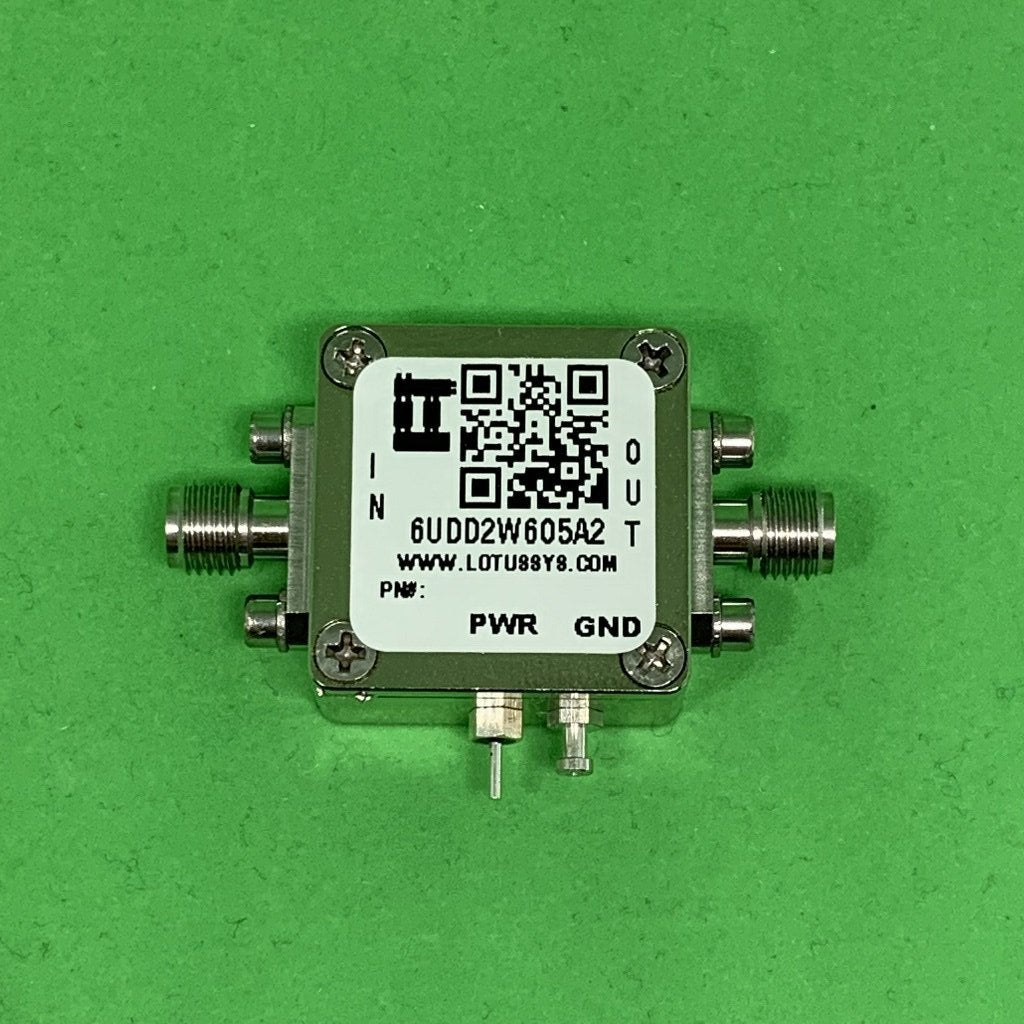

    6UDD2W6O5A2 PDF 20mil 9/16"X9/16" 15/16"X15/16"X0.47" 2 1 1 10A $196.00 Order

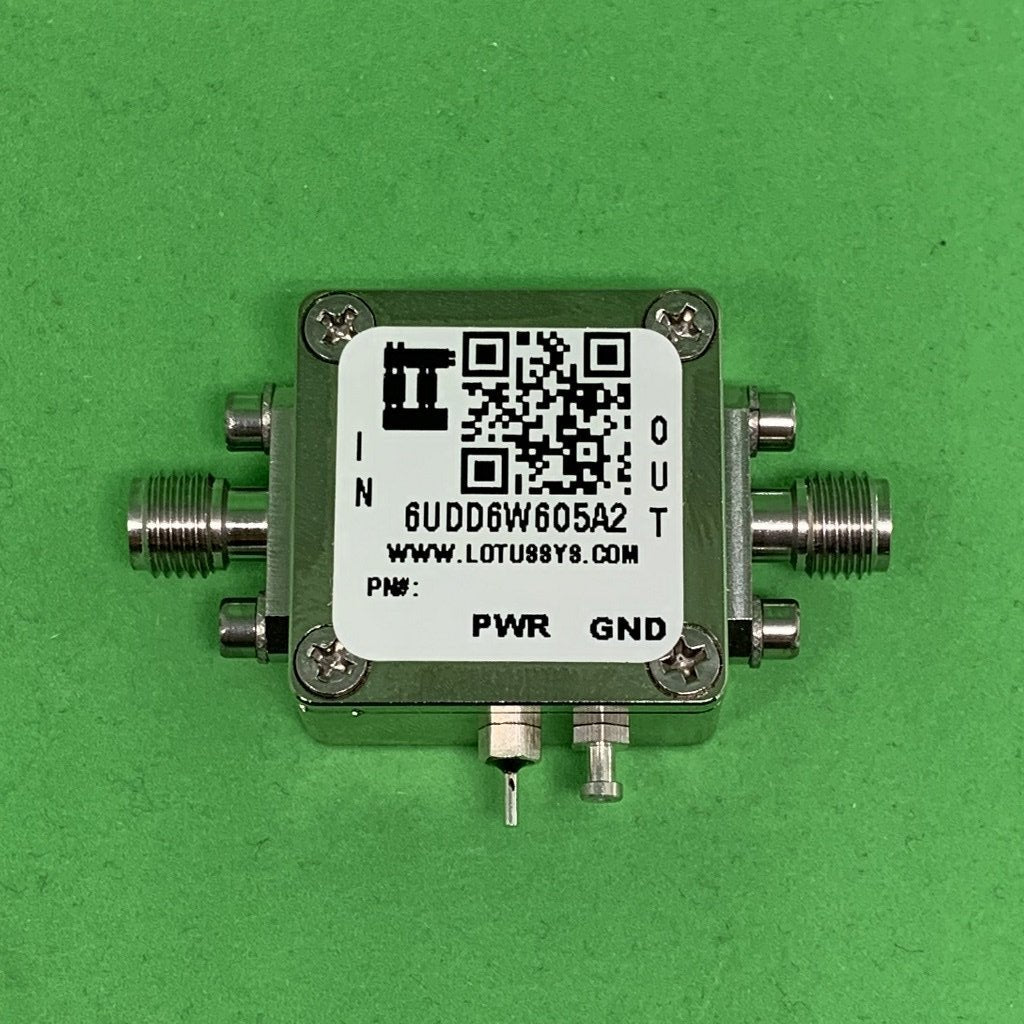

    6UDD6W6O5A2 PDF 62mil 9/16"X9/16" 15/16"X15/16"X0.47" 2 1 1 10A $196.00 Order
    RF Enclosure Kit for 0.020"/0.5mm PCB (size 9/16"X9/16") Active 2.92mm Connector 0.41" Height
    RF Enclosure Kit for 0.020"/0.5mm PCB (size 9/16"X9/16") Active 2.92mm Connector 0.41" Height $ 196.00 USD
    RF Enclosure Kit for 0.062" PCB (size 9/16"X9/16") Active 2.92mm Connector
    RF Enclosure Kit for 0.062" PCB (size 9/16"X9/16") Active 2.92mm Connector $ 208.00 USD
    RF Enclosure Kit for 0.020"/0.5mm PCB (size 9/16"X9/16") Active 2.92mm Connector
    RF Enclosure Kit for 0.020"/0.5mm PCB (size 9/16"X9/16") Active 2.92mm Connector $ 196.00 USD
