Low Noise Amplifier 0.4dB NF 0.7~6GHz 40dB Gain 20dBm P1dB SMA - 2 Stage High Gain
$ 228.00 USD

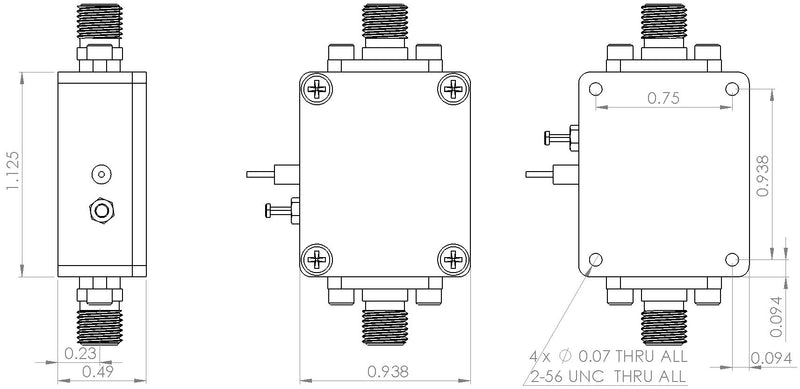

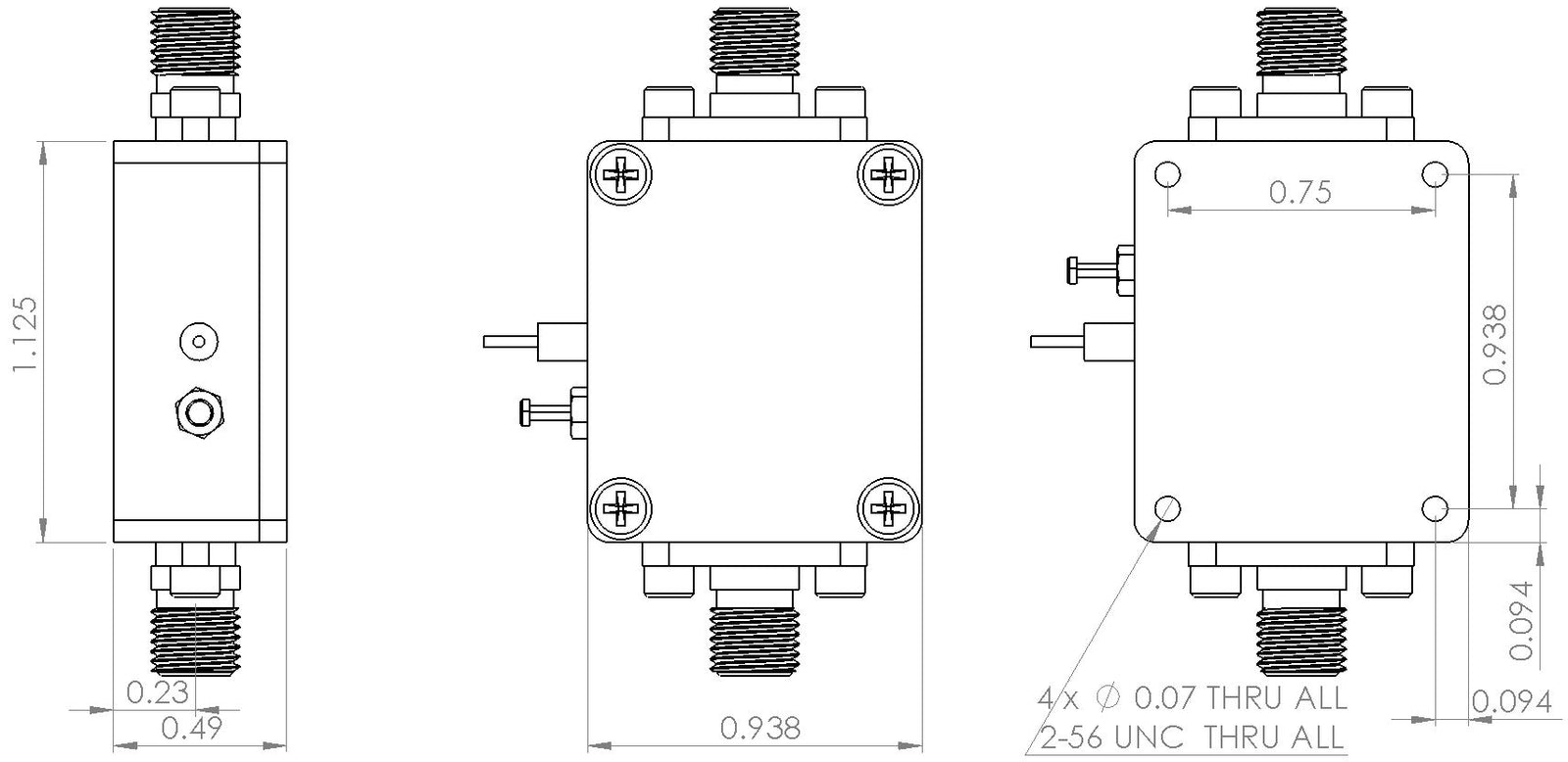

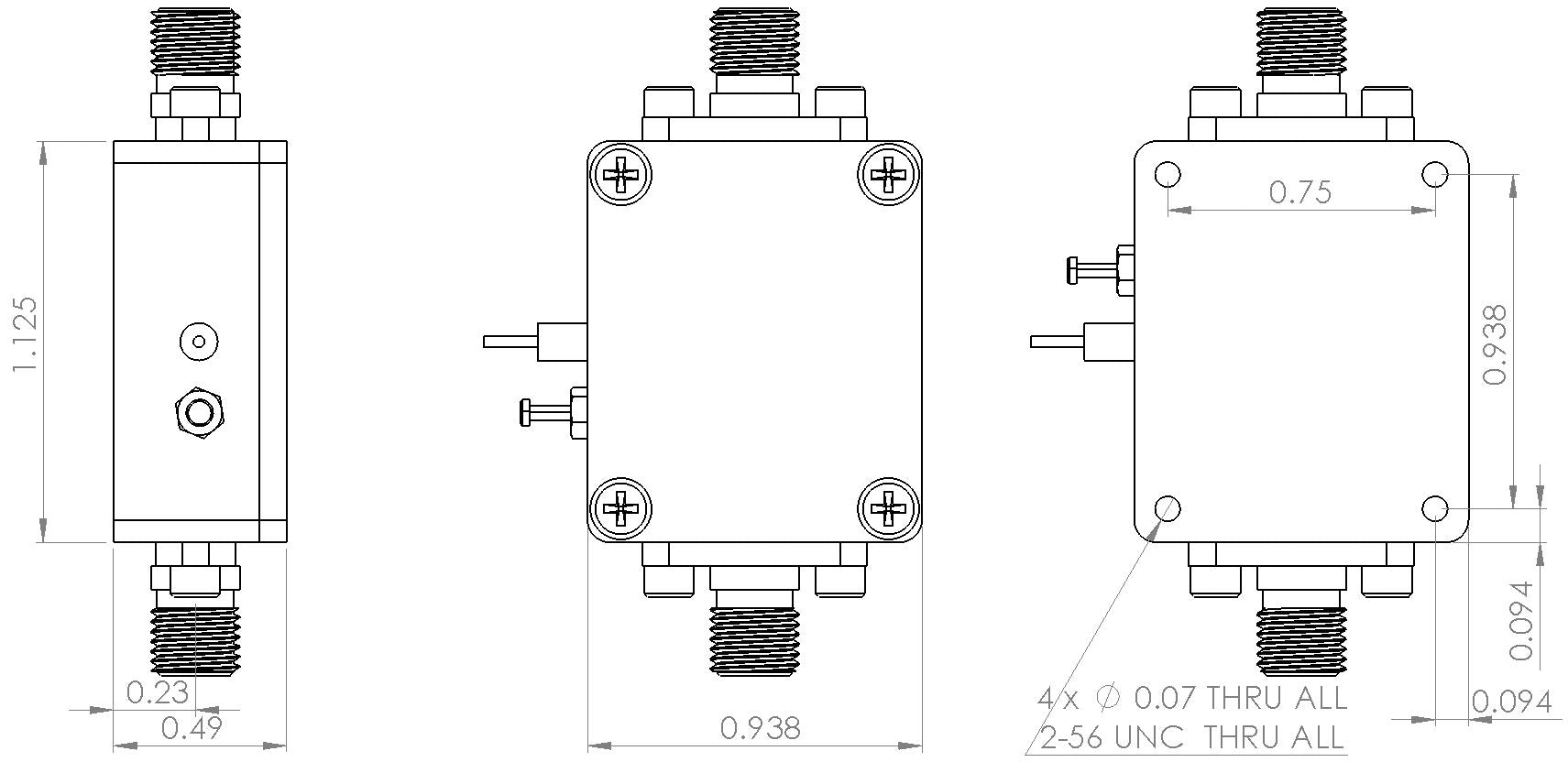

Part Number: LNA700M6G2S is a high-linearity, ultra low noise 2 Stage High Gain amplifier in a small 1-1/8”x15/16”x0.48” shielded RF enclosure (PN: 6UED2W6S1A2). At 1.95 GHz, the amplifier typically provides 40 dB gain, +35 dBm OIP3 at a 140 mA bias setting, and 0.4 dB noise figure. The LNA can be biased from a single supply +3V to +5V.

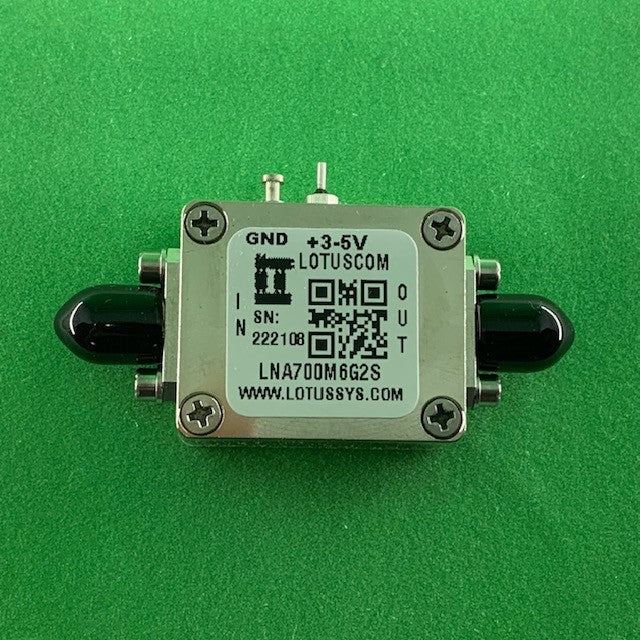

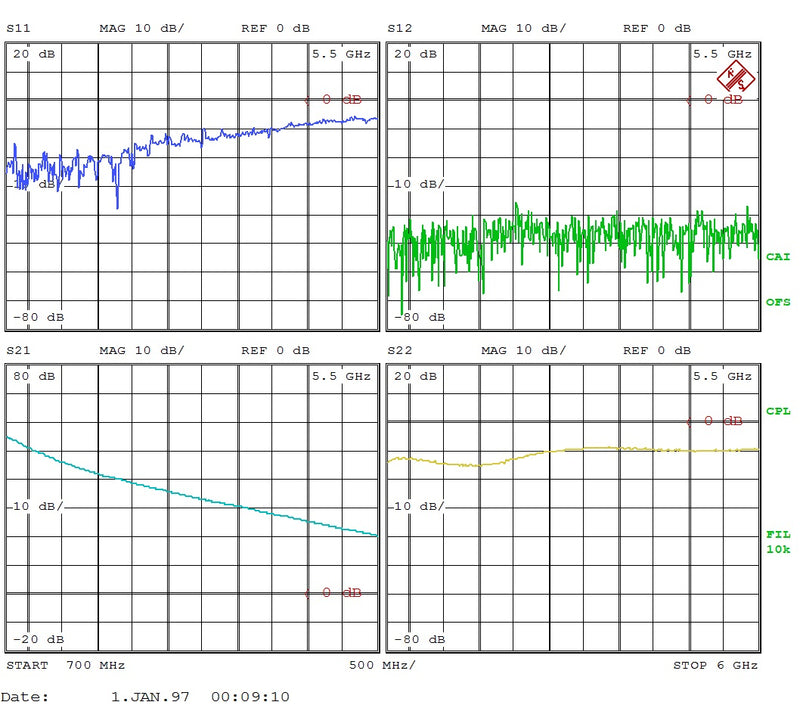

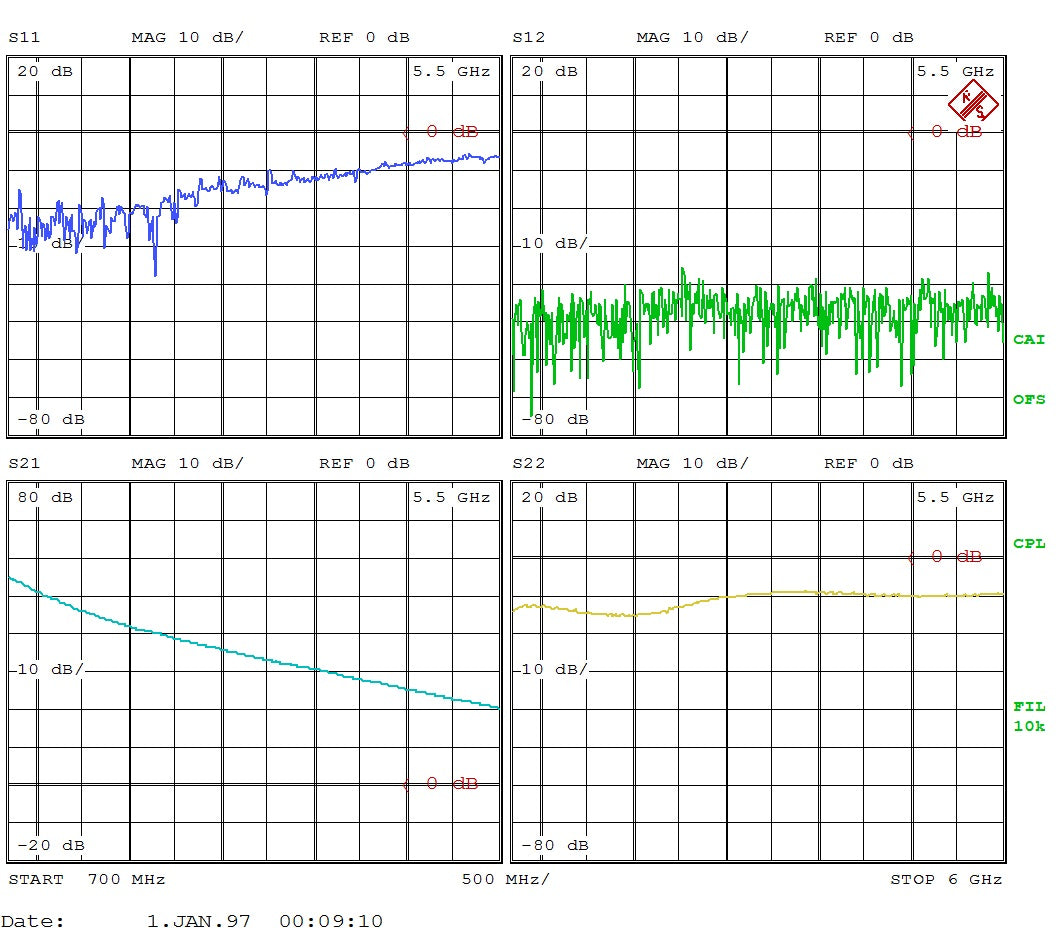

Listed pictures include Product Picture and S Parameter from 700M to 6GHz. SKU#: AK20-020B. Same LNA with wide voltage range and EMI shield option is available. The part number is LA700M6G2SR.
Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.
Features
- Frequency Range: 700 MHz to 6 GHz
- Noise Figure: typical 0.4 dB @ 1.95 GHz
- Gain: 40 dB Gain at 1.95 GHz
- Output P1dB: +22 dBm CW
- Output IP3: +35 dBm
- DC Voltage: +3 to +5V
- Operating Current: 140 mA
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Repeaters/DAS
- Mobile Infrastructure
- LTE/WCDMA/CDMA/GSM
- General Purpose Wireless
- SDR & Ham Radio
- Test Instrumentation
Resources (PDF Datasheet)
LNA700M6G2S Datasheet
