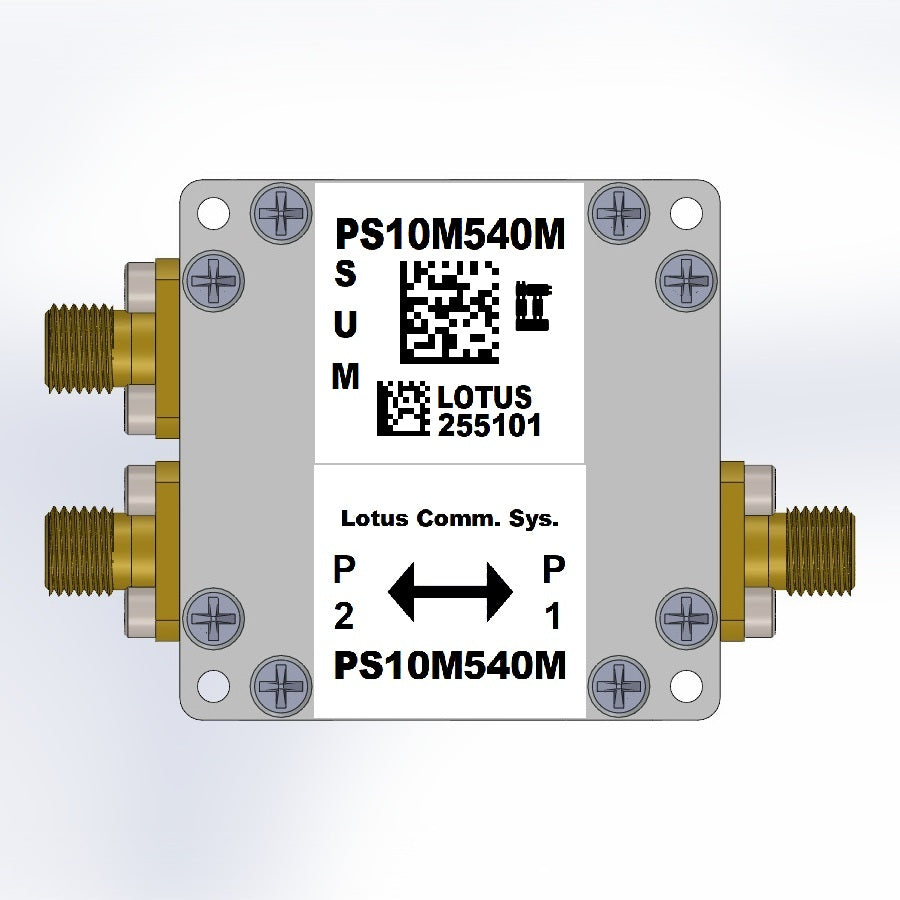

  • Power Splitter/Combiner 2 Way 50Ω 10 to 540 MHz 15 Watt

    Part Number: PS10M540M is a wideband, low insertion loss (0.5dB typical) 2 Way - 0 degree 10 to 540 MHz power splitter/combiner.  It has excellent amplitude unbalance with 0.1dB typical, high power input 15 Watts, and good isolation (20 dB typical).

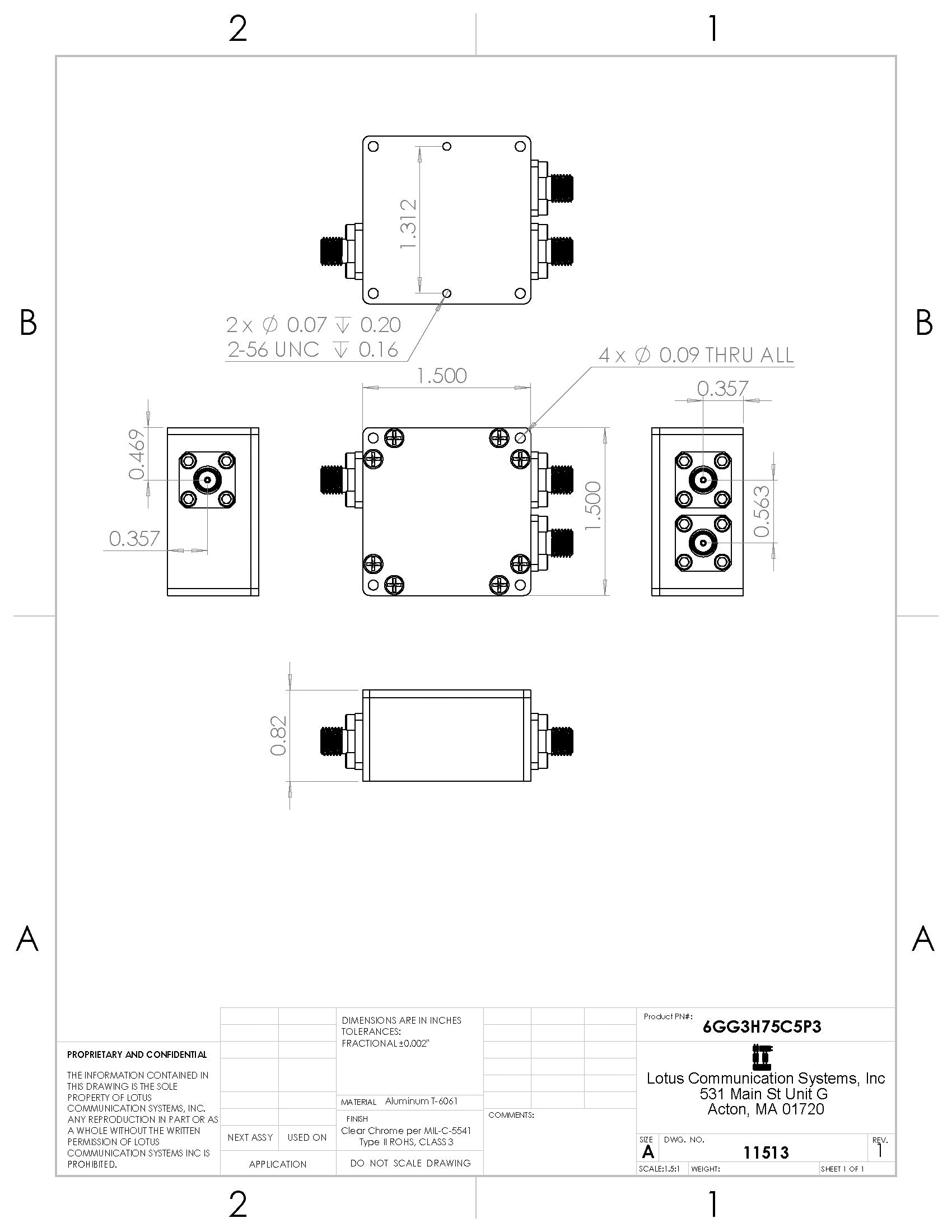

    The PS10M540M in a small 1.5”x1.5”x3/4” shielded RF enclosure (PN: 6UGG3W6H75SMAP3).  SKU#: AK20-001A.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    2 items left

    Features

    • Frequency Range: 10 to 540 MHz
    • Low Insertion Loss: 0.5 dB typical
    • Excellent Amplitude Unbalance: 0.1 dB typical
    • High Power Input: 15 Watt
    • High Power Combiner: 3 Watt Each Port
    • Good Isolation: 20 dB typical
    • Operating Temperature: -40 to 65°C
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Test Instrumentation
    • VHF/UHF
    • General Purpose Wireless
    • Radar & VSAT
    • SDR & Ham Radio

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png PS10M540M Datasheet
