4 GHz Phase Locked Oscillator 10 MHz Internal Ref. Phase Noise -92 dBc/Hz, SMA

4 items left

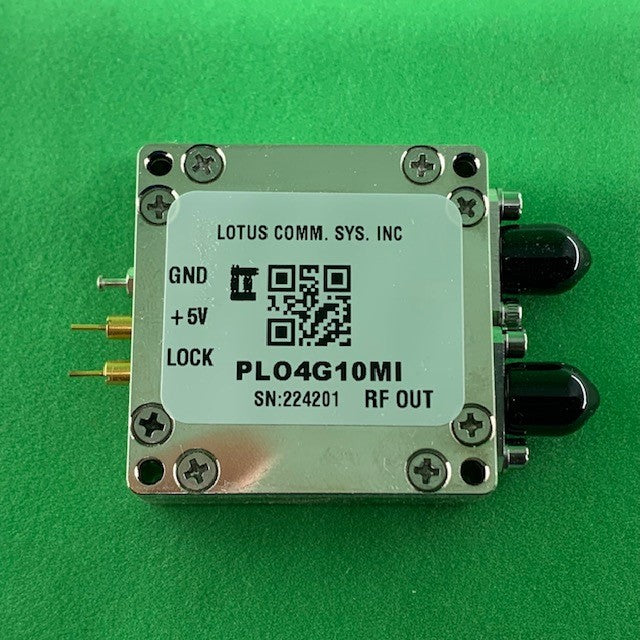

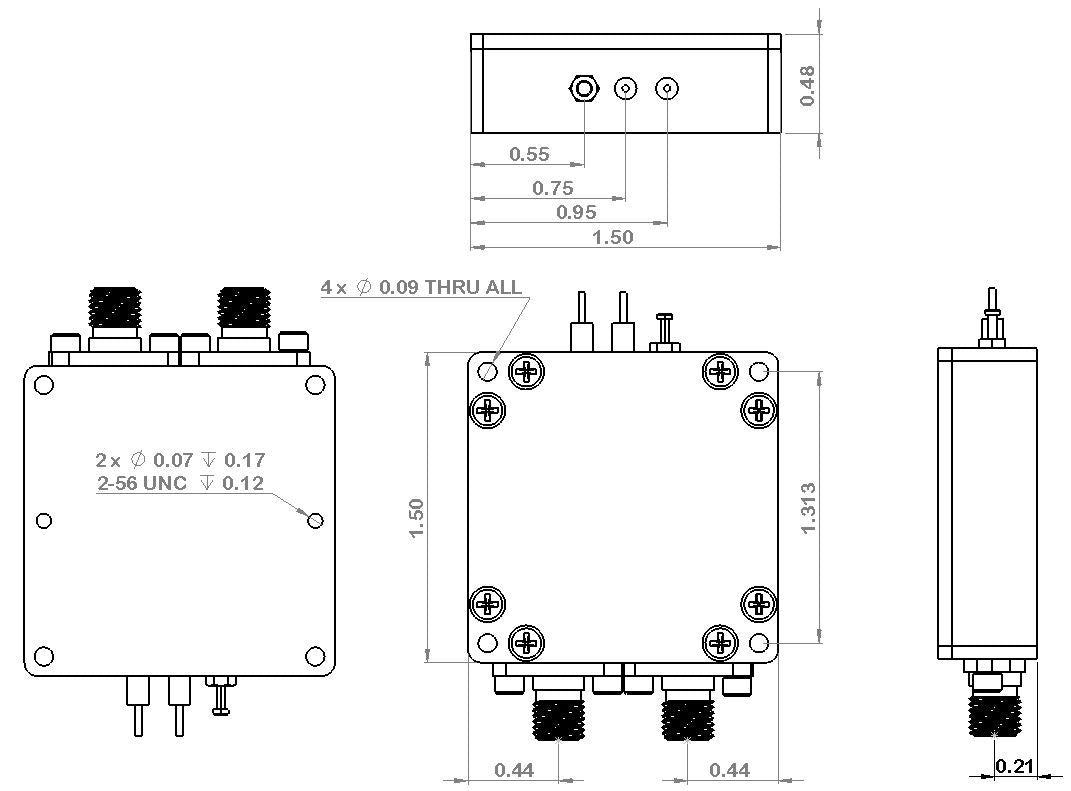

Part Number: PLO4G10MI is a 4 GHz Phase Locked Oscillator with an integrated internal 10 MHz reference oscillator (TCXO high precision 0.28ppm).  The PLO features excellent phase noise performance of -92 dBc/Hz @ 10kHz offset.  Supply Voltage is +5V DC with low power consumption (<0.6 watt).  This PLO is RoHS complaint with compact coaxial package (1.5”x1.5”x0.48”) and Nickel plated.  It supports SMA connector and DC Bias Pins and 3.3V Lock Detect pin to indicate out-of-lock condition.  The reference oscillator has an output power level of +6 dBm and 2nd harmonic output of -20dBc typical.  It only weights 1.5 Oz (42g).

 SKU#: AK20-010F.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.


  • Frequency Output: 4 GHz
  • Internal 10 MHz Reference Oscillator (TCXO 0.28ppm)

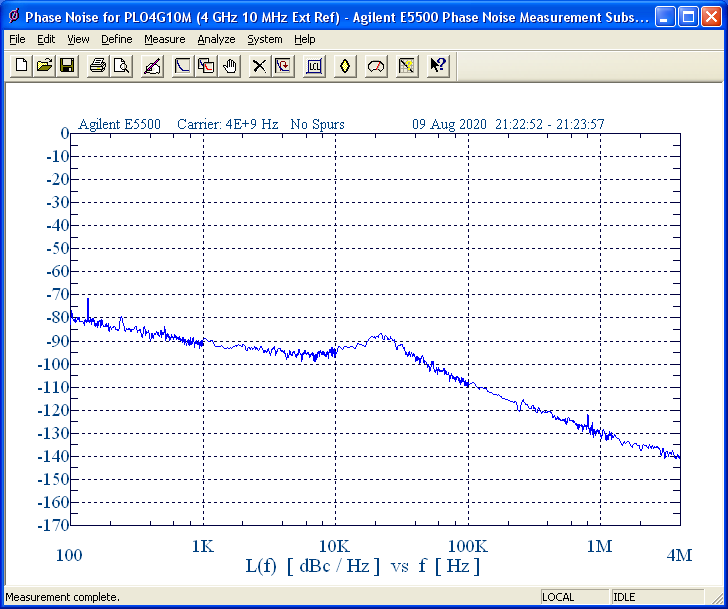

  • -92 dBc/Hz @ 10kHz Offset
  • Pout +6 dBm
  • Harmonics -20 dBc
  • Single DC Voltage Supply: +5V
  • Operating Current: 100mA
  • Operating Temperature: -40°C to 85°C
  • RF OUT are AC-coupled Internally
  • ROHS Compliant


  • Test Instrumentation
  • Phase Locked Loop
  • Frequency Synthesizer
  • Wireless & Optical Communication


http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png PLO4G10MI Datasheet
