2 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output

2 items left

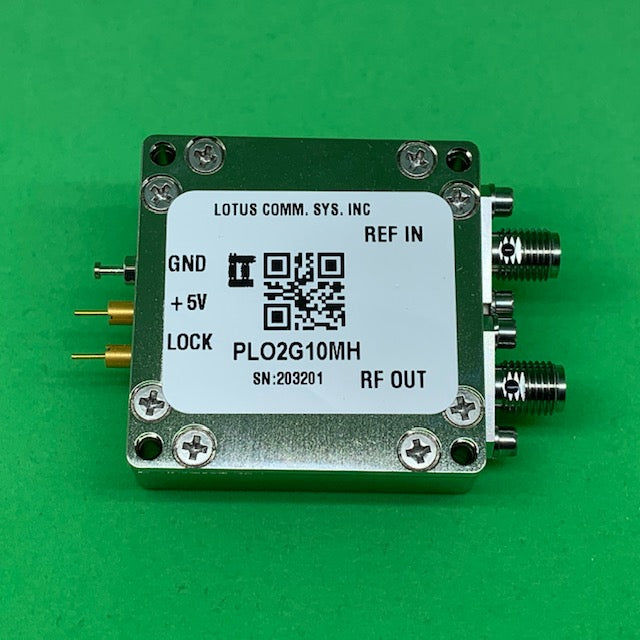

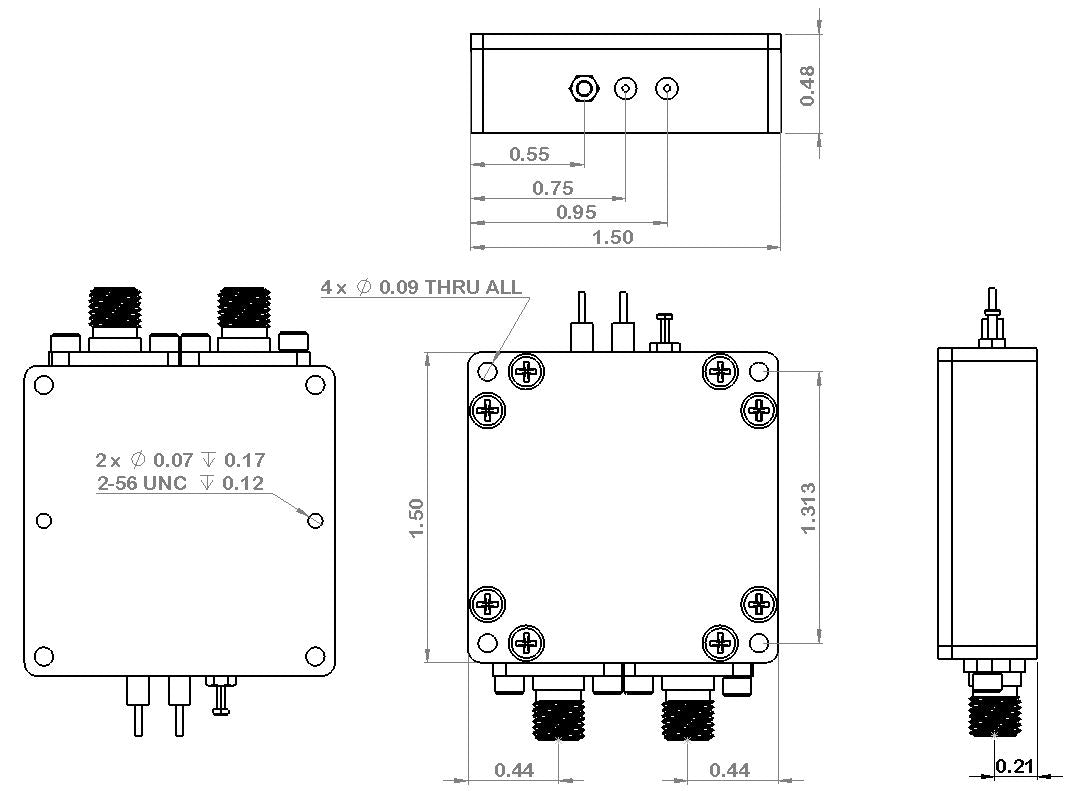

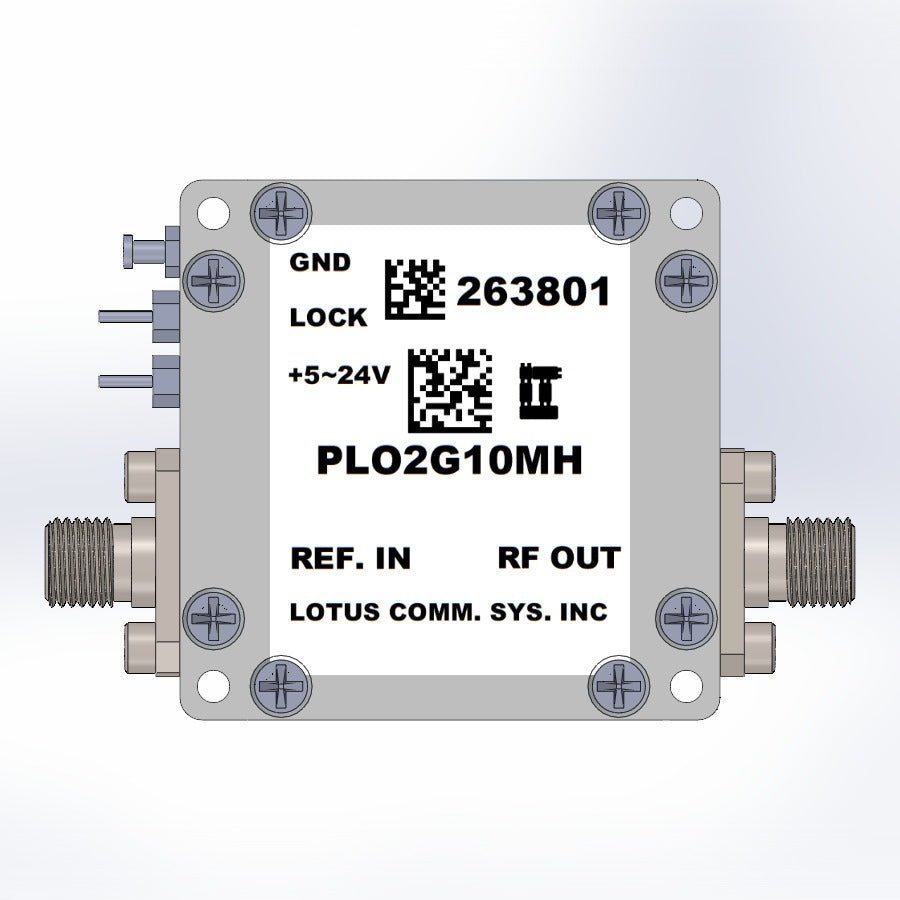

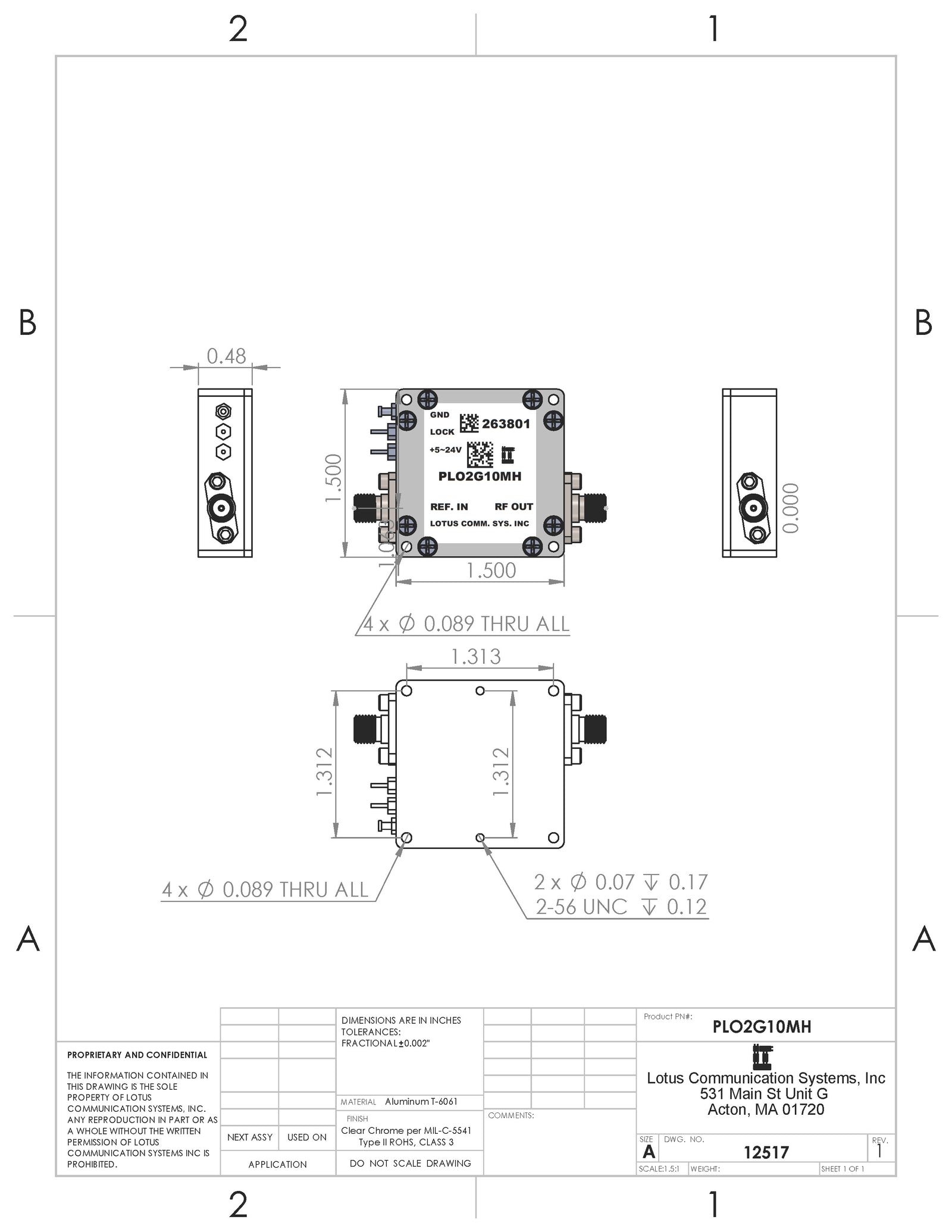

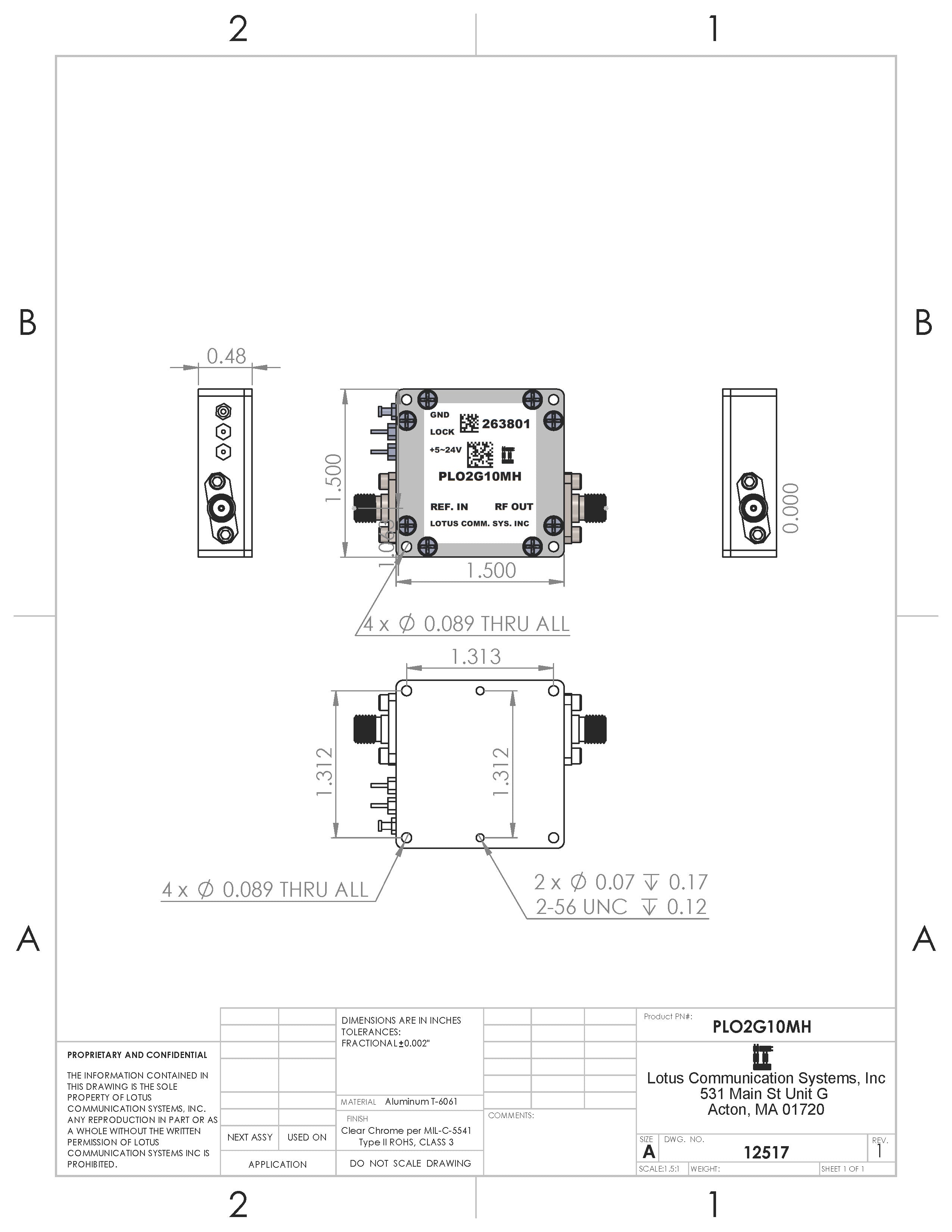

Part Number: PLO2G10MH is a 2 GHz Phase Locked Oscillator with an external 10 MHz reference oscillator.  The PLO features excellent phase noise performance of -100 dBc/Hz @ 10kHz offset.  Supply Voltage is +5V DC with low power consumption (<1 watt).  This PLO is RoHS complaint with compact coaxial package (1.5”x1.5”x0.48”) and Nickel plated.  It supports SMA connector and DC Bias Pins and 3.3V Lock Detect pin to indicate out-of-lock condition.  The reference oscillator has an high output power level of +20 dBm and 2nd harmonic output of -20dBc typical.  It only weights 1.5 Oz (42g).

SKU#: AK20-010F.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.


  • Frequency Output: 2 GHz
  • External 10 MHz Reference Oscillator

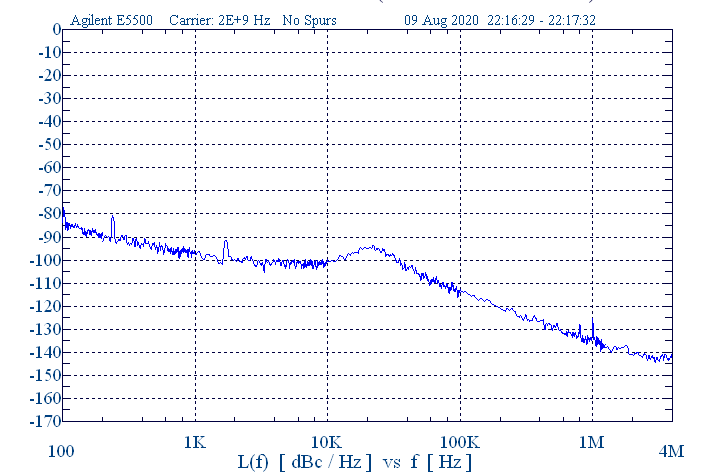

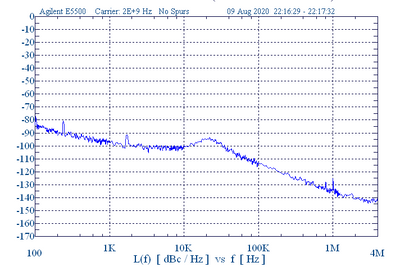

  • -100 dBc/Hz @ 10kHz Offset
  • Pout +20 dBm (lower level can be customized)
  • Harmonics -20 dBc
  • Single DC Voltage Supply: +5V
  • Operating Current: 170mA
  • Operating Temperature: -40°C to 85°C
  • REF_IN and RF_OUT are AC-coupled Internally
  • ROHS Compliant


  • Test Instrumentation
  • Phase Locked Loop
  • Frequency Synthesizer
  • Wireless & Optical Communication


http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png PLO2G10MH Datasheet
