14 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output

4 items left

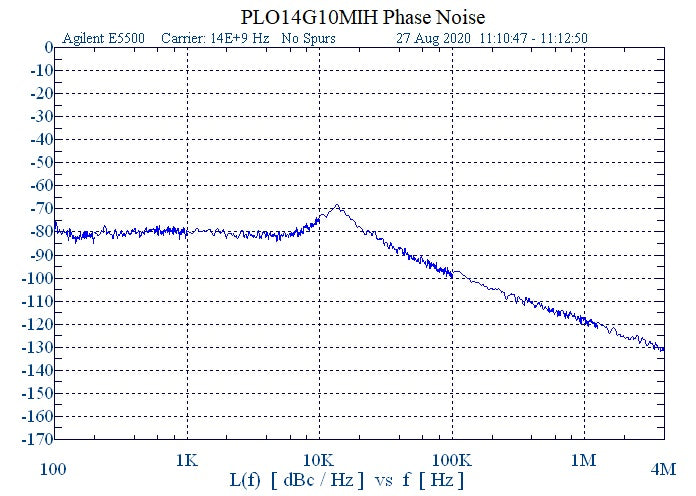

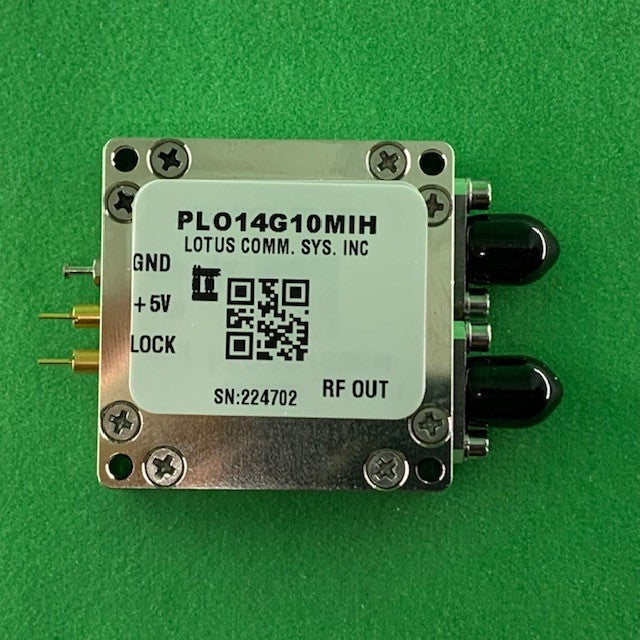

Part Number: PLO14G10MIH is a 14 GHz Phase Locked Oscillator with an internal 10 MHz reference oscillator (TCXO 0.28ppm).  The PLO features excellent phase noise performance of -75 dBc/Hz @ 10kHz offset.  Supply Voltage is +5V DC with low power consumption (<2 watt).  This PLO is RoHS complaint with compact coaxial package (1.5”x1.5”x0.48”) and Nickel plated.  It supports SMA connector and DC Bias Pins and 3.3V Lock Detect pin to indicate out-of-lock condition.  The reference oscillator has an high output power level of +12 dBm and 2nd harmonic output of -20dBc typical.  It only weights 1.5 Oz (42g).

SKU#: AK20-016F.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.


  • Frequency Output: 14 GHz
  • Internal 10 MHz Reference Oscillator (TCXO 0.28ppm)
  • -75 dBc/Hz @ 10kHz Offset
  • Pout +12 dBm (lower level can be customized)
  • Harmonics -20 dBc
  • Single DC Voltage Supply: +5V
  • Operating Current: 360mA
  • Operating Temperature: -40°C to 85°C
  • RF_OUT are AC-coupled Internally
  • ROHS Compliant


  • Test Instrumentation
  • Phase Locked Loop
  • Frequency Synthesizer
  • Wireless & Optical Communication


http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png PLO14G10MIH Datasheet
