  • 13 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output

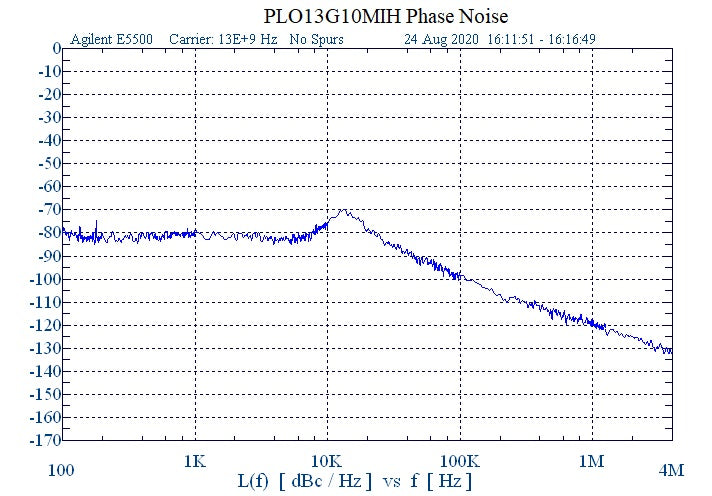

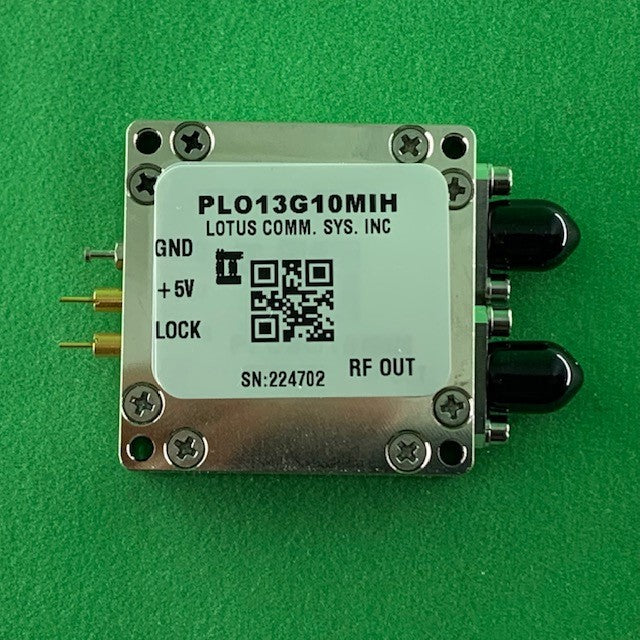

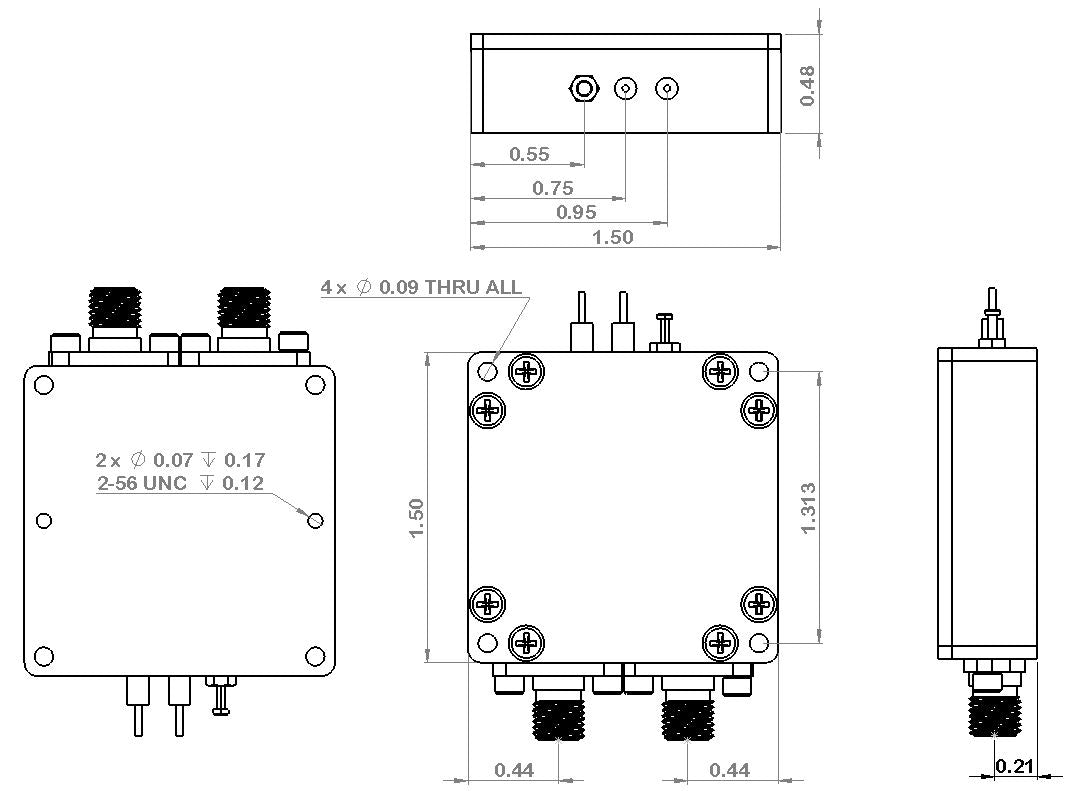

    Part Number: PLO13G10MIH is a 13 GHz Phase Locked Oscillator with an internal 10 MHz reference oscillator (TCXO 0.28ppm).  The PLO features excellent phase noise performance of -77 dBc/Hz @ 10kHz offset.  Supply Voltage is +5V DC with low power consumption (<2 watt).  This PLO is RoHS complaint with compact coaxial package (1.5”x1.5”x0.48”) and Nickel plated.  It supports SMA connector and DC Bias Pins and 3.3V Lock Detect pin to indicate out-of-lock condition.  The reference oscillator has an high output power level of +12 dBm and 2nd harmonic output of -20dBc typical.  It only weights 1.5 Oz (42g).

    SKU#: AK20-016F.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

    4 items left

    Features

    • Frequency Output: 13 GHz
    • Internal 10 MHz Reference Oscillator (TCXO 0.28ppm)
    • -77 dBc/Hz @ 10kHz Offset
    • Pout +12 dBm (lower level can be customized)
    • Harmonics -20 dBc
    • Single DC Voltage Supply: +5V
    • Operating Current: 360mA
    • Operating Temperature: -40°C to 85°C
    • RF OUT are AC-coupled Internally
    • ROHS Compliant

    Applications

    • Test Instrumentation
    • Phase Locked Loop
    • Frequency Synthesizer
    • Wireless & Optical Communication

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png PLO13G10MIH Datasheet
