11 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output

11 GHz Phase Locked Oscillator 10 MHz Internal Ref. High RF Output

$ 2,385.00 USD

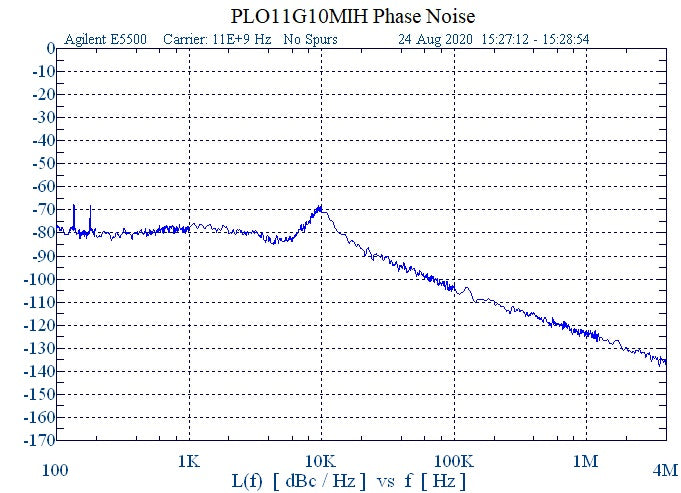

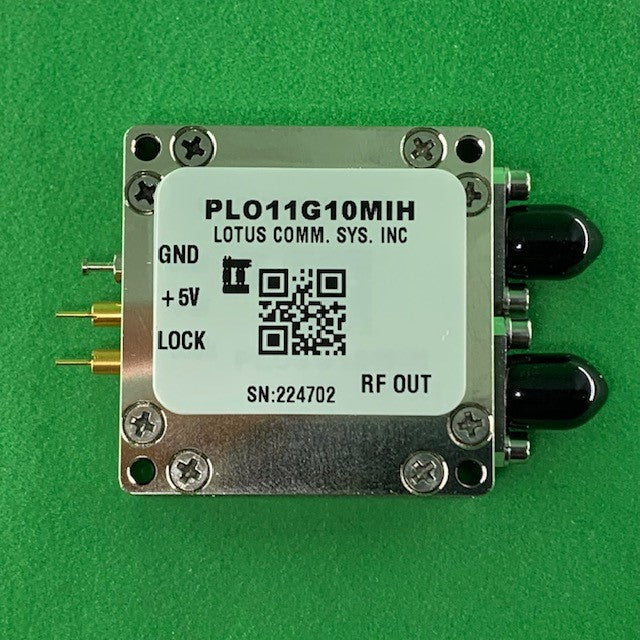

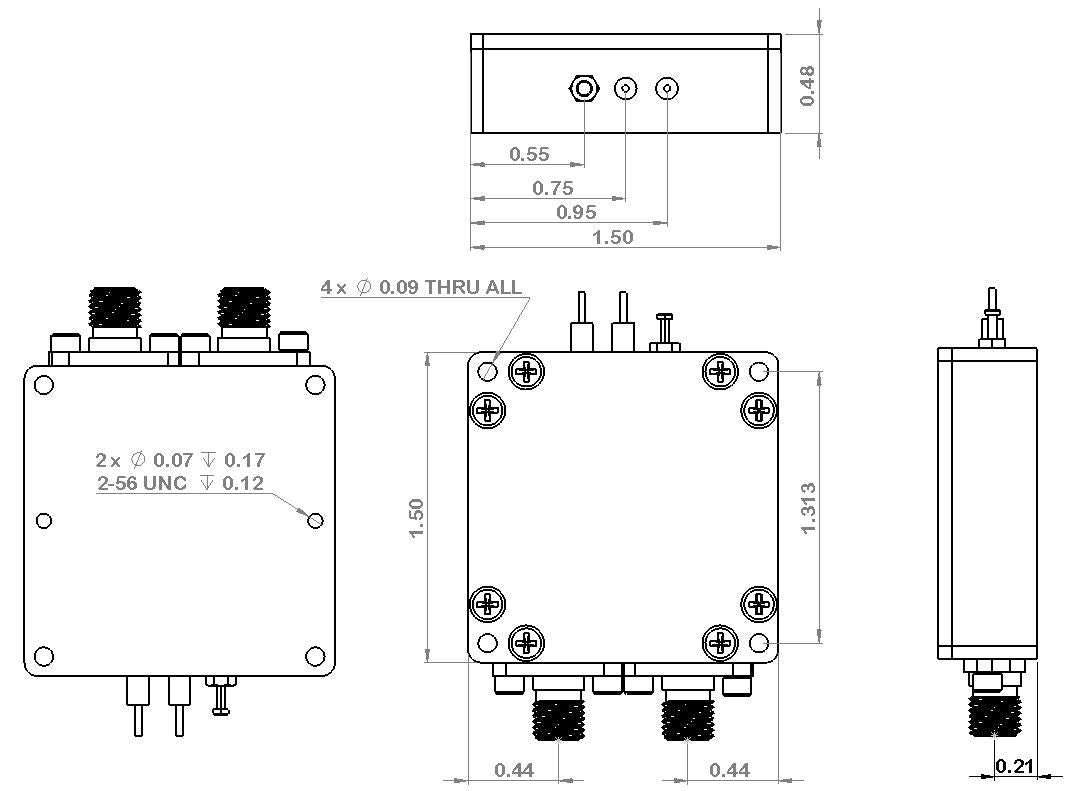

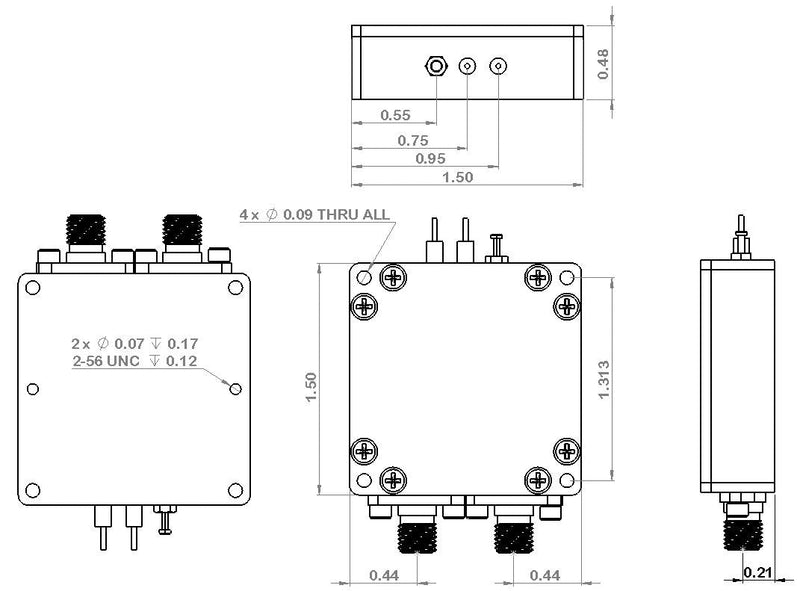

Part Number: PLO11G10MIH is a 11 GHz Phase Locked Oscillator with an internal 10 MHz reference oscillator (TCXO 0.28ppm). The PLO features excellent phase noise performance of -70 dBc/Hz @ 10kHz offset. Supply Voltage is +5V DC with low power consumption (<2 watt). This PLO is RoHS complaint with compact coaxial package (1.5”x1.5”x0.48”) and Nickel plated. It supports SMA connector and DC Bias Pins and 3.3V Lock Detect pin to indicate out-of-lock condition. The reference oscillator has an high output power level of +12 dBm and 2^nd harmonic output of -20dBc typical. It only weights 1.5 Oz (42g).

SKU#: AK20-016F.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

Collections: Phase Locked Oscillator
