10 GHz Phase Locked Oscillator 10 MHz External Ref. High RF Output
$ 2,557.50 USD

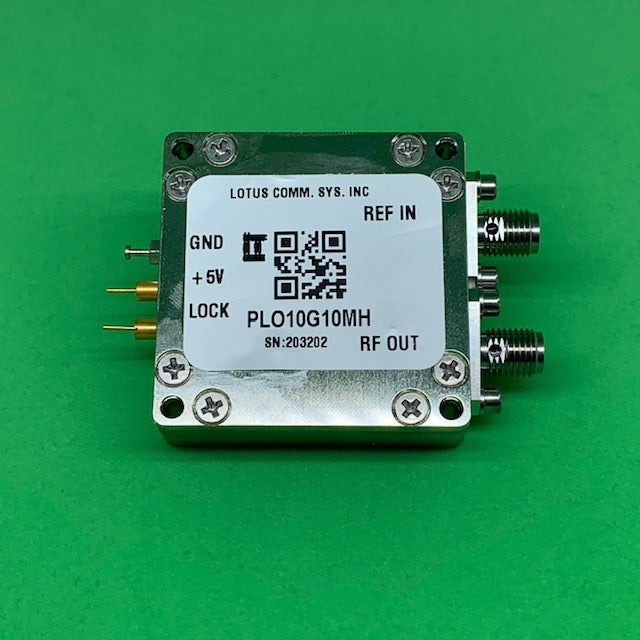

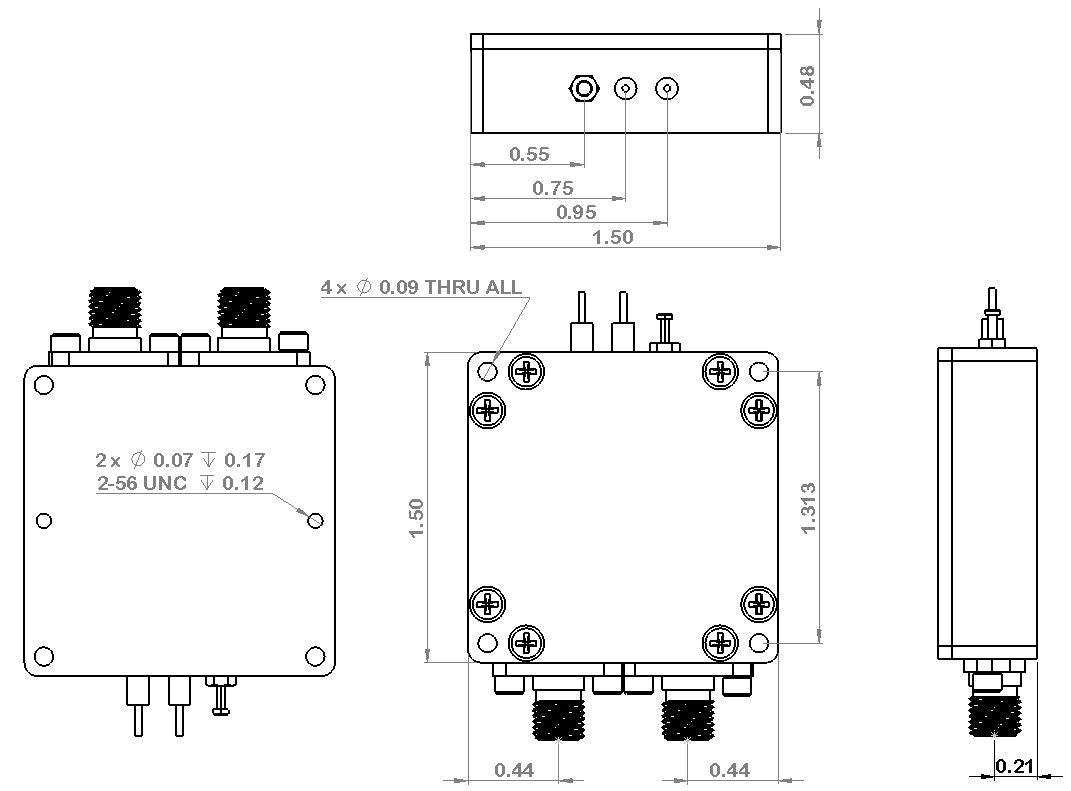

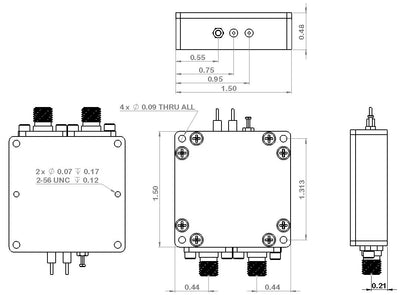

Part Number: PLO10G10MH is a 10 GHz Phase Locked Oscillator with an external 10 MHz reference oscillator. The PLO features excellent phase noise performance of -72 dBc/Hz @ 10kHz offset. Supply Voltage is +5V DC with low power consumption (<2 watt). This PLO is RoHS complaint with compact coaxial package (1.5”x1.5”x0.48”) and Nickel plated. It supports SMA connector and DC Bias Pins and 3.3V Lock Detect pin to indicate out-of-lock condition. The reference oscillator has an high output power level of +12 dBm and 2nd harmonic output of -20dBc typical. It only weights 1.5 Oz (42g).
SKU#: AK20-010F.
Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.
Features
- Frequency Output: 10 GHz
- External 10 MHz Reference Oscillator

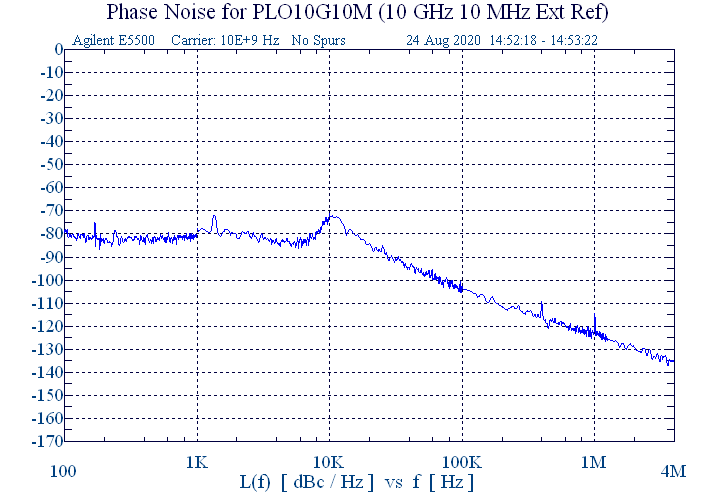

- -72 dBc/Hz @ 10kHz Offset
- Pout +12 dBm (lower level can be customized)
- Harmonics -20 dBc
- Single DC Voltage Supply: +5V
- Operating Current: 360mA
- Operating Temperature: -40°C to 85°C
- REF_IN and RF_OUT are AC-coupled Internally
- ROHS Compliant
Applications
- Test Instrumentation
- Phase Locked Loop
- Frequency Synthesizer
- Wireless & Optical Communication
Resources
PLO10G10MH Datasheet
