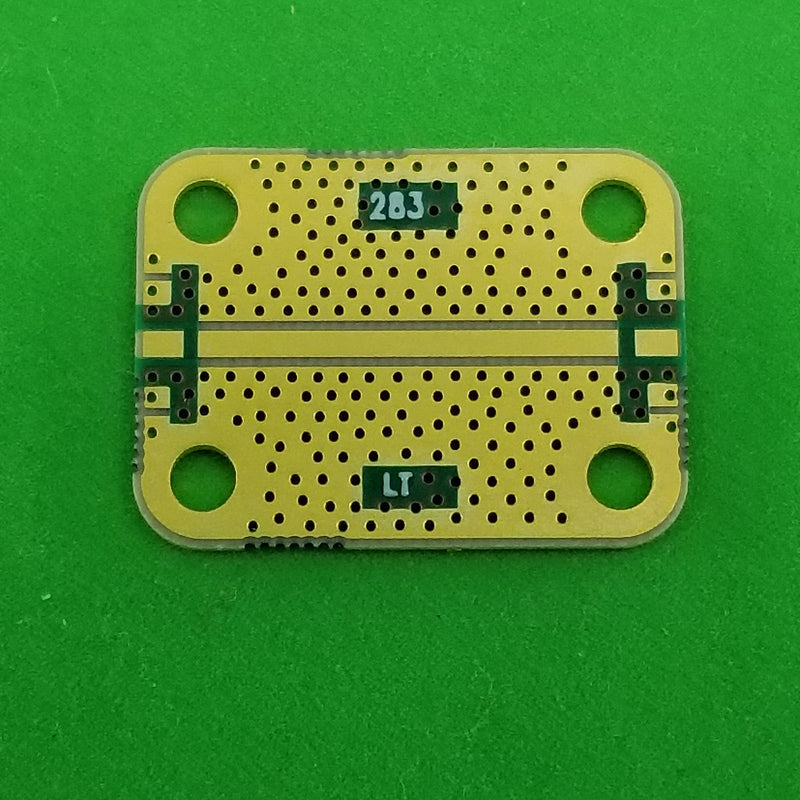

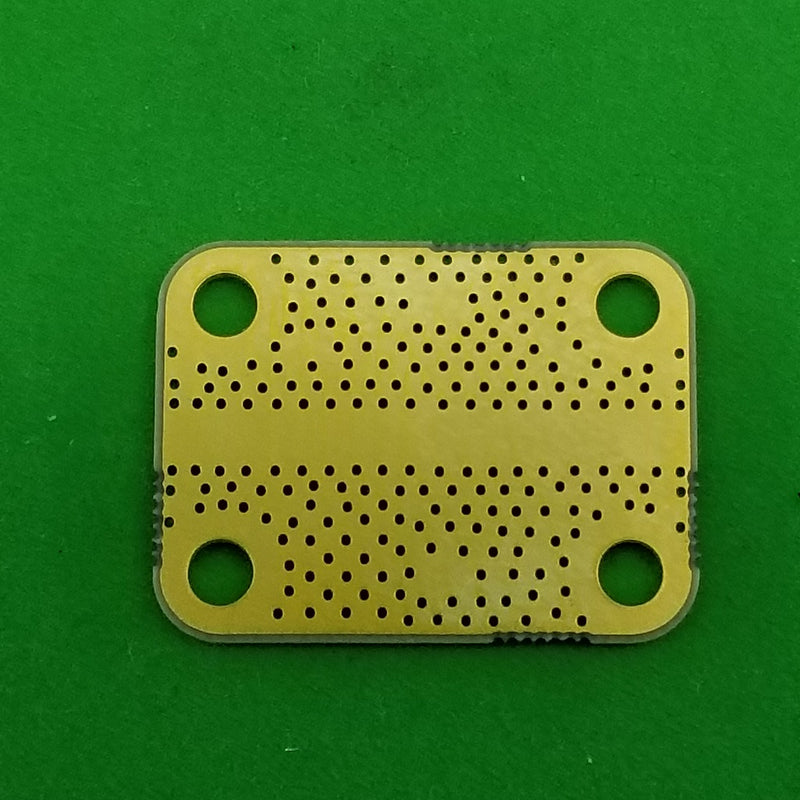

  • Develop PCB Grounded Coplanar Waveguide (0.75"x0.5625"x0.02") 38Mil Trace

    PN: PCBCPWG38MDC.  One Develop PCB Coplanar Waveguide with 50 Ohm impedance. PCB Size is 0.75"x0.5625x0.020", which is 4Ux3U (1U=0.1875").  We also call this PCB Size DC (C is the third letter to represent 3U).
    PCB Material is Rogers RO4350 RF PCB with 20mil thickness. This PCB work over 40 GHz.
    The width of Strip line is 38mil and spacing is 16mil.

    This PCB will fit into 6UED2W6S1P2 enclosure in our web site.

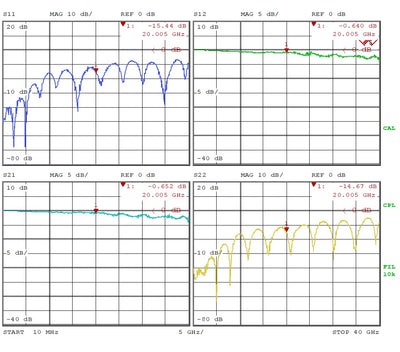

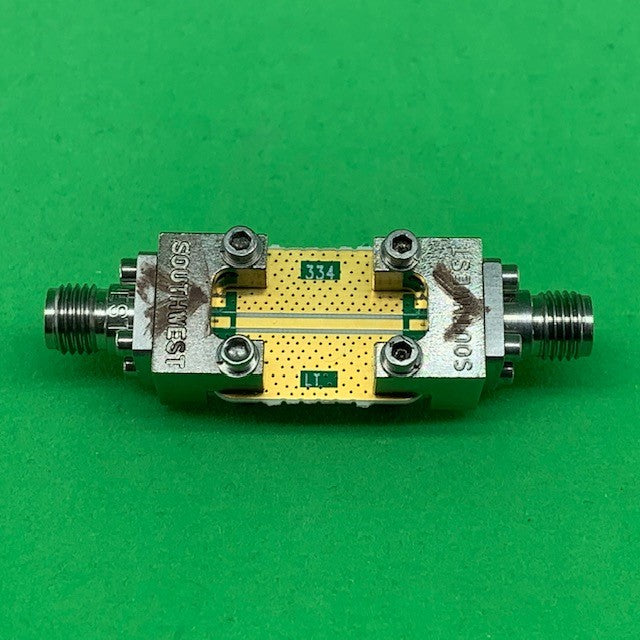

    The third picture shows the S-parameters measured when this PCB is installed with 2.92 Southwest End Launch Connectors.
