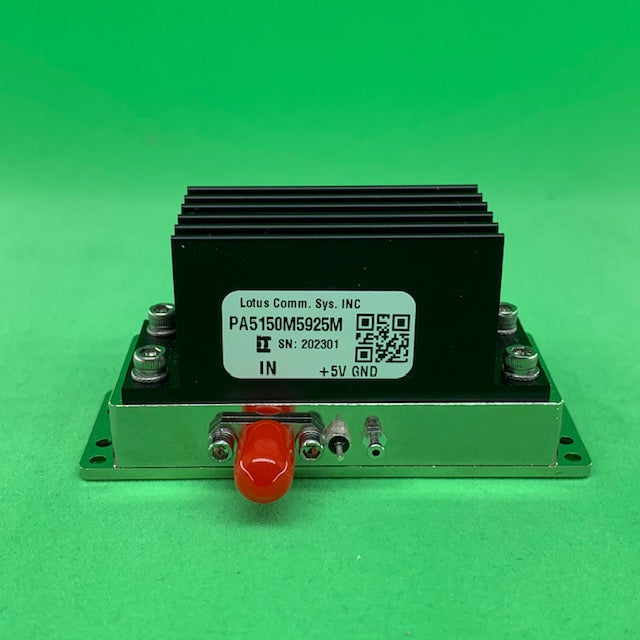

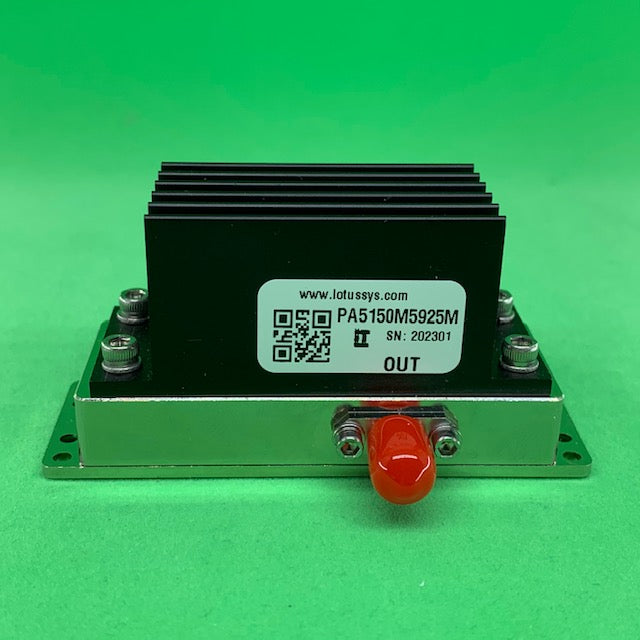

Power Amplifier 4W 5150 to 5925 MHz 33dB Gain 35dBm P3dB SMA
$ 606.00 USD

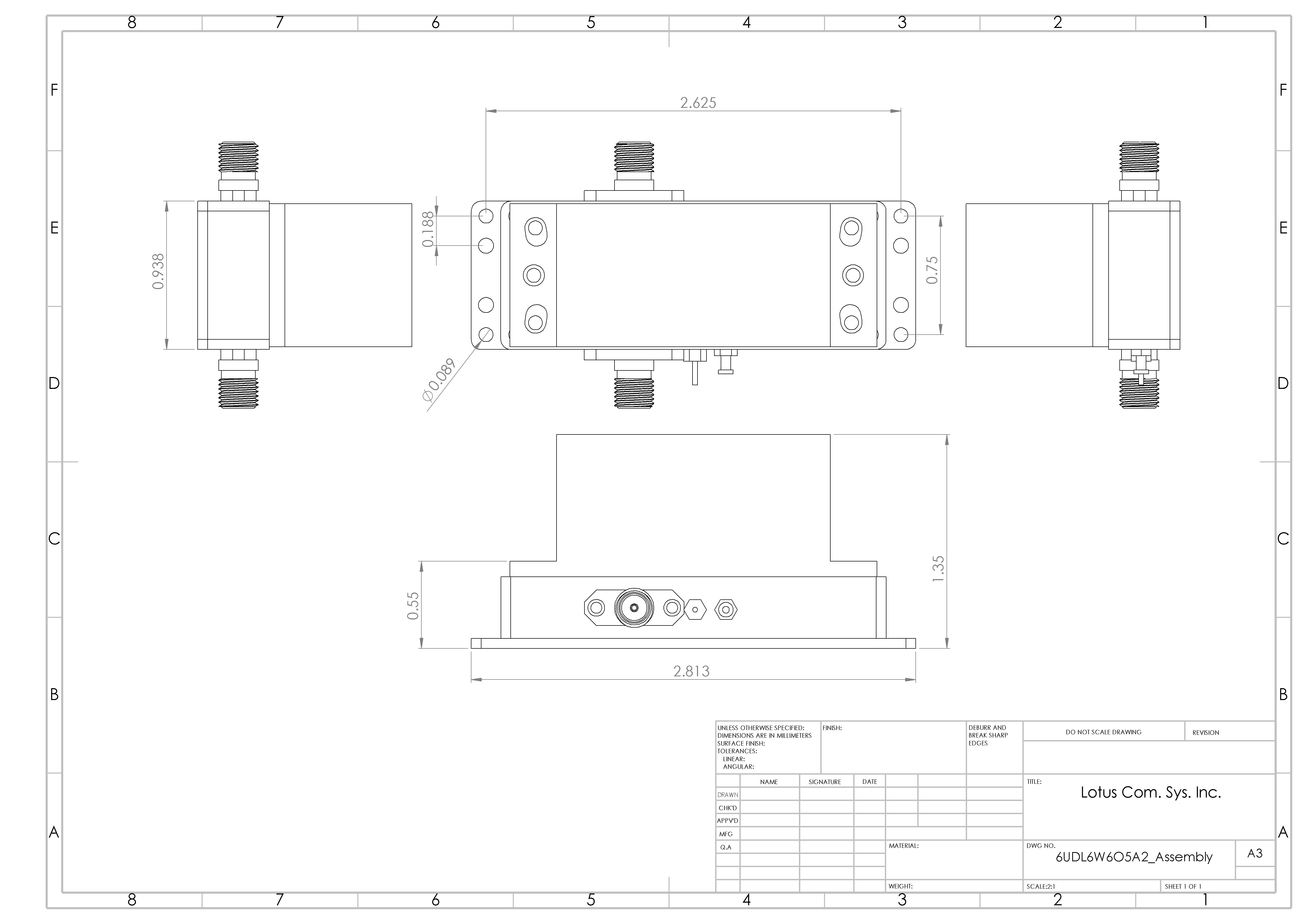

Part Number: PA5150M5925M is a high efficiency fully input/output matched power amplifier (PA) with high gain and linearity. The compact 0.938”x2.813”x1.35” (including heatsink and mounting bracket) makes this 4W PA one of smallest in the market. This PA is designed for the unlicensed spectrum, LTE-advanced small cell base stations operating from 5150 to 5925MHz. The active biasing circuitry is integrated to compensate PA performance over temperature and voltage. The PA has high thermal performance heatsink for optimum operation.
Features
- High Efficiency: PAE=25% @+28dBm
- Gain @+28dBm output power: 33 dB
- Excellent input and output return loss: to 50 Ω system
- Integrated active bias: temperature compensated
- Single DC Voltage: +5V
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- LTE Applications
- General Purpose Wireless
- VSAT
- SDR & Ham Radio
Resources
PA5150M5925M Datasheet
