PA0P2G22G

Power Amplifier 3dB NF 0.2 GHz to 22GHz 12dB Gain 28dBm P1dB SMA

1 item left

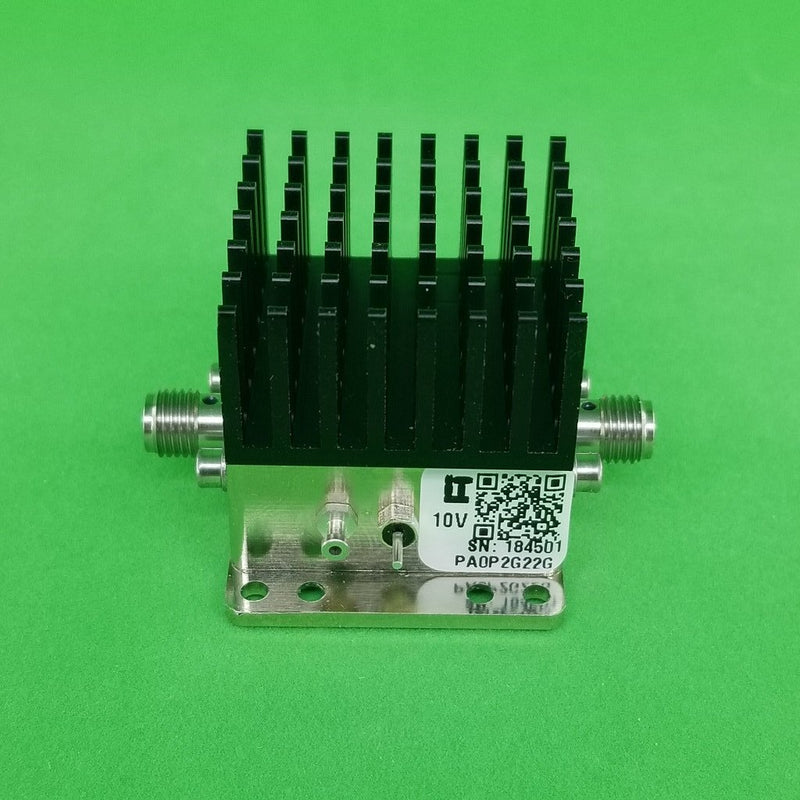

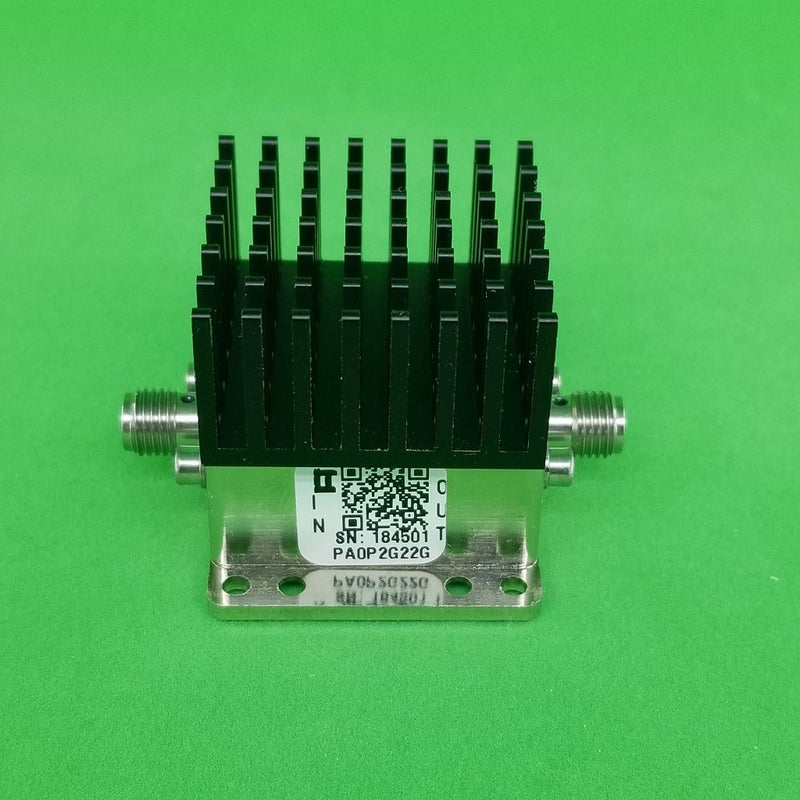

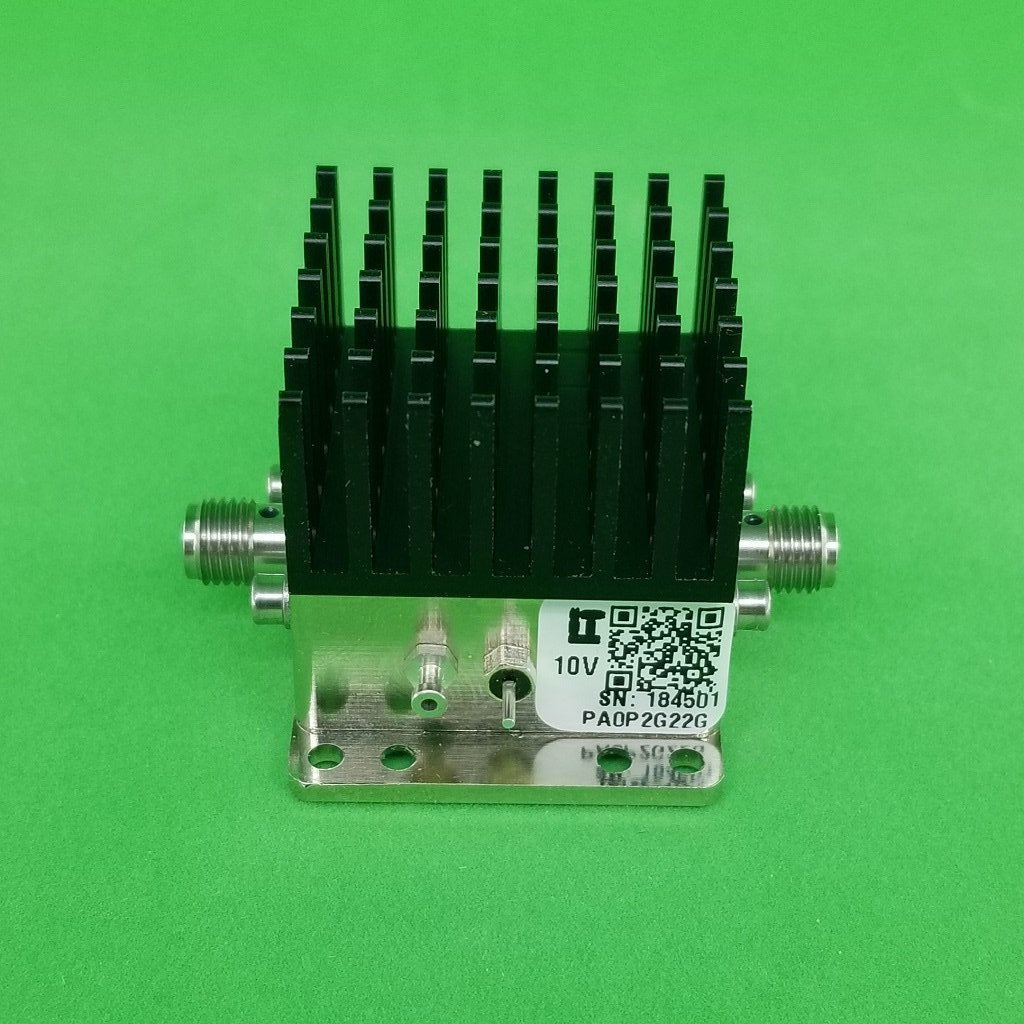

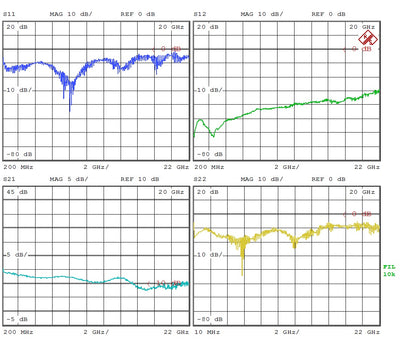

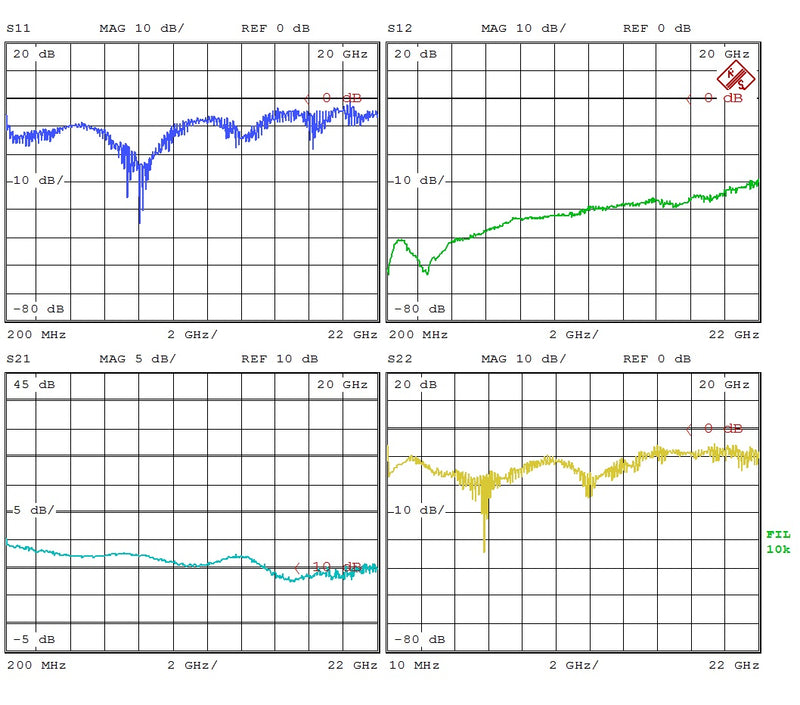

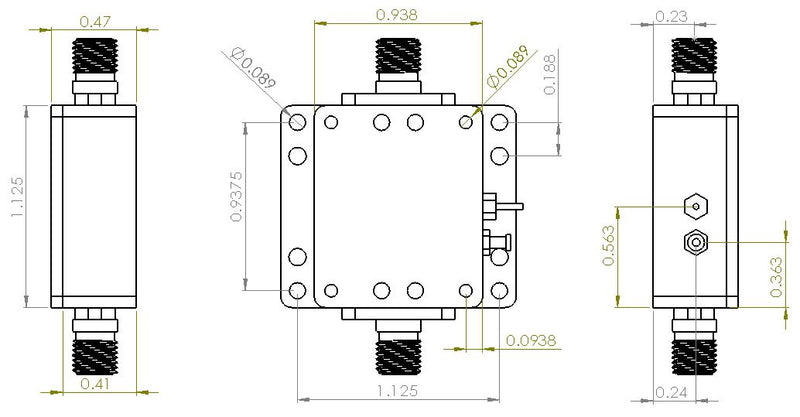

PA0P2G22G is a broadband, GaAs MIMC power amplifier with 12dB typical gain from 0.2 to 22 GHz in a small 15/16”x1-1/8”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2) with integrated heatsink. This self-biased power amplifier provides 12 dB of gain, +40 dBm output IP3 and +28 dBm of output power at 1 dB gain compression while requiring only 350mA from +10V supply. SKU#: AK28_002C.


Features

  • Frequency Range: 0.2 GHz to 22 GHz
  • Noise Figure: typical 3dB @ 10-18 GHz
  • Gain: typical 12dB
  • Output P1dB: +28 dBm typ.
  • Output IP3: +40 dBm typ.
  • DC Voltage: +10V
  • Operating Current: 350mA
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Test Instrumentation
  • Wideband A/D System
  • General Purpose Wireless
  • Radar & VSAT
  • SDR & Ham RadioMicrowave Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png PA0P2G22G Datasheet
