  • Passive Frequency Mixer (MIX5P5G14G6G) 5.5G - 14GHz RF and DC - 6G IF

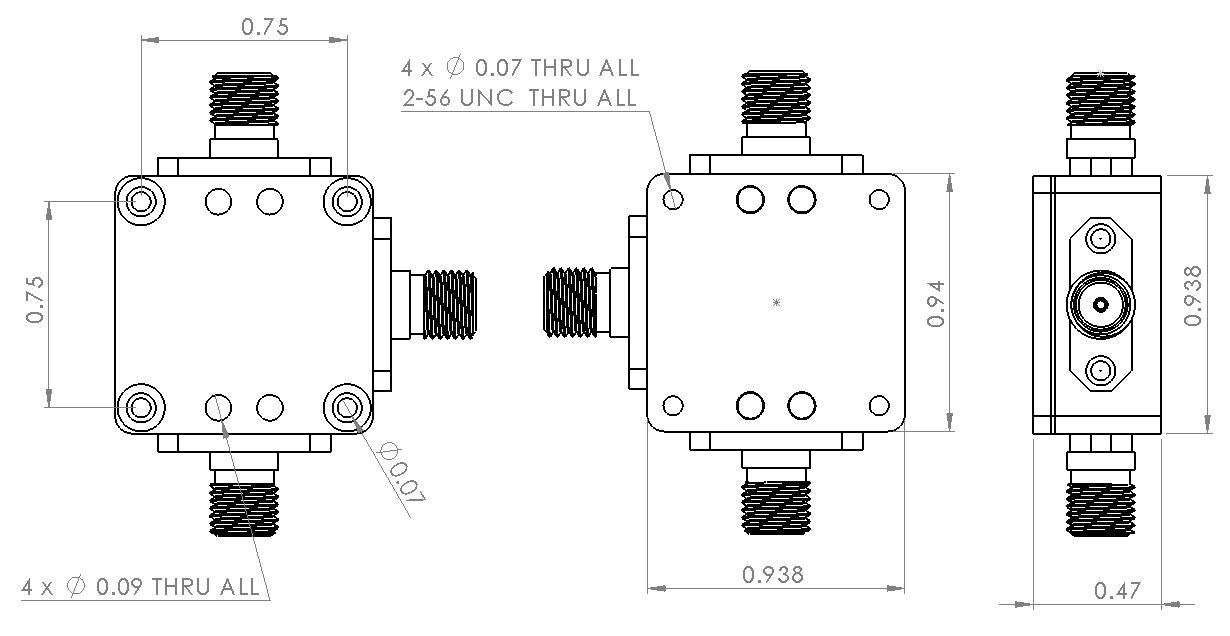

    MIX5P5G14G6G is a Level 15 (LO Power +15 dBm) passive wide band frequency mixer (5.5 GHz to 14 GHz) in a small 15/16”x15/16”x0.48” shielded RF enclosure (PN: 6UDD2W6H41SMAP3). It has conversion loss (7.5dB typ.) and excellent IF BW (DC to 6GHz). It can be used for up and down converter. This mixer provides excellent local oscillator (LO) to radio frequency (RF) and LO to intermediate frequency (IF) isolation due to optimized balun structures. SKU#: AK20-005D.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts

    9 items left


    • Frequency Range: 5.5 GHz to 14 GHz;
    • Conversion loss, 7.5 dB typ.
    • Double balanced mixer
    • Usable as up and down converter
    • Operating Temp. (-40°C to 85°C)
    • Storage Temp. (-55°C to 100°C)
    • Maximum RF Power 25 dBm
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • Use ADI Mixer Part HMC558ALC3B
    • ROHS Compliant


    • Satellite up/down converter
    • Mobile Infrastructure
    • VSAT/ISM
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png MIX5P5G14G6G Datasheet
