Low Pass Filter (LTCC Construction) Pass Band DC-6000MHz

5 items left

Low Pass Filter (LTCC Construction) Pass Band DC-6000 MHz

Part Numbers:  LPF6000M

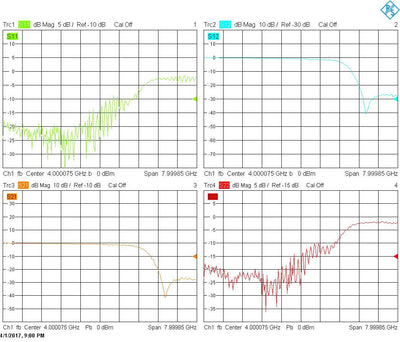

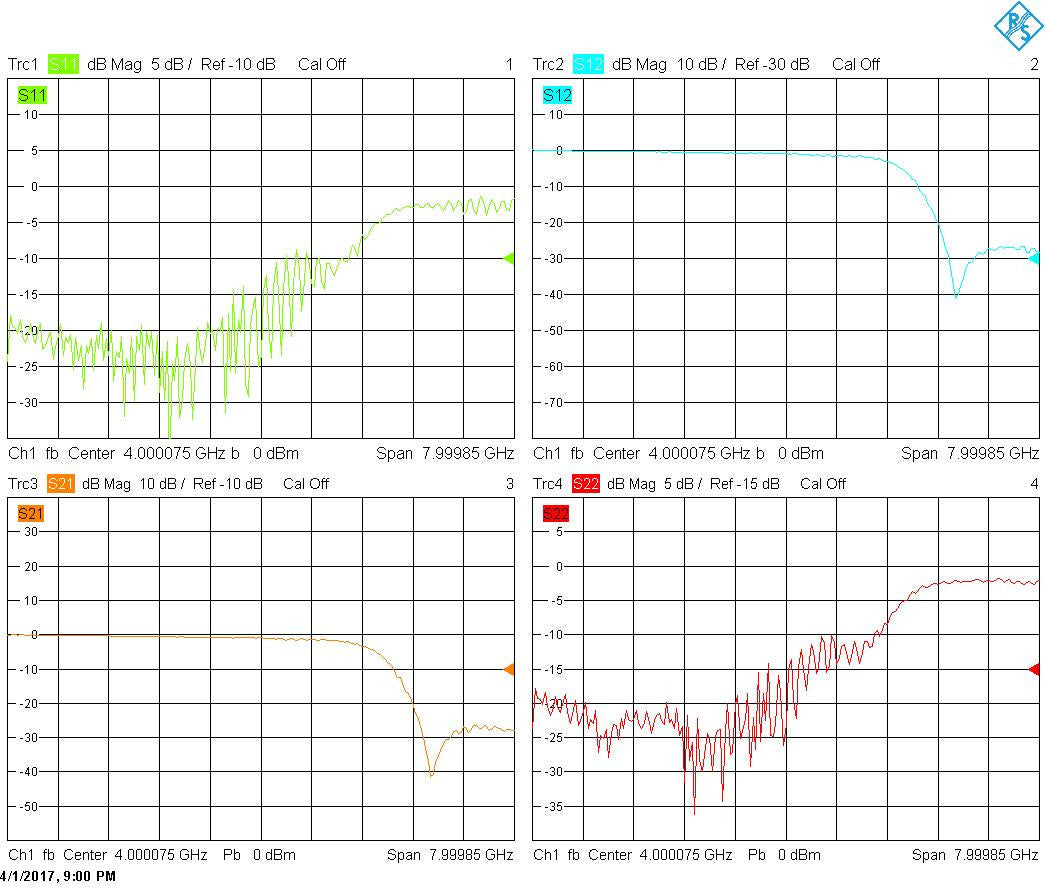

Enclosure uses RF Design Kitwith dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (0 Hz to 8G Hz) is shown in third picture. SKU#: AK28-002B.

  • Operational Temperature: -55 ~ 100C
  • Temperature Stable
  • Cut Off Frequency: 6000M
  • RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C
  • Insertion Loss in Pass Band: (1.5dB Max)
  • High Quality SMA Female Connector (Amphenol)
  • High Quality RF PCB (ISOLA I-Tera) -- Low loss and High Thermal Performance


  • Harmonic Rejection
  • Transmitters / Receivers / SDR
  • Test Instrumentation

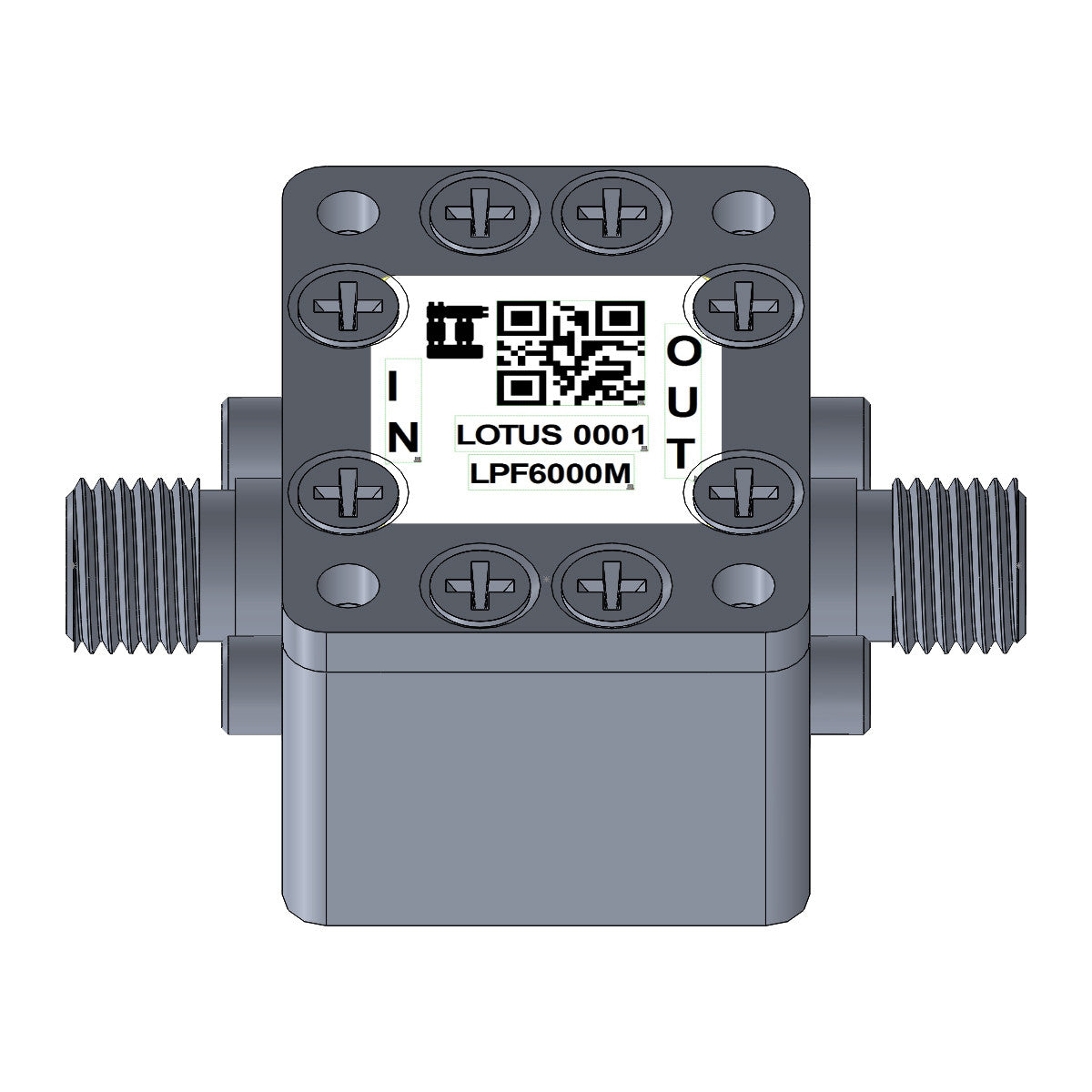

This LPF Module includes the RF Enclosure as shown in picture.

Proudly MADE IN USA.
