Low Pass Filter LPF575M (LTCC Construction) Pass Band DC-575 MHz

Low Pass Filter LPF575M (LTCC Construction) Pass Band DC-575 MHz

Low Pass Filter LPF575M (LTCC Construction) Pass Band DC-575 MHz

Low Pass Filter LPF575M (LTCC Construction) Pass Band DC-575 MHz

Low Pass Filter LPF575M (LTCC Construction) Pass Band DC-575 MHz

$ 59.95 USD

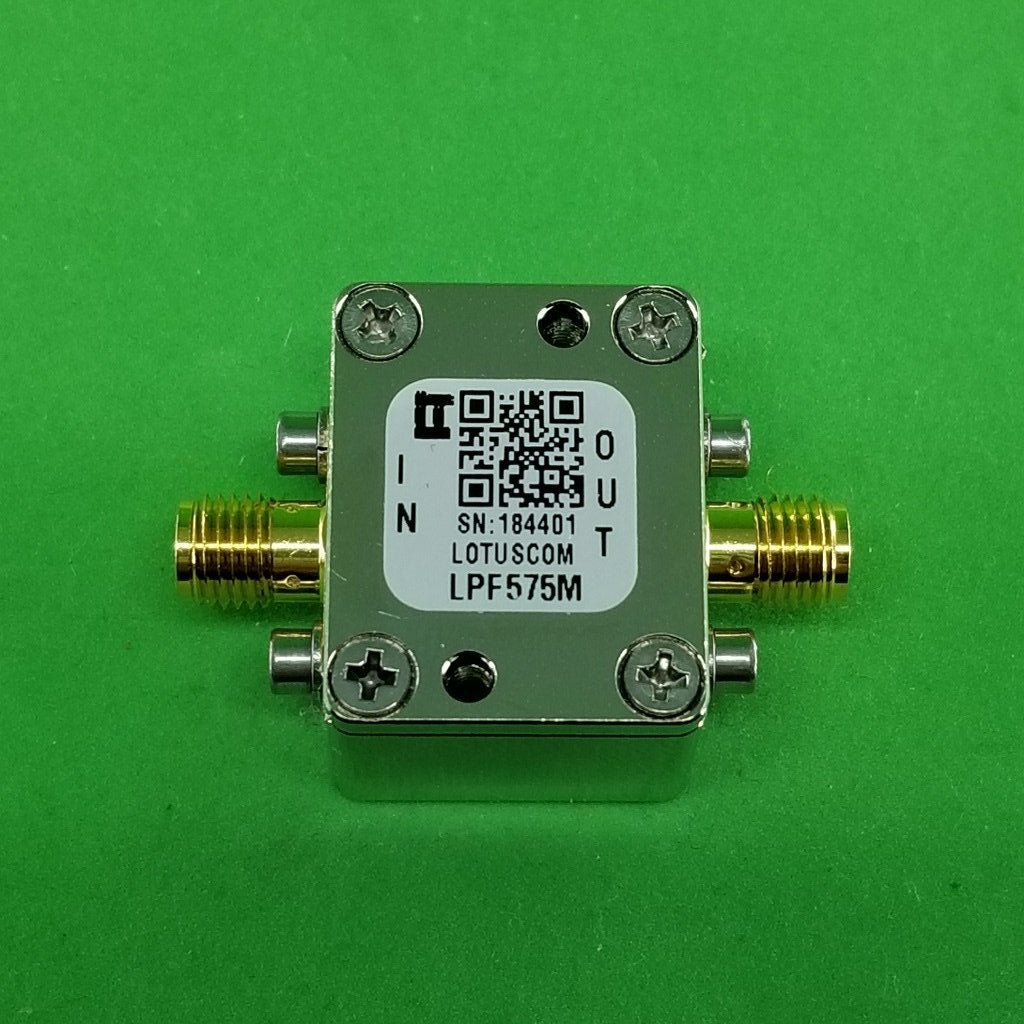

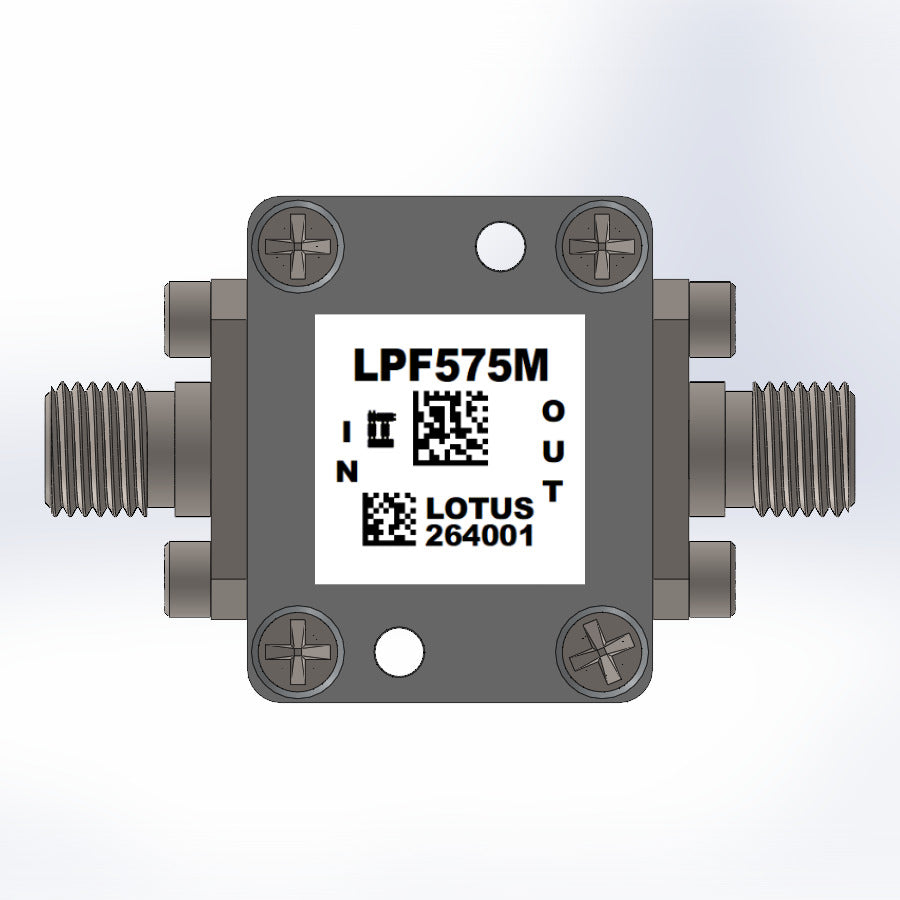

LPF575M is a low pass filter with pass band from DC to 575 MHz. SKU#: AK28-001Z.

Collections: Low Pass Filter

Features

Operational Temperature: -55 ~ 100C
Temperature Stable
Cut Off Frequency: 575 MHz
RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C
Insertion Loss in Pass Band: (1.5dB Max)
High Quality RF Rogers RO4350 PCB
ROHS Compliant

Applications

Harmonic Rejection
Transmitters / Receivers / SDR
Test Instrumentation

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

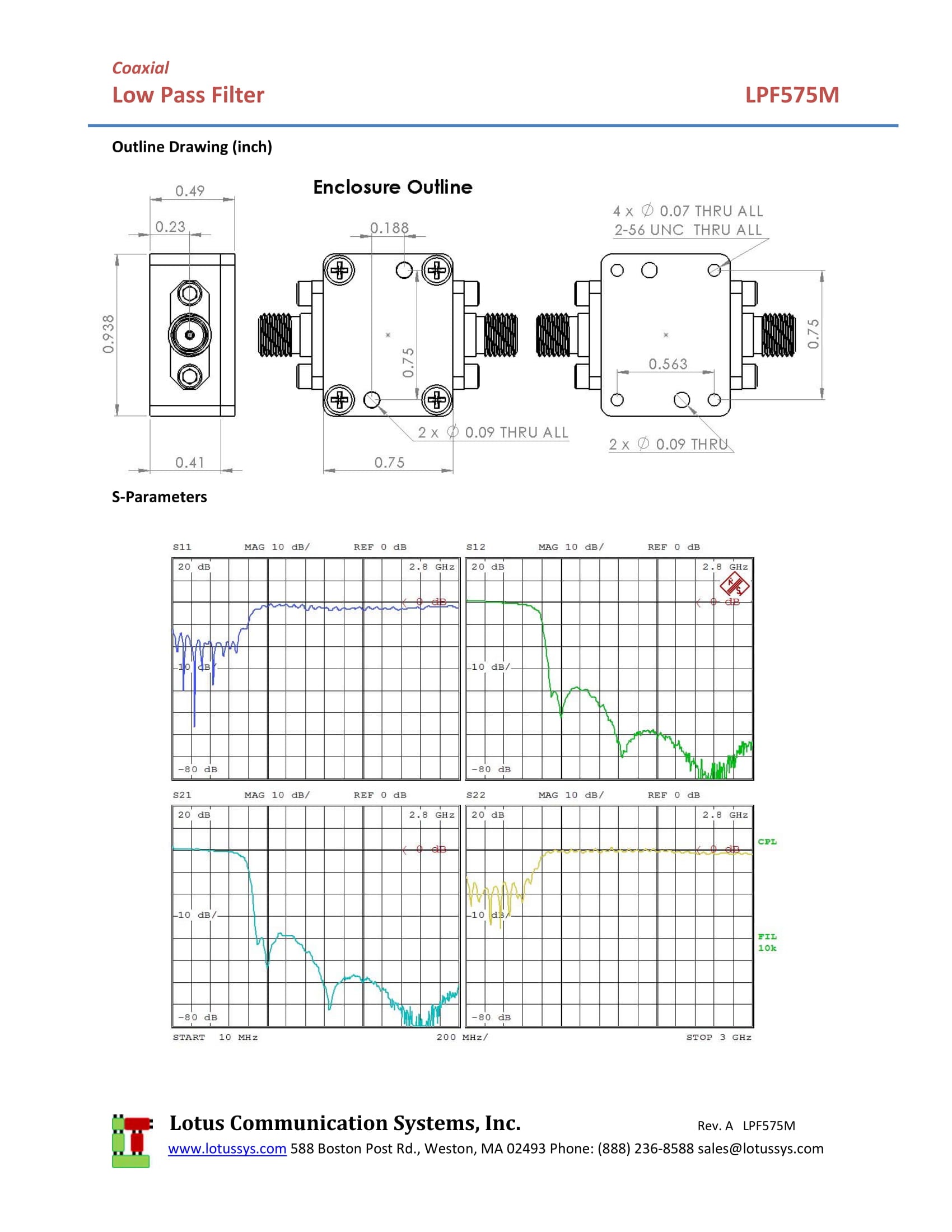

LPF575M Datasheet
