    Low Pass Filter (LTCC Construction) Pass Band DC-5000 MHz

    Part Numbers:  LPF5000M

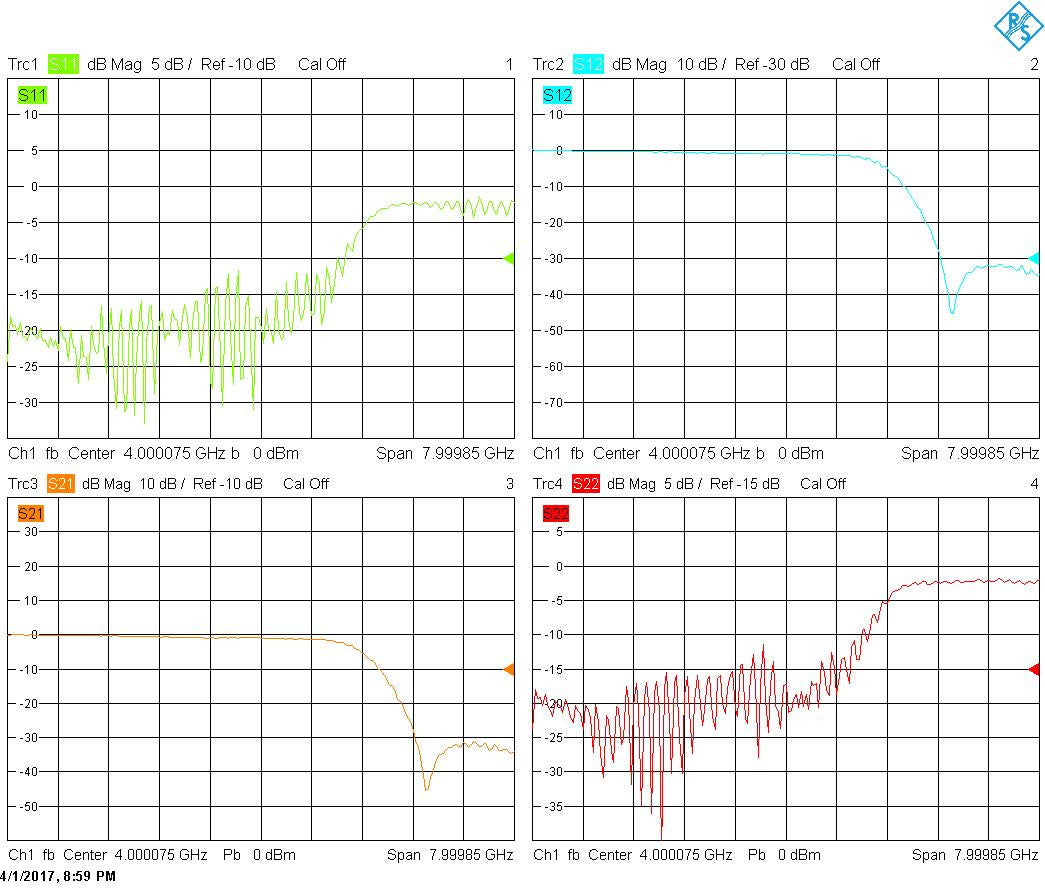

    Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (0 Hz to 8G Hz) is shown in third picture.

    • Operational Temperature: -55 ~ 100C
    • Temperature Stable
    • Cut Off Frequency: 5000M
    • RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C
    • Insertion Loss in Pass Band: (1.5dB Max)
    • High Quality SMA Female Connector (Amphenol)
    • High Quality RF PCB (ISOLA I-Tera) -- Low loss and High Thermal Performance

    Applications

    • Harmonic Rejection
    • Transmitters / Receivers / SDR
    • Test Instrumentation

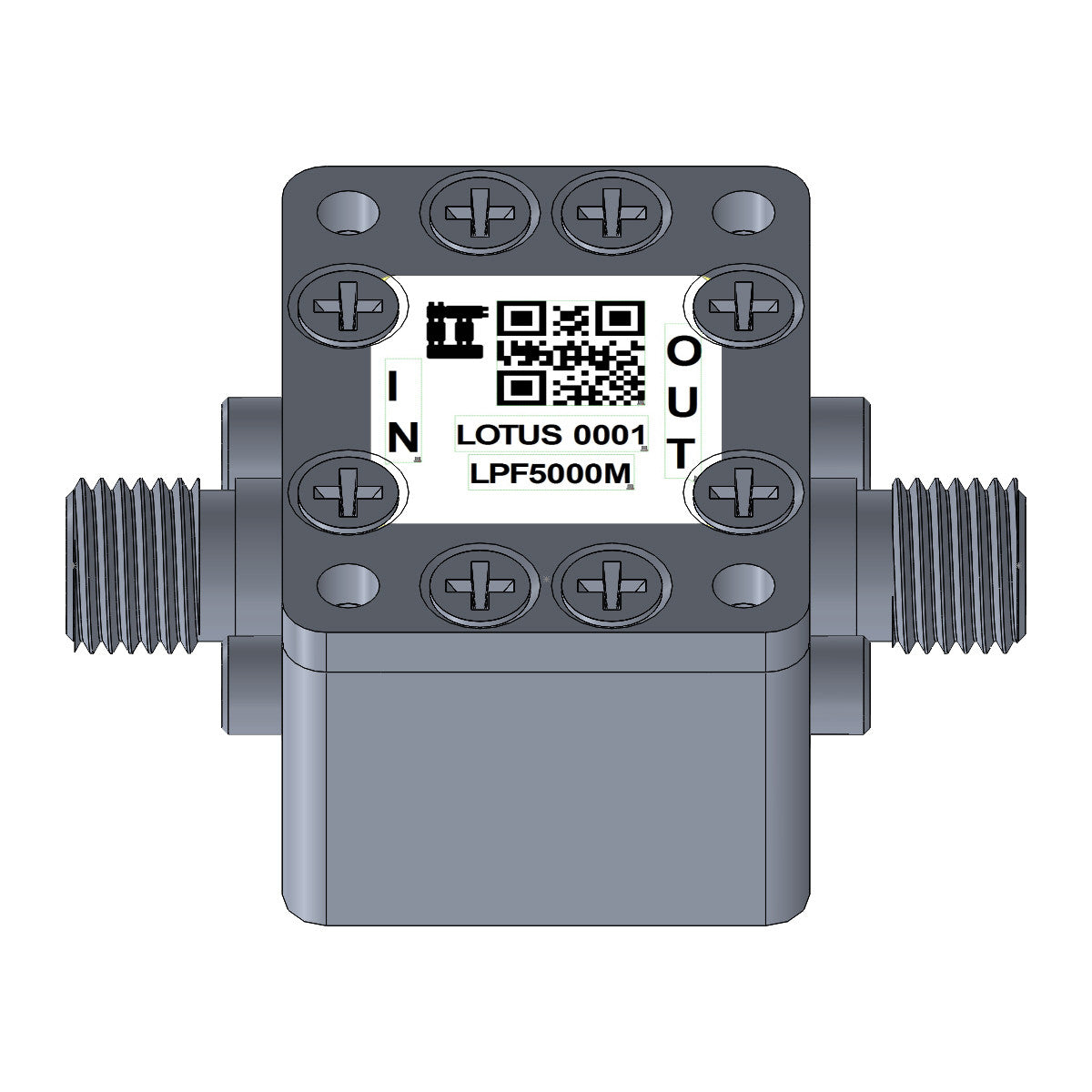

    This LPF Module includes the RF Enclosure as shown in picture.

    Proudly MADE IN USA.
