Low Pass Filter (LTCC Construction) Pass Band DC-2600MHz
$ 98.00 USD
Low Pass Filter (LTCC Construction) Pass Band DC-2600 MHz
Part Numbers: LPF2600M

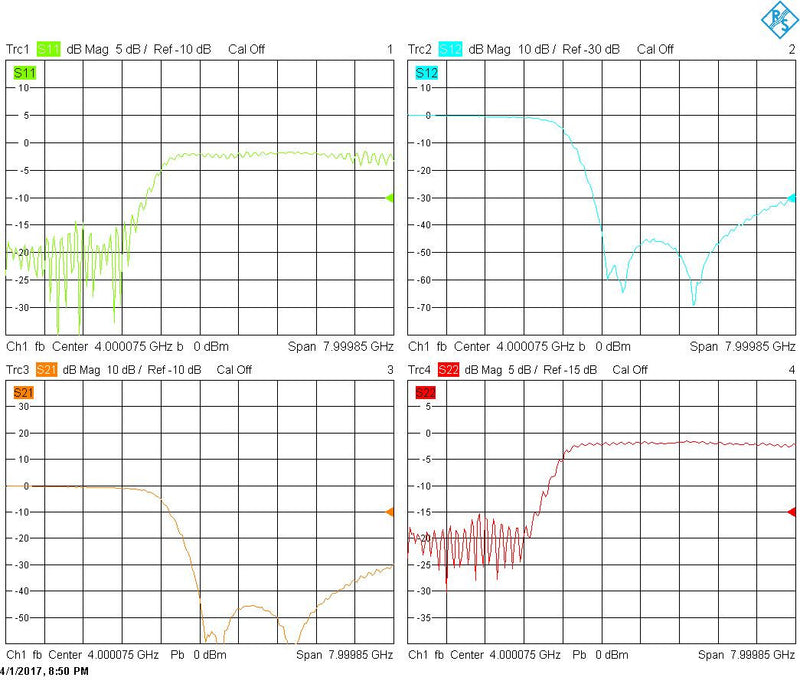

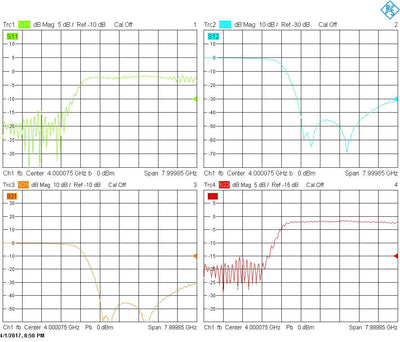

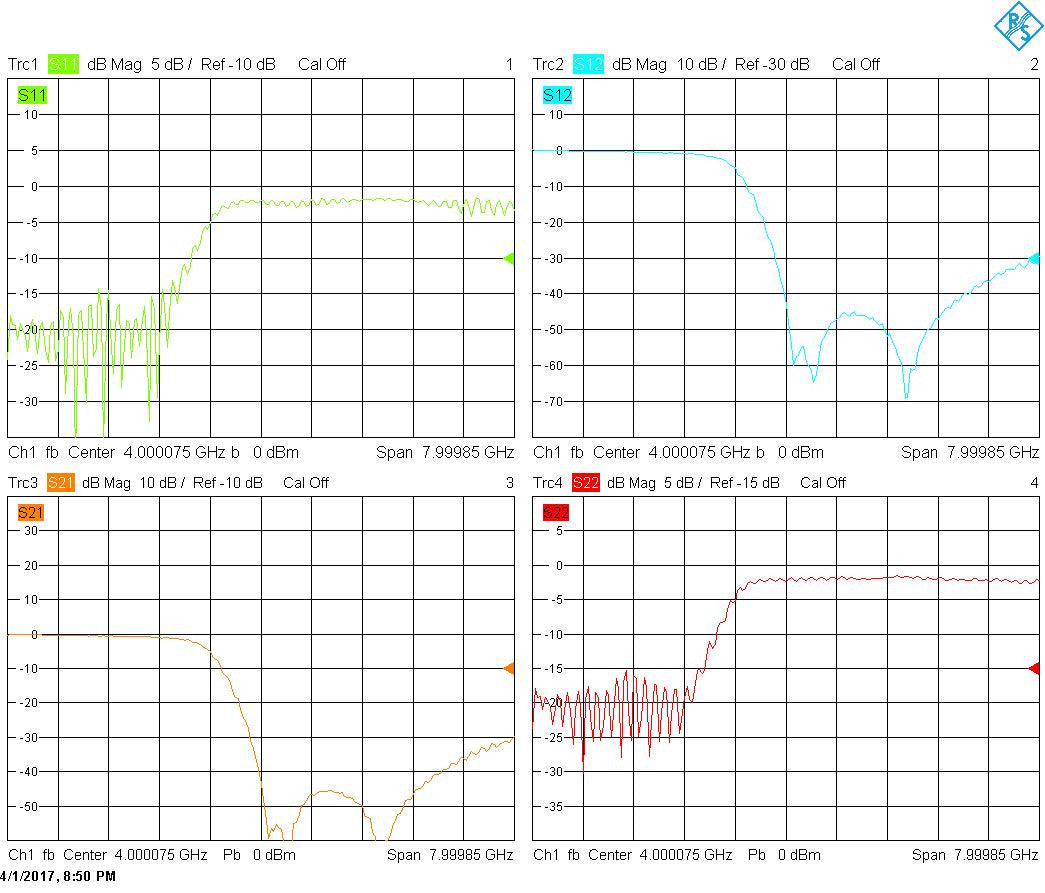

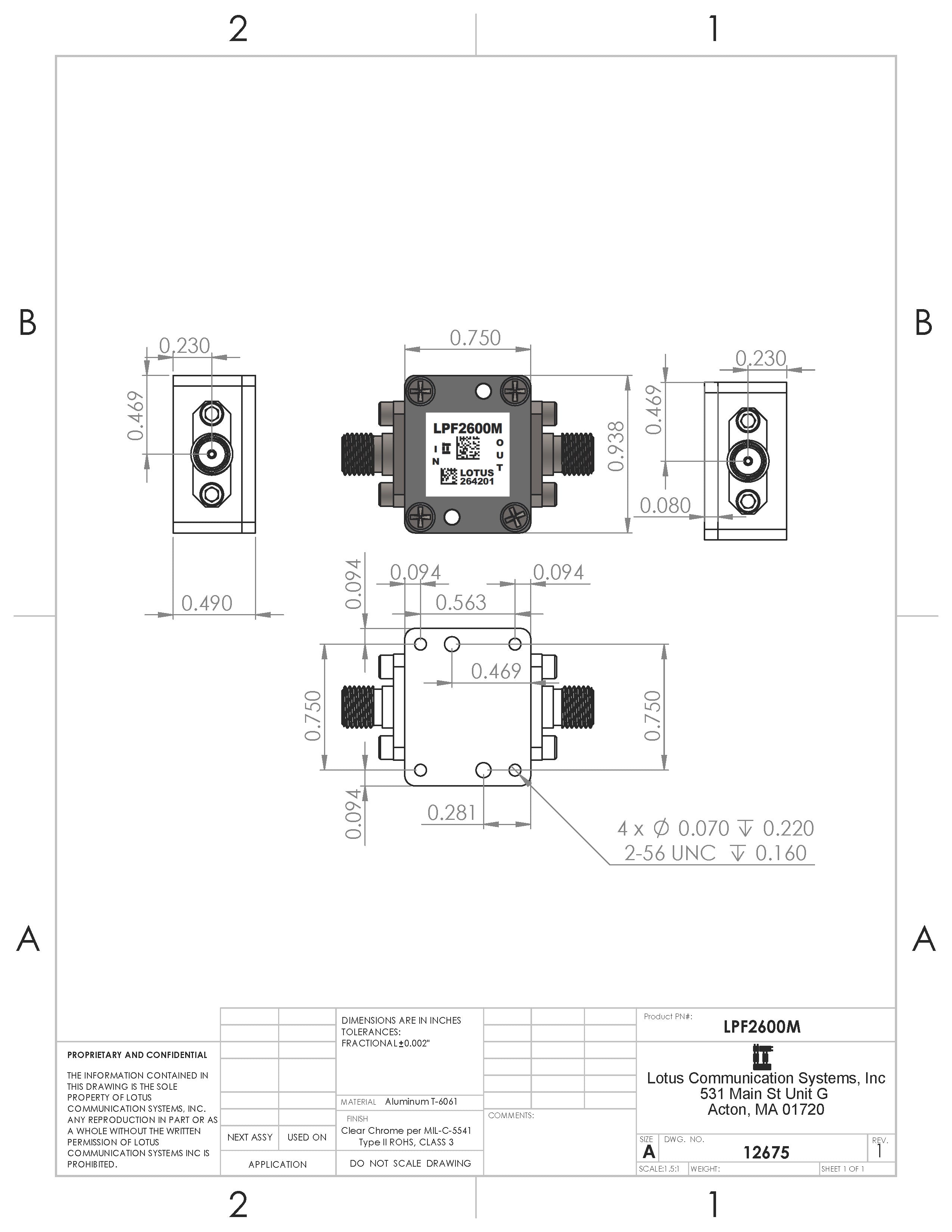

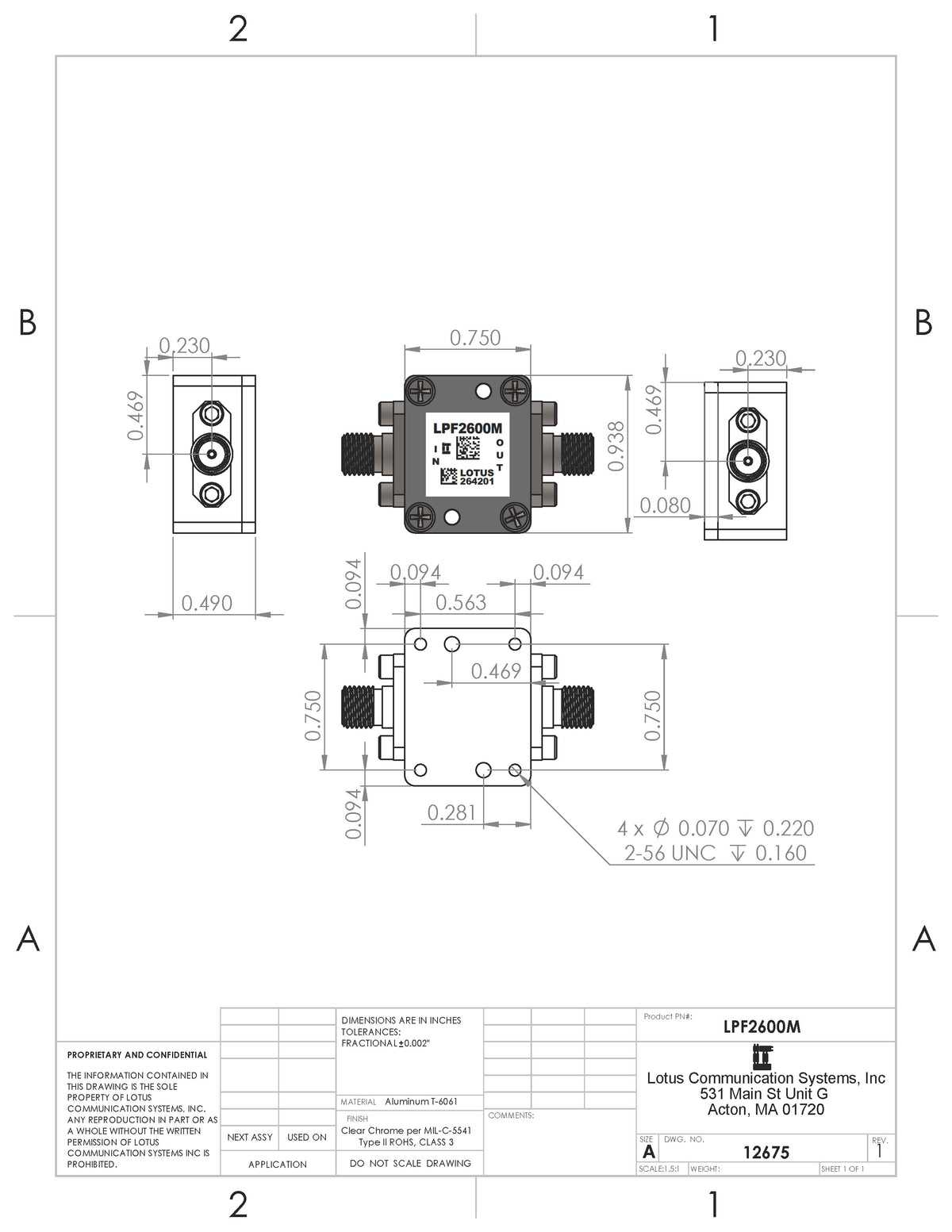

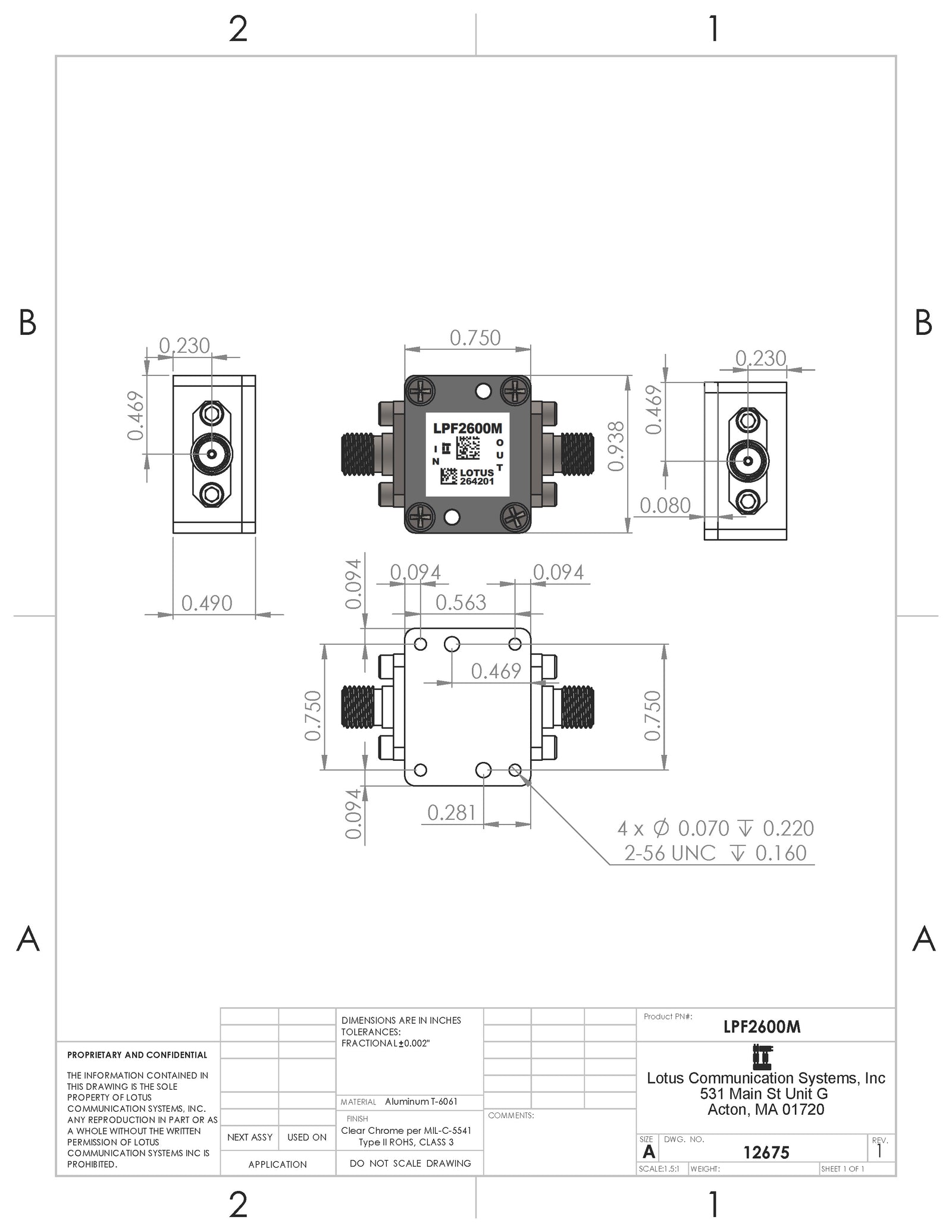

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (0 Hz to 8G Hz) is shown in third picture. SKU#: AK28-001AB.
- Operational Temperature: -55 ~ 100C
- Temperature Stable
- Cut Off Frequency: 2600M
- RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C
- Insertion Loss in Pass Band: (1.5dB Max)
- High Quality SMA Female Connector (Amphenol)
- High Quality RF PCB (ISOLA I-Tera) -- Low loss and High Thermal Performance
Applications
- Harmonic Rejection
- Transmitters / Receivers / SDR
- Test Instrumentation

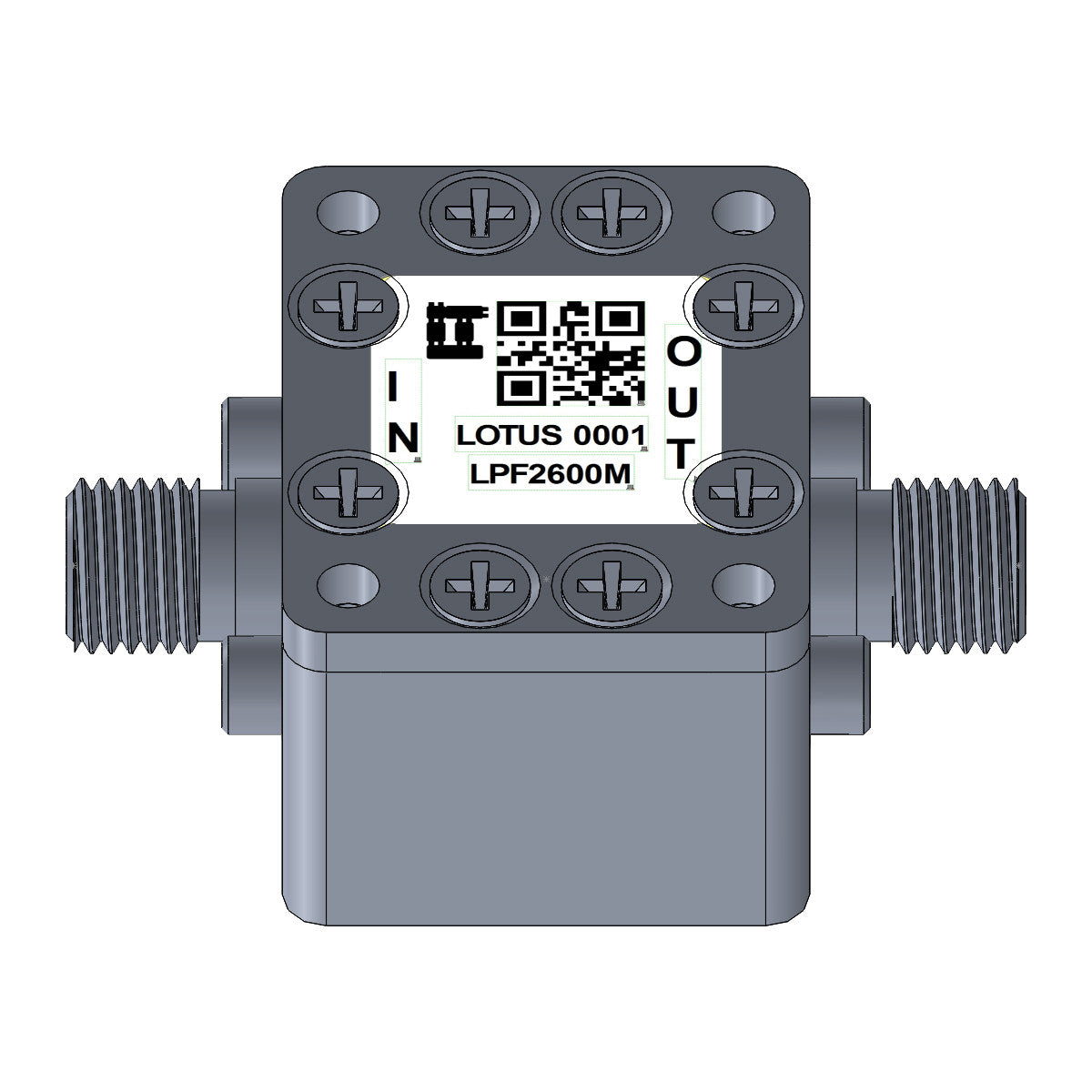

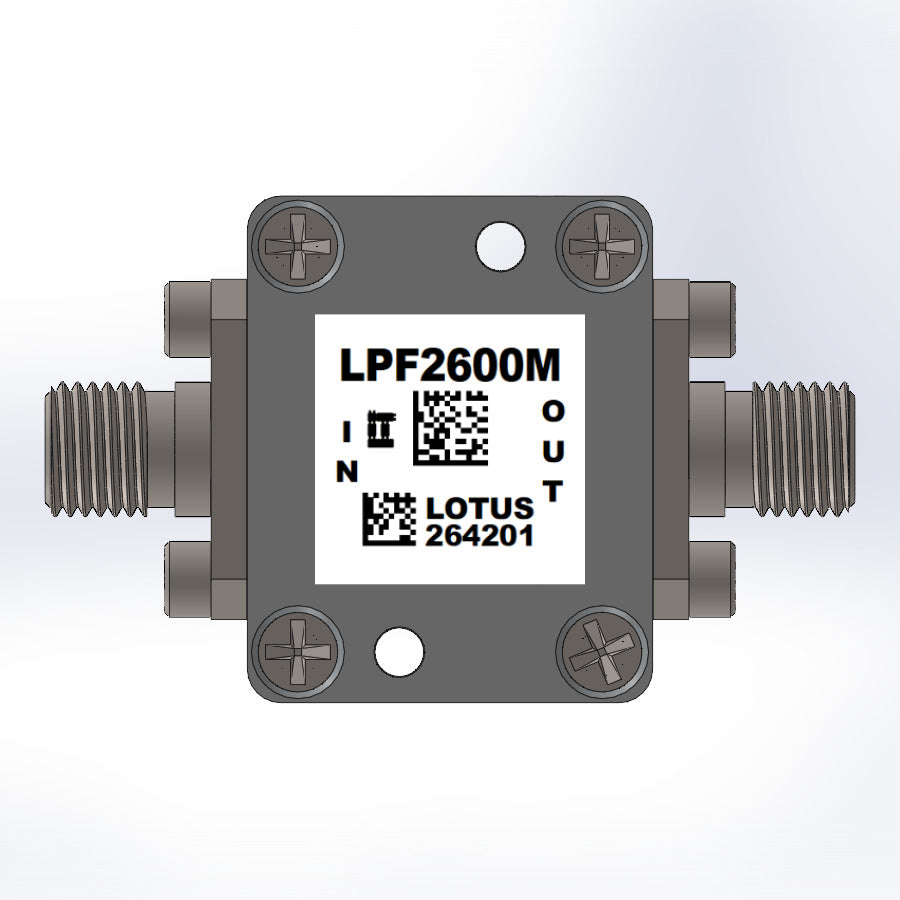

This LPF Module includes the RF Enclosure as shown in picture.
Proudly MADE IN USA.
