  • Low Pass Filter (LTCC Construction) Pass Band DC-2400MHz

    LPF2400M is a Low Pass Filter (LTCC Construction) Pass Band DC-2400 MHz. SKU#: AK28_001AA.

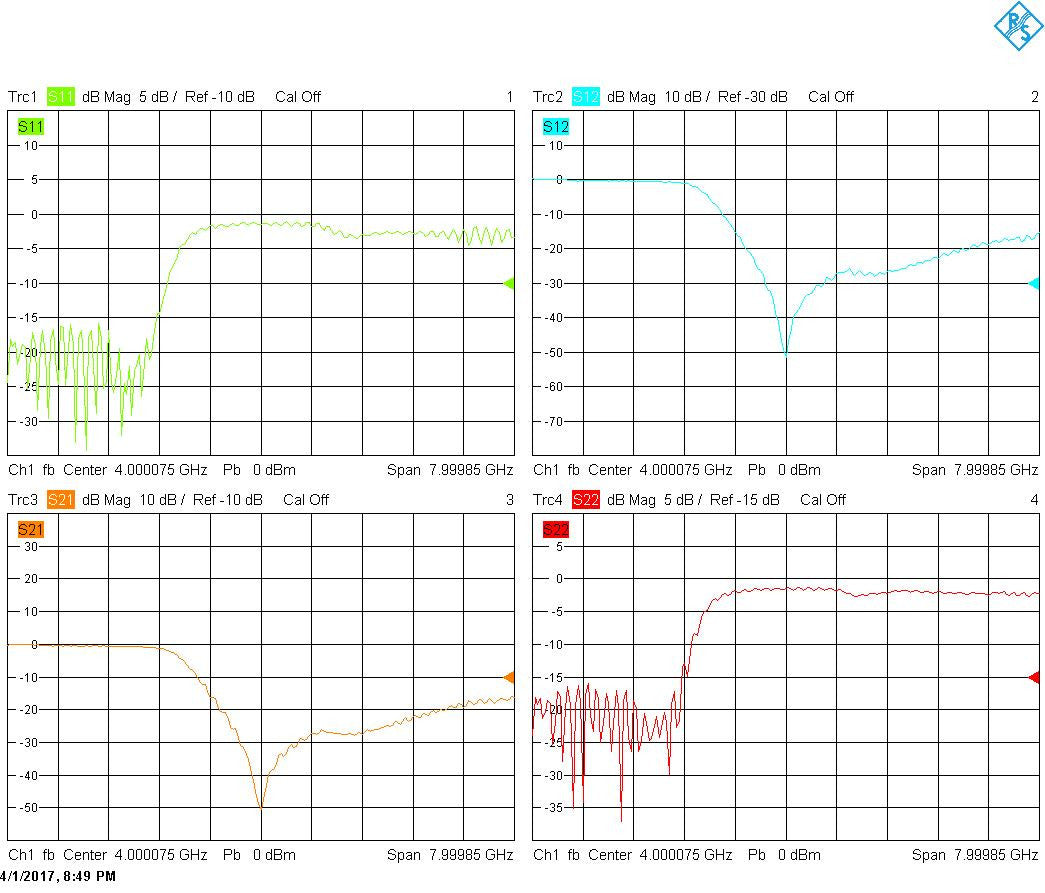

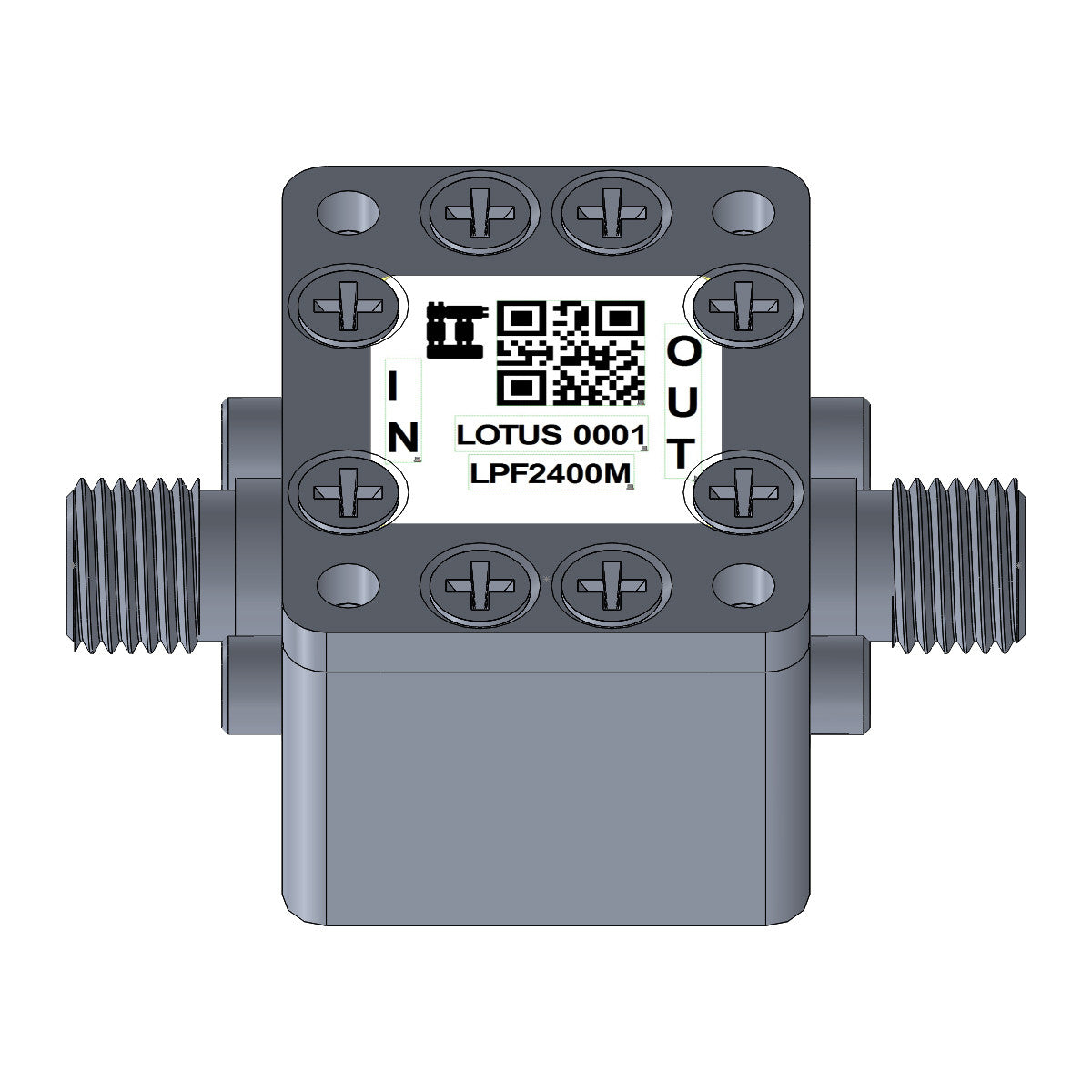

    Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (0 Hz to 8 GHz) is shown in third picture.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    5 items left

    Features

    • Operational Temperature: -55 ~ 100C
    • Temperature Stable
    • Cut Off Frequency: 2400M
    • RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C
    • Insertion Loss in Pass Band: (1.5dB Max)
    • High Quality SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Harmonic Rejection
    • Transmitters / Receivers / SDR
    • Test Instrumentation

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LPF2400M Datasheet
