Low Pass Filter (LTCC Construction) Pass Band DC-13250MHz
$ 98.00 USD
Part Numbers: LPF13250M is Low Pass Filter (LTCC Construction) Pass Band DC-13250 MHz.

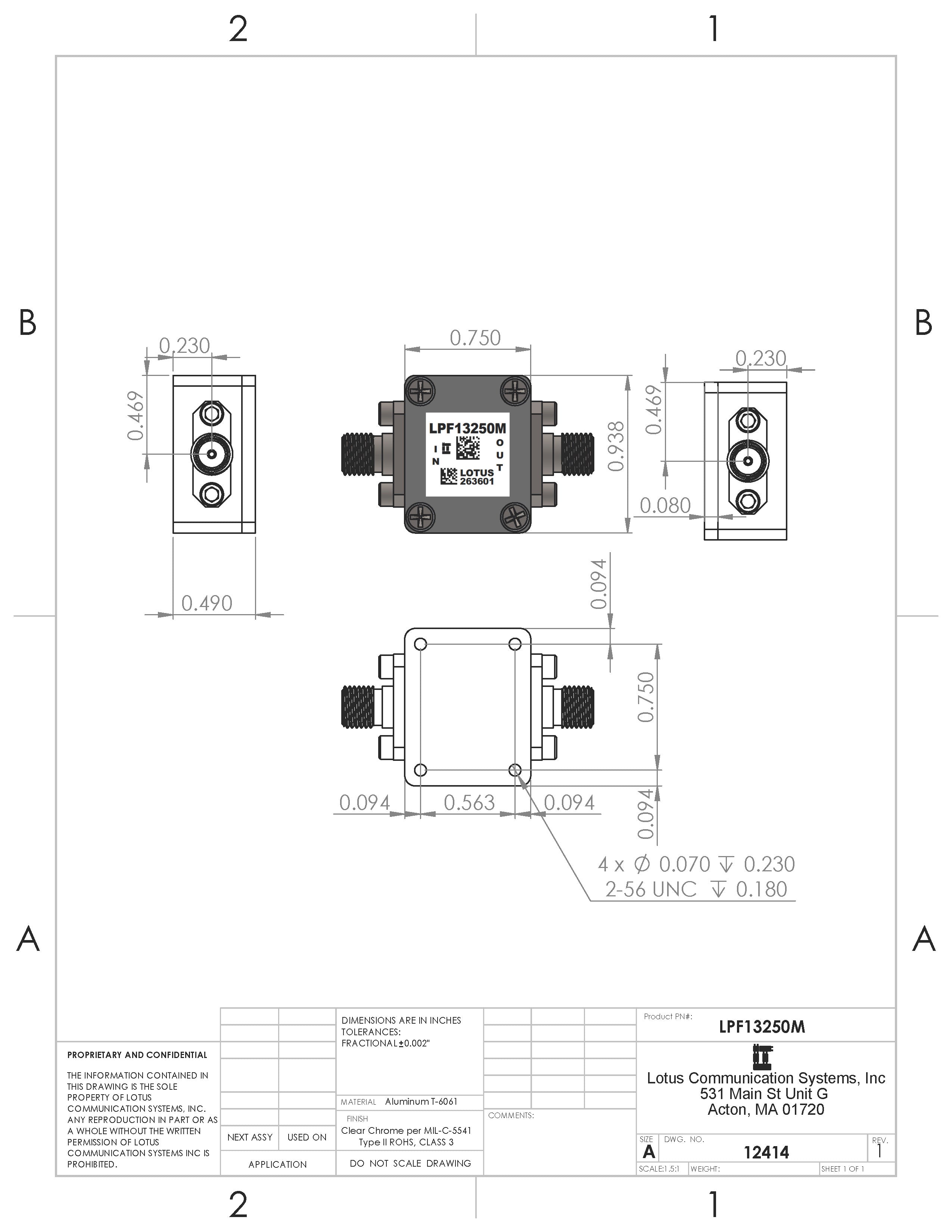

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.49".
- Operational Temperature: -55 ~ 100C
- Temperature Stable
- Cut Off Frequency: 3000M
- RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C
- Insertion Loss in Pass Band: (1.5dB Max)
- High Quality SMA Female Connector (Amphenol)
- High Quality RF PCB (ISOLA I-Tera) -- Low loss and High Thermal Performance
Applications
- Harmonic Rejection
- Transmitters / Receivers / SDR
- Test Instrumentation
Resources (PDF Datasheet)

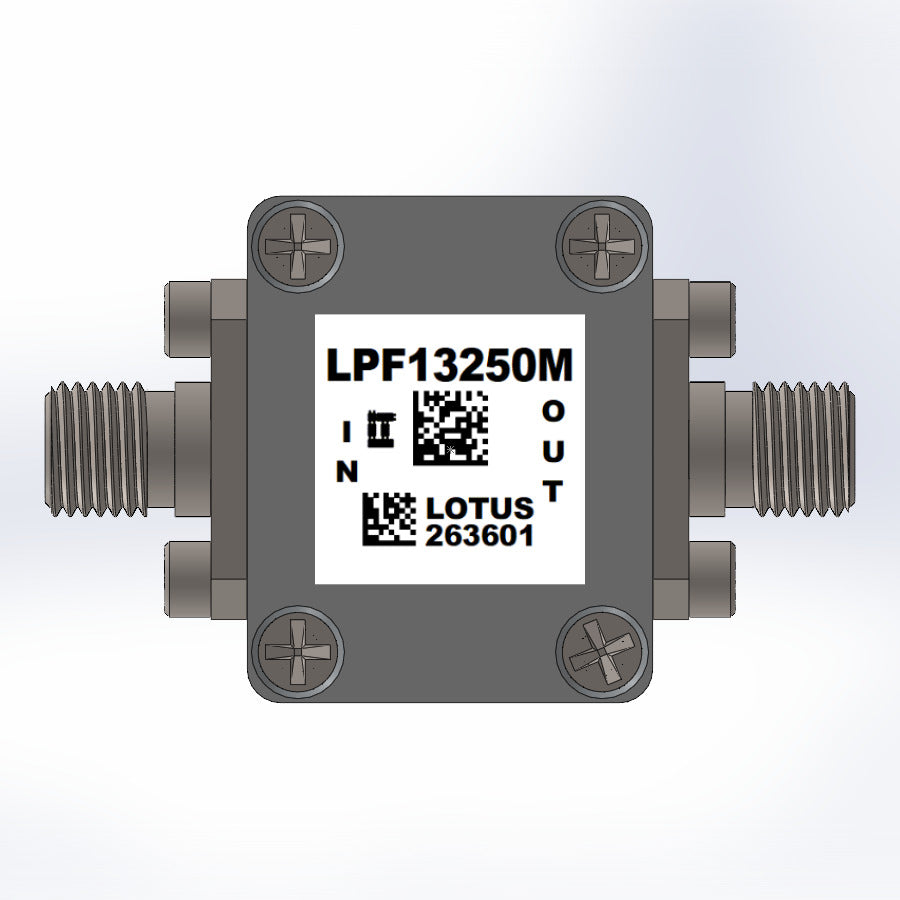

This LPF Module includes the RF Enclosure as shown in picture.
Proudly MADE IN USA.
