LPF120M

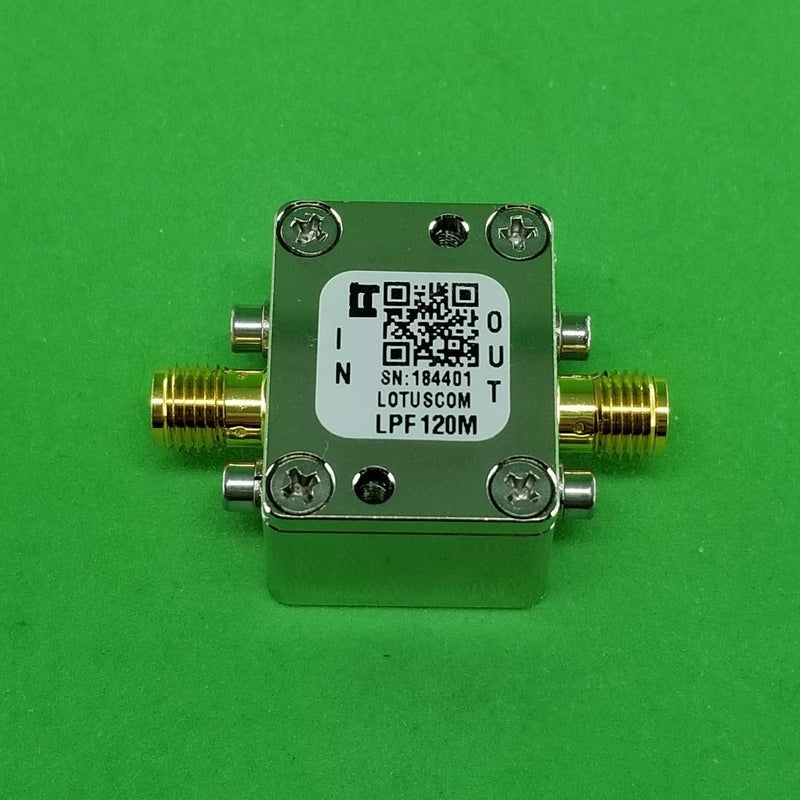

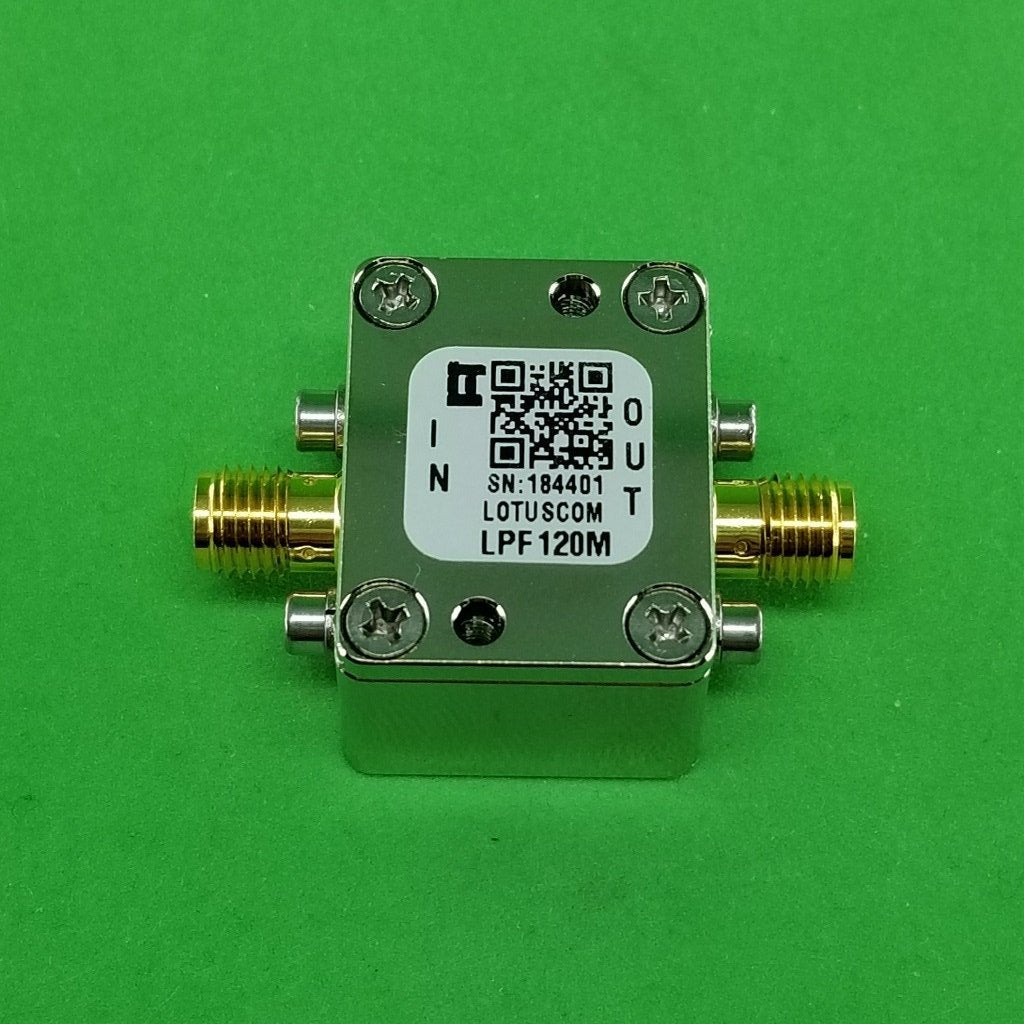

Low Pass Filter LPF120M (LTCC Construction) Pass Band DC-120MHz

1 item left

LPF120M is a low pass filter with pass band from DC to 120MHz. SKU#: AK28_001X.


Features

  • Operational Temperature: -55 ~ 100C
  • Temperature Stable
  • Cut Off Frequency: 120 MHz
  • RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C
  • Insertion Loss in Pass Band: (1.5dB Max)
  • High Quality RF Rogers RO4350 PCB
  • ROHS Compliant

Applications

  • Harmonic Rejection
  • Transmitters / Receivers / SDR
  • Test Instrumentation

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LPF120M Datasheet
