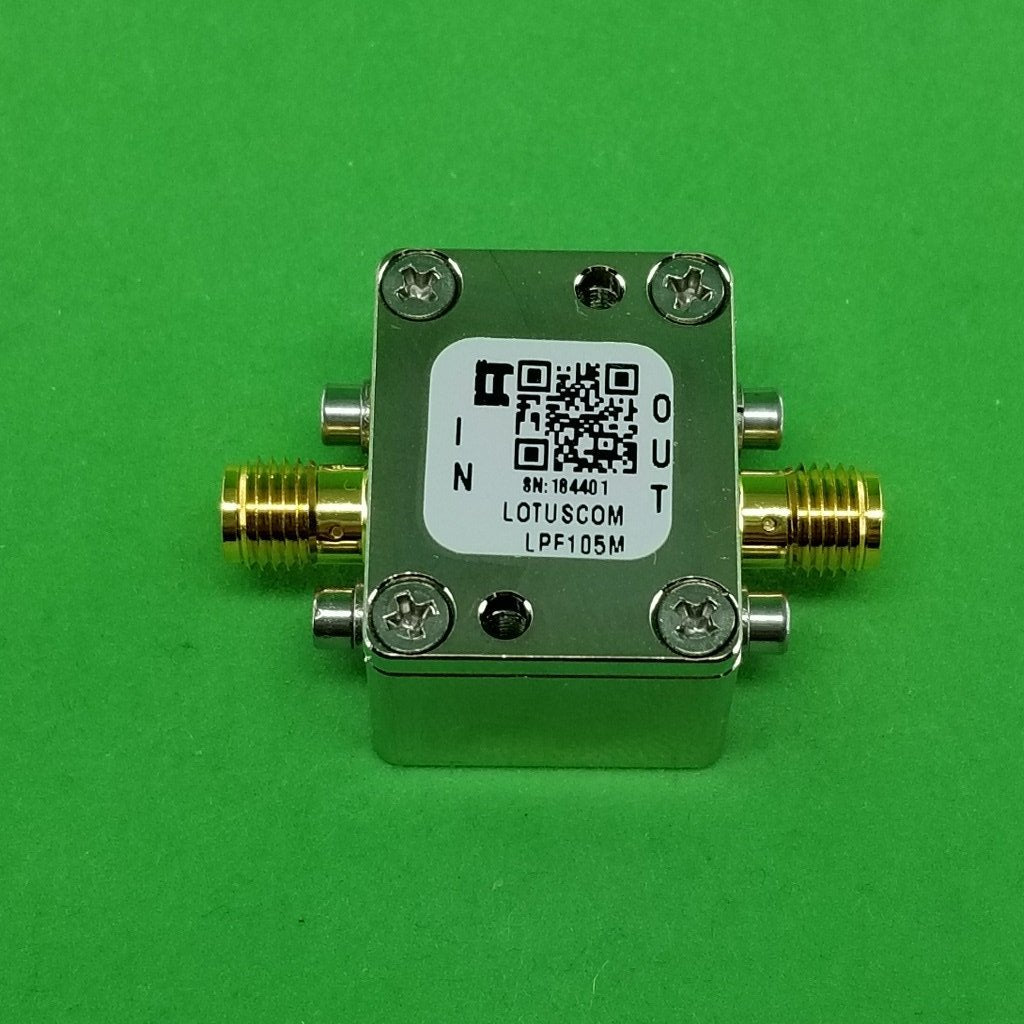

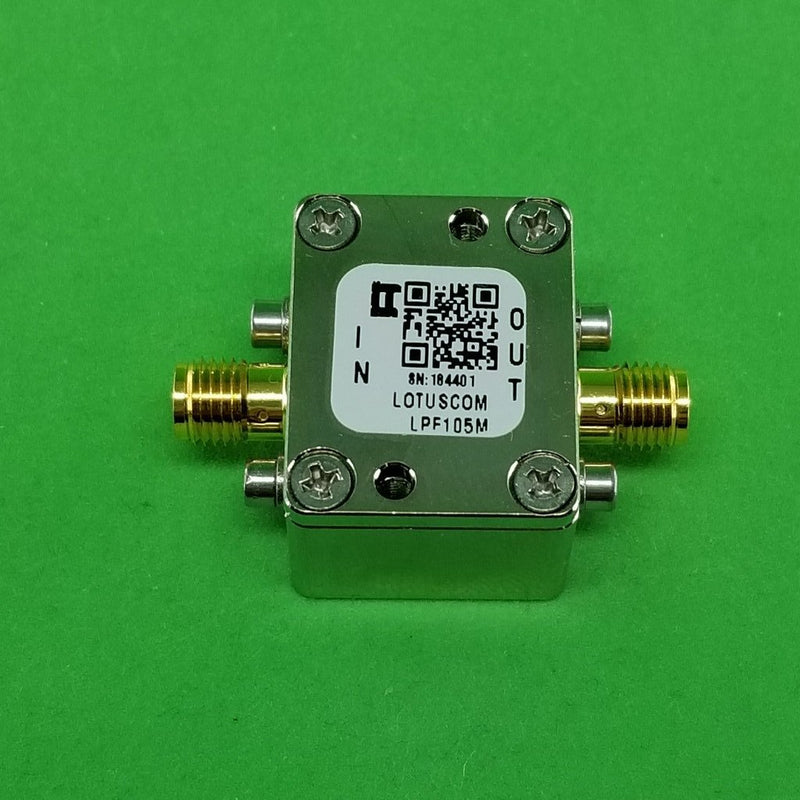

  • Low Pass Filter LPF105M (LTCC Construction) Pass Band DC-105MHz

    LPF105M is a low pass filter with pass band from DC to 105MHz. SKU#: AK28_001W.

    1 item left

    Features

    • Operational Temperature: -55 ~ 100C
    • Temperature Stable
    • Cut Off Frequency: 105 MHz
    • RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C
    • Insertion Loss in Pass Band: (1.5dB Max)
    • High Quality RF Rogers RO4350 PCB
    • ROHS Compliant

    Applications

    • Harmonic Rejection
    • Transmitters / Receivers / SDR
    • Test Instrumentation

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LPF105M Datasheet
