    Low Pass Filter (LTCC Construction) Pass Band DC-1000 MHz

    Part Numbers:  LPF1000M

    Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (0 Hz to 3G Hz) is shown in third picture. SKU#: AK20-010D.

    Features

    • Operational Temperature: -55 ~ 100°C
    • Temperature Stable
    • Cut Off Frequency: 1000MHz
    • RF Power Input: 10W max. at 25°C, derate linearly to 0.25W at 100°C
    • Insertion Loss in Pass Band: (1.5dB Max)
    • High Quality SMA Female Connector
    • High Quality RF PCB (Rogers RO4350) -- Low loss and High Thermal Performance

    Applications

    • Harmonic Rejection
    • Transmitters / Receivers / SDR
    • Test Instrumentation

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LPF1000M Datasheet

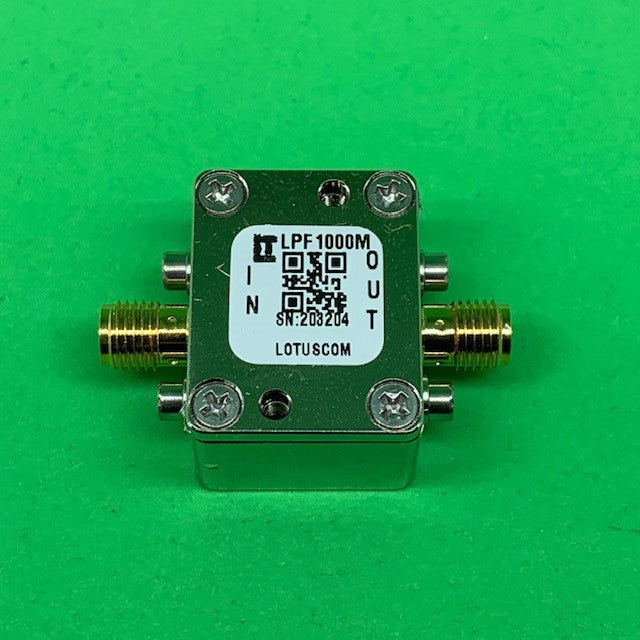

    This LPF Module includes the RF Enclosure as shown in picture.

    Proudly MADE IN USA.
