  • Low Noise Amplifier 0.7dB NF 1GHz to 6GHz 34dB Gain SMA

    Part Number: LNA5G9GR is a flat gain, high-linearity, ultra low noise amplifier in a small 9/16”x9/16”x0.6” shielded RF enclosure. The LNA provides a 2dB flat gain (peak-to-peak) from 5 to 9 GHz. At 7 GHz, the amplifier typically provides 22 dB gain, +25.5 dBm OIP3 at a 35 mA bias setting, and 1.25 dB noise figure. The LNA can be biased from a single supply +5V~15V.

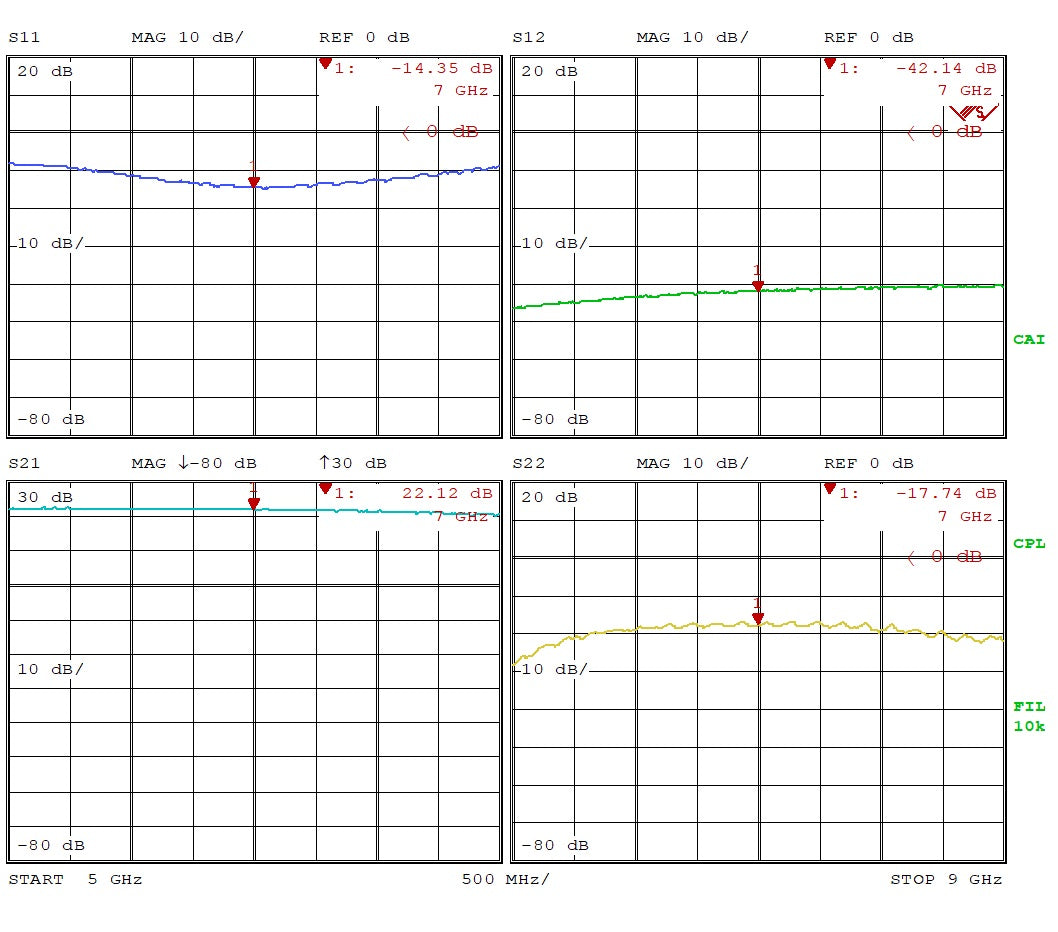

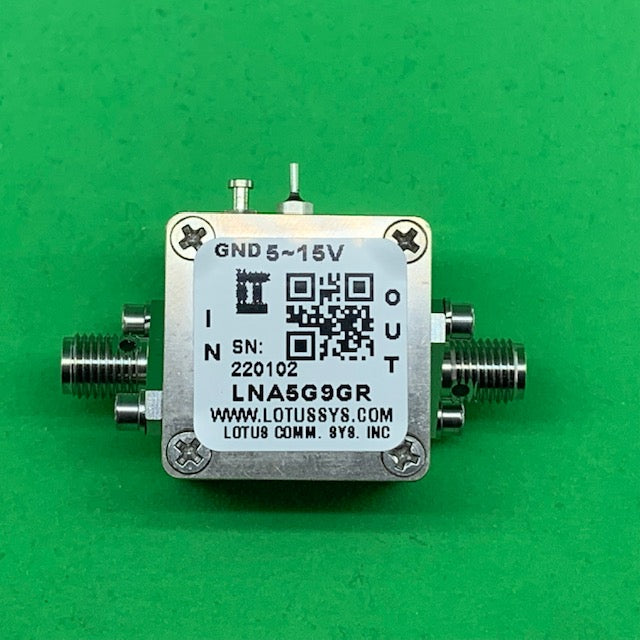

    Listed pictures include Product Picture and S Parameter from 5G to 9GHz.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-005K.

    EMI Shielding (includes Weatherproofing)


    • Frequency Range: 5 GHz to 9 GHz
    • Noise Figure: typical 1.25 dB @ 7 GHz
    • Gain: 22 dB Gain at 7 GHz
    • Output P1dB: +14 dBm CW
    • Output IP3: +26 dBm
    • DC Voltage: +5 to +15V
    • Operating Current: 35 mA
    • Stainless Steel SMA Female Connector
    • ROHS Compliant
    • EMI Shield (Waterproof) Option Available


    • General Purpose Wireless
    • Mobile Infrastructure
    • SDR & Ham Radio
    • Test Instrumentation

    Datasheet & S-Parameters
