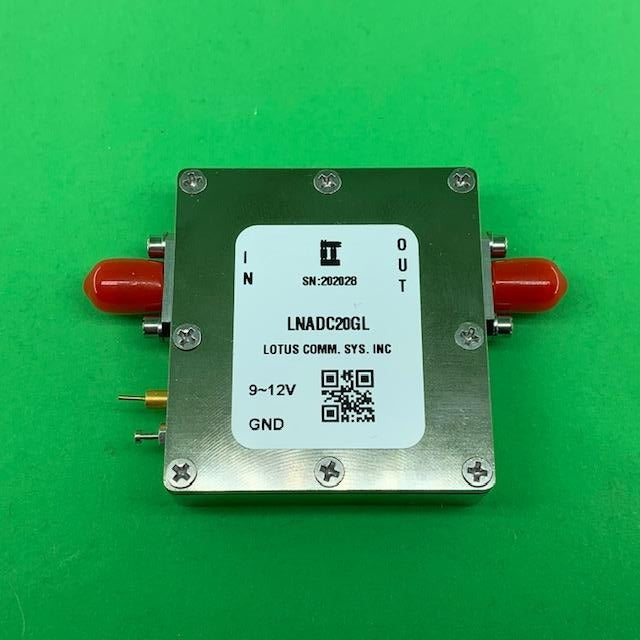

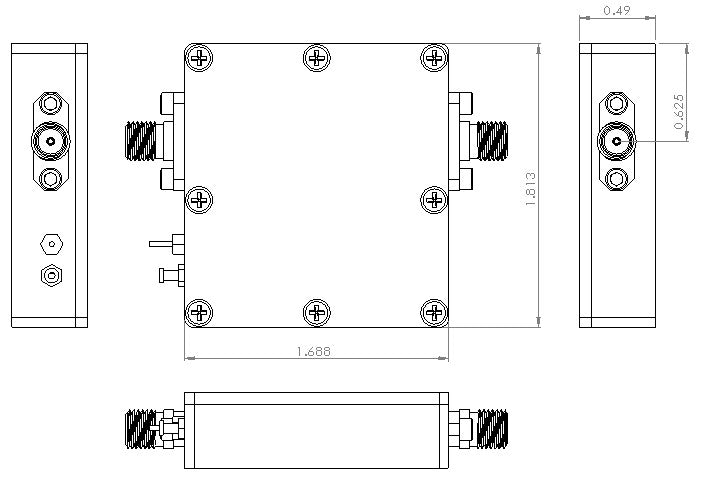

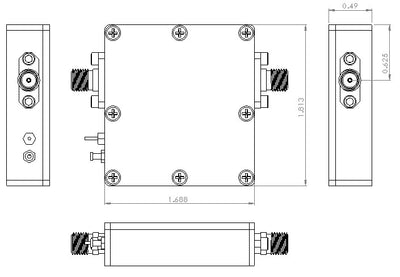

Part Number: LNADC20GL is a broadband, low noise amplifier with 15 dB typical gain from DC to 20 GHz in a small 1.688”x1.813”x0.49” shielded RF enclosure (PN: 4HH6H41C5A2). This LNA also integrates wide band RF Limiter TGL2217-SM as front end for protecting sensitive GaN amplifier CMD192C5 inside. The GaN amplifier is biased by active bias controller HMC980LP4E. The Amplifier has output 1dB compression point of +25 dBm and noise figure of 1.9 dB at 10G GHZ. It weights 2.3 Oz.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.

Collections: Limiting Low Noise Amplifier, Low Noise Amplifier

Features

Frequency Range: DC to 20 GHz
Noise Figure: typical 1.9dB @ 10 GHz
Gain: typical 15dB @ 10 GHz
Output P1dB: 25 dBm
Output IP3: 35 dBm
DC Voltage: +9~+12V
Operating Current: 210mA
Stainless Steel 2.92mm Female Connector
Integrated 10 Watt RF Limiter for protection against high power incident signal
Integrated Active Bias Controller for signal power supply
High Quality Rogers RO4350 RF PCB
ROHS Compliant

Applications

Test Instrumentation
Wideband A/D System
General Purpose Wireless
Radar & VSAT
SDR & Ham Radio

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

LNADC20GL Datasheet
