LNA7G14GFG

Amplifier LNA 1.8dB NF 7GHz to 14GHz 17dB Flat Gain 13dBm P1dB SMA

2 items left

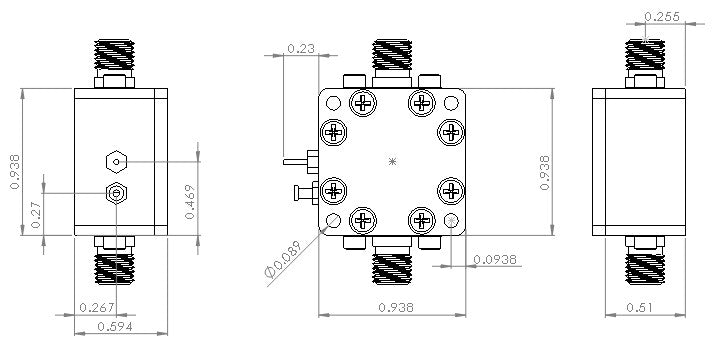

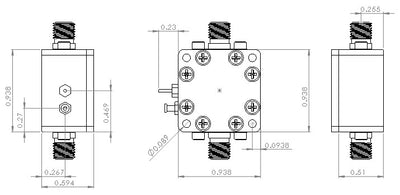

LNA7G14GFG is a broadband, MMIC low noise flat gain amplifier with 17 dB typical gain from 7 to 14 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). Its output 1dB compression point is +13dBm and third order linearity (OIP3) is typically 25 dBm. It has excellent Gain Flatness (+16dB Gain) between 7-14 GHz (+/-1dB).

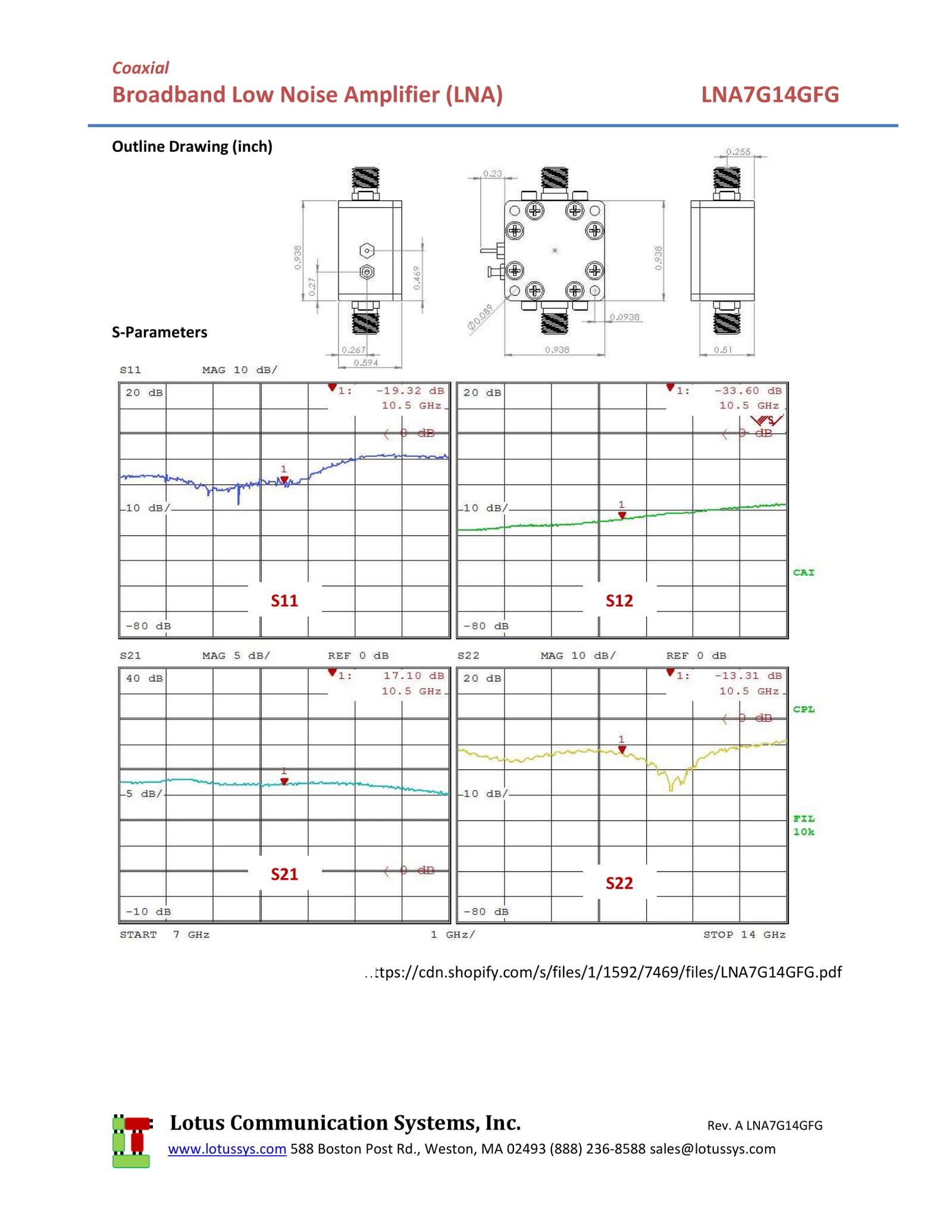

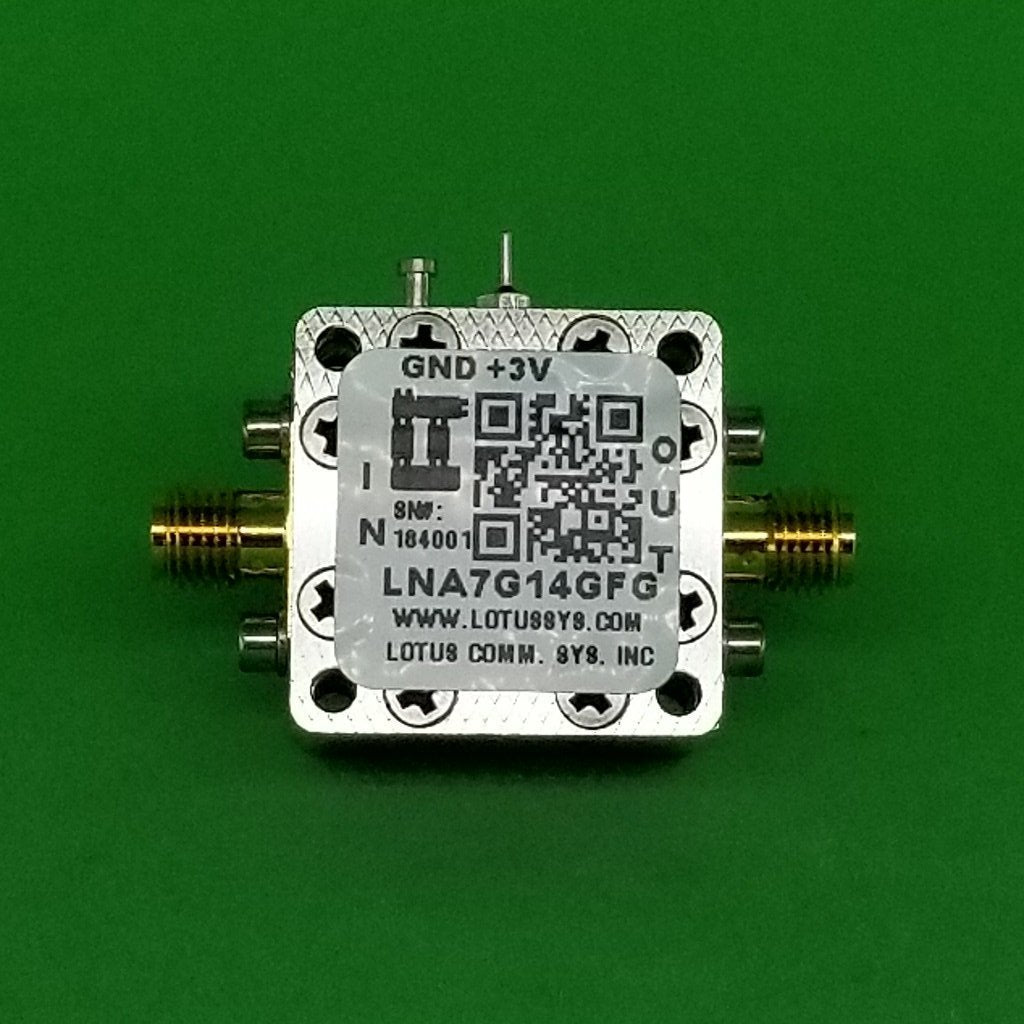

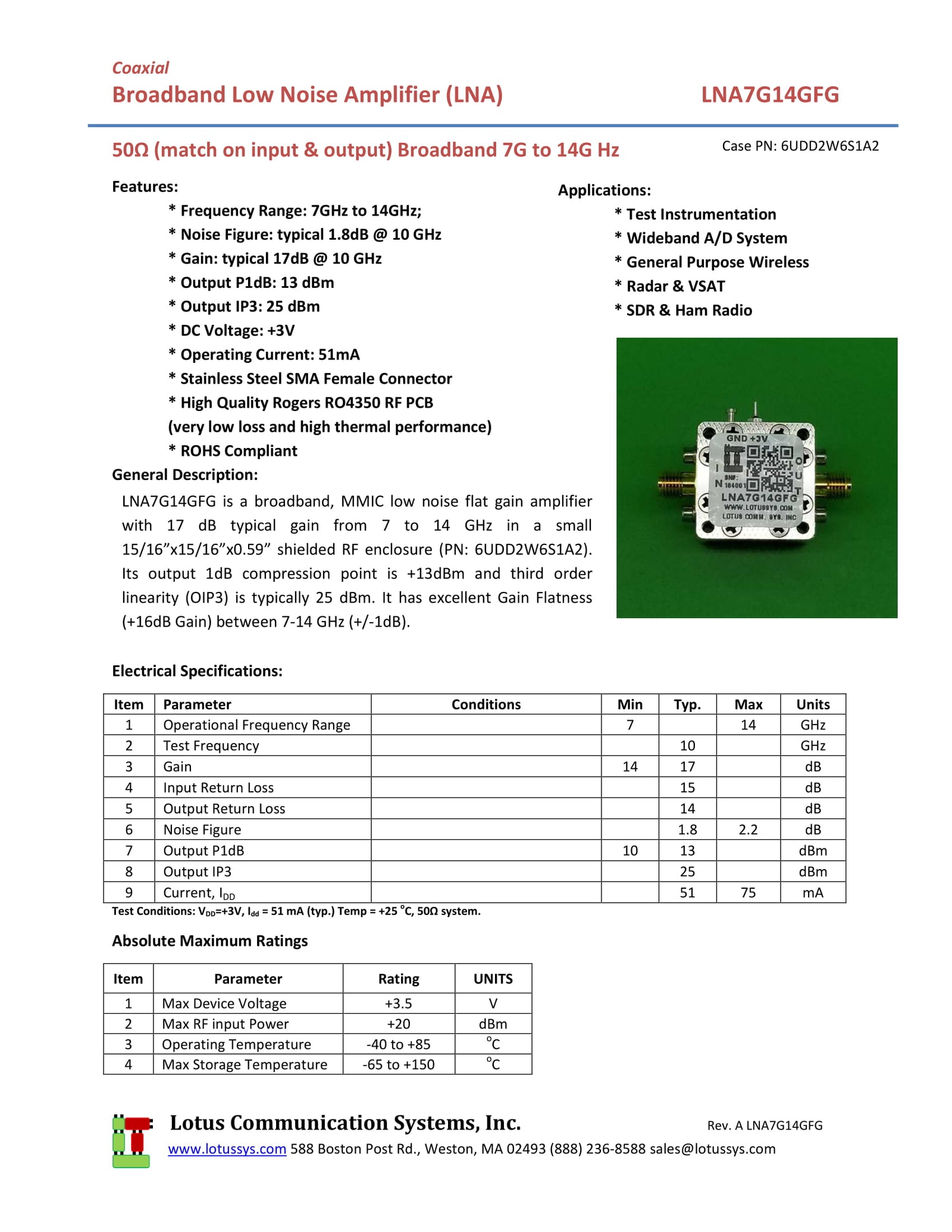

Listed pictures include Product Picture and S Parameter from 7 to 14GHz.

SKU#: AK20_002F


Features

  • Frequency Range: 7GHz to 14GHz
  • Noise Figure: typical 1.8dB @ 10 GHz
  • Gain: typical 17B @ 10 GHz
  • Output P1dB: 13 dBm
  • Output IP3: 25 dBm
  • DC Voltage: +3V
  • Operating Current: 51mA
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Test Instrumentation
  • Wideband A/D System
  • General Purpose Wireless
  • Radar & VSAT
  • SDR & Ham Radio
