  • Low Noise Amplifier 0.4dB NF 0.7GHz to 6GHz 20dB Gain 20dBm P1dB SMA

    Part Number: LNA700M6P0G is a high-linearity, ultra low noise amplifier in a small 15/16”x15/16”x0.48” shielded RF enclosure (PN: 6DD2W6H41SA2). At 1.95 GHz, the amplifier typically provides 20 dB gain, +35 dBm OIP3 at a 70 mA bias setting, and 0.4 dB noise figure. The LNA can be biased from a single supply +3V to +5V.

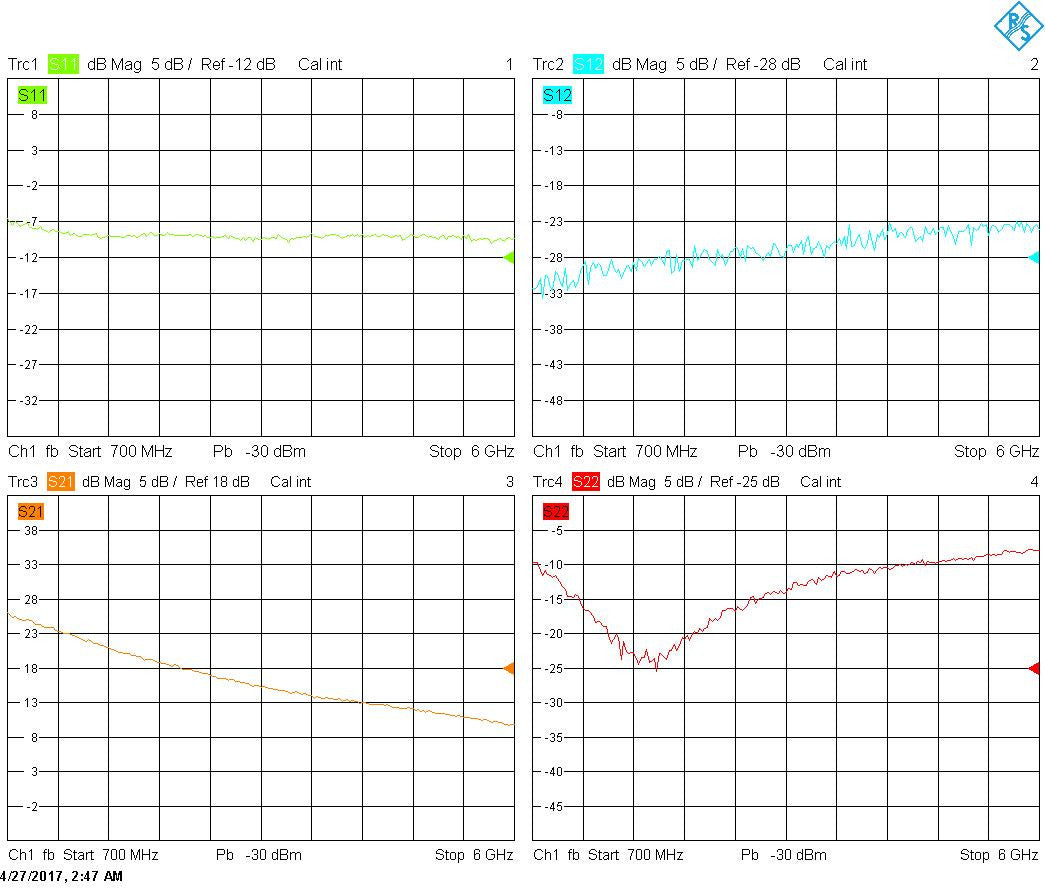

    Listed pictures include Product Picture and S Parameter from 700M to 6GHz.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-0019F-019G.

    EMI Shielding (includes Weatherproofing)
    Wide Voltage Range (+5~15V)
    71 items left


    • Frequency Range: 700 MHz to 6 GHz
    • Noise Figure: typical 0.4 dB @ 1.95 GHz
    • Gain: 20 dB Gain at 1.95 GHz
    • Output P1dB: +22 dBm CW
    • Output IP3: +35 dBm
    • DC Voltage: +3 to +5V
    • Operating Current: 70 mA
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • Wide Voltage Operation & EMI Shield Option Available
    • ROHS Compliant


    • Repeaters/DAS
    • Mobile Infrastructure
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources (PDF Datasheet)
