Low Noise Amplifier 2.5dB NF 6 - 26.5 GHz 20dB Gain 10dBm P1dB 2.92mm
$ 448.00 USD - $ 538.00 USD
Part Number: LNA6G26P5G is a broadband, MMIC low noise amplifier with 20 dB typical gain from 6 to 26.5 GHz in a small 15/16”x15/16”x0.48” shielded RF enclosure (PN: 6UDD2W6H41SMAA2). Its output 1dB compression point is +10dBm and third order linearity (OIP3) is typically 18 dBm.

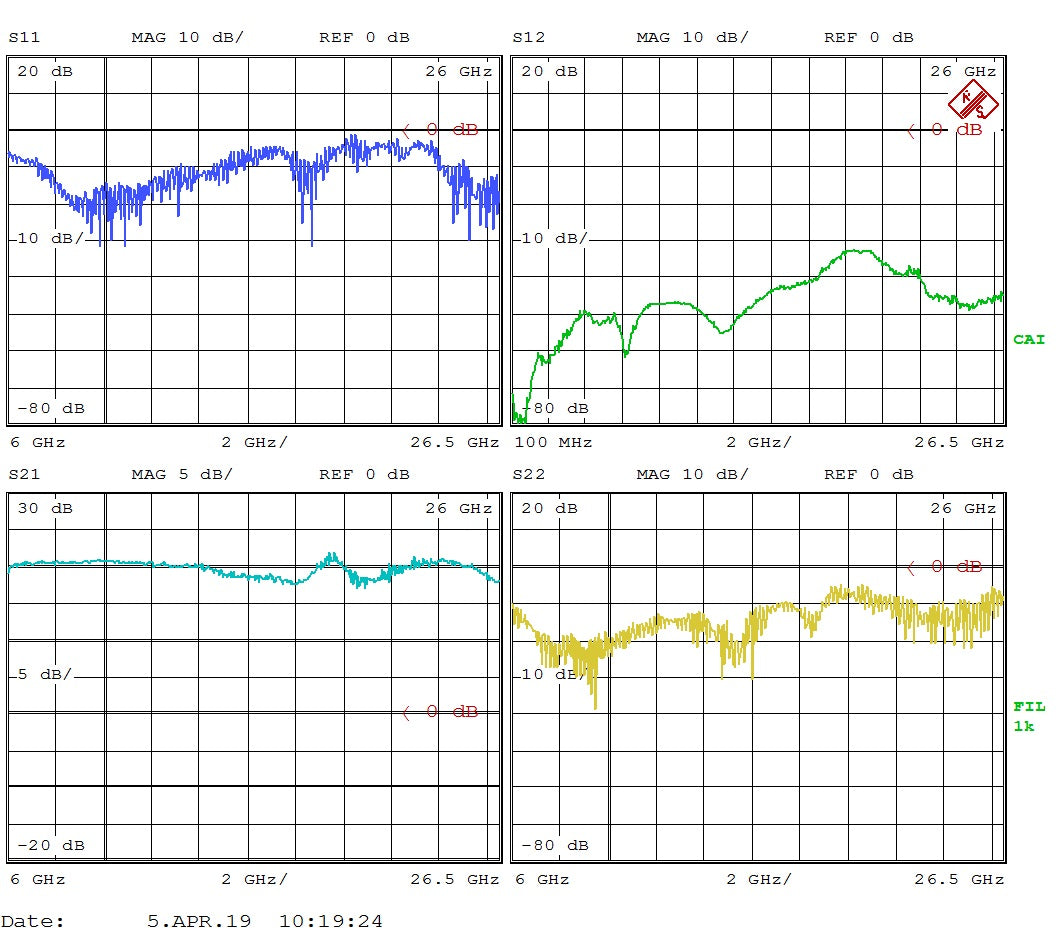

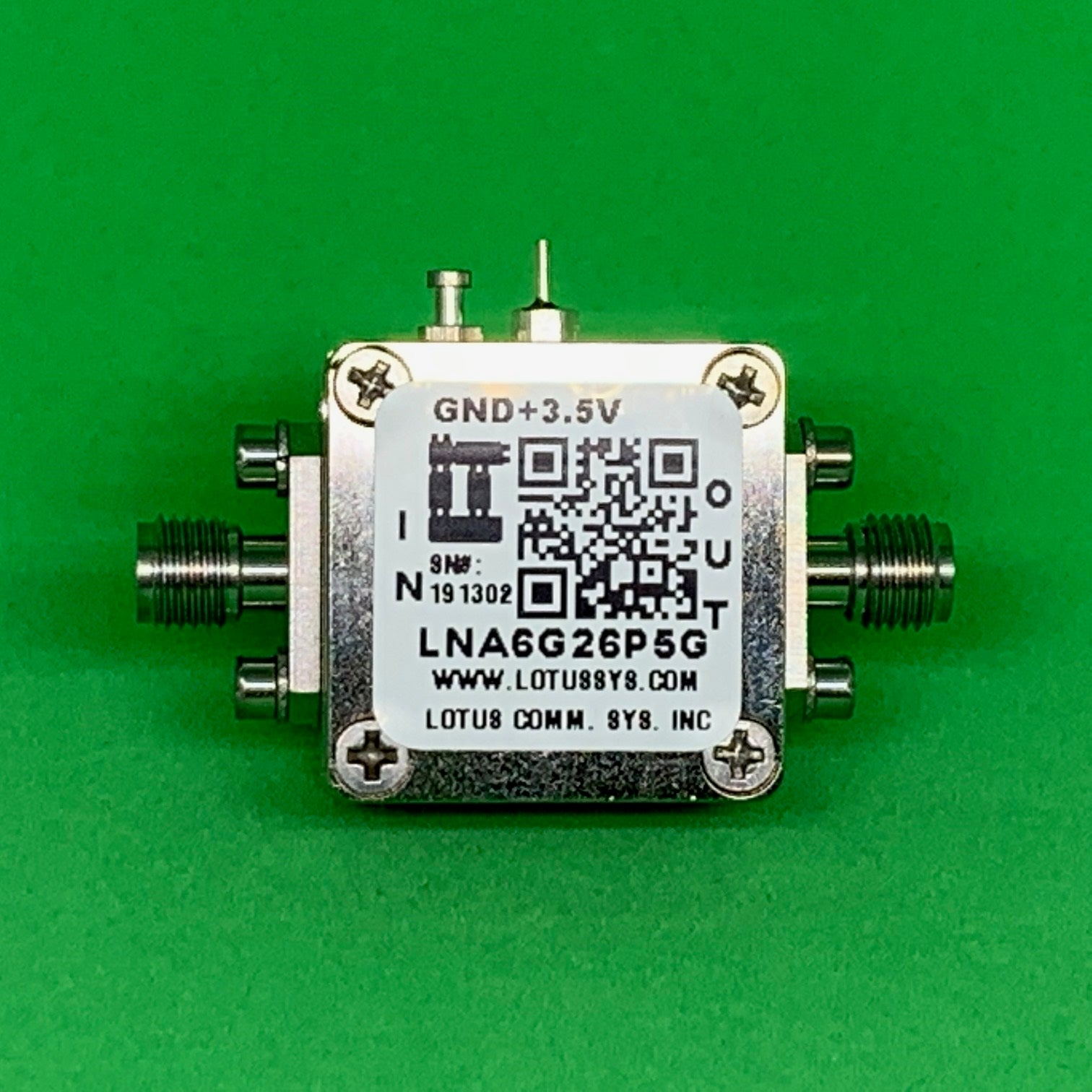

Listed pictures include Product Picture and S Parameter from 6 - 26.5 GHz.
SKU#: AK20-001J.
Features
- Frequency Range: 6 - 26.5 GHz
- Noise Figure: typical 2.5dB
- Gain: typical 20dB
- Output P1dB: 10 dBm
- Output IP3: 18 dBm
- DC Voltage: +3.5V
- Operating Current: 45mA
- Stainless Steel 2.92mm Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
- EMI Shield (Waterproof) Options Available (PN#: LNA6G26P5GW)
Applications
- Test Instrumentation
- Wideband A/D System
- General Purpose Wireless
- Radar & VSAT
- SDR & Ham Radio
