$ 299.00 USD
PN#: LNA6G20G is a broadband, MMIC low noise amplifier with 22 dB typical gain from 6 to 20 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). Its output 1dB compression point is +11dBm and third order linearity (OIP3) is typically 21 dBm. It has excellent Gain Flatness (+22dB Gain) between 6-20 GHz (+/-2dB).

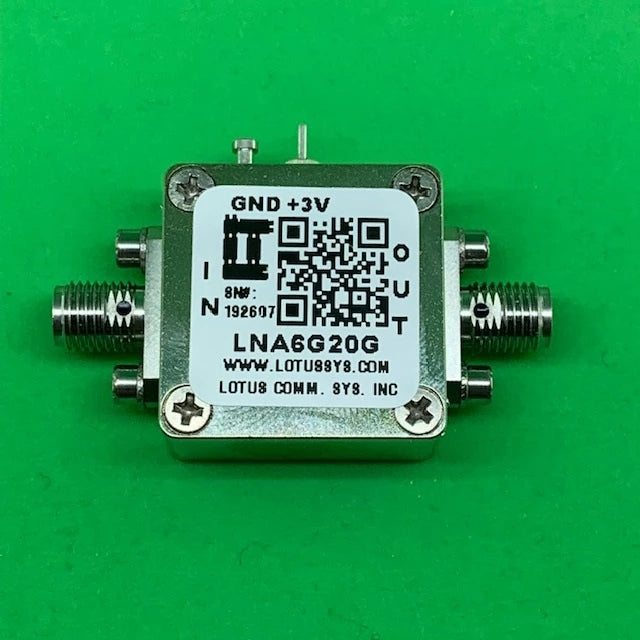

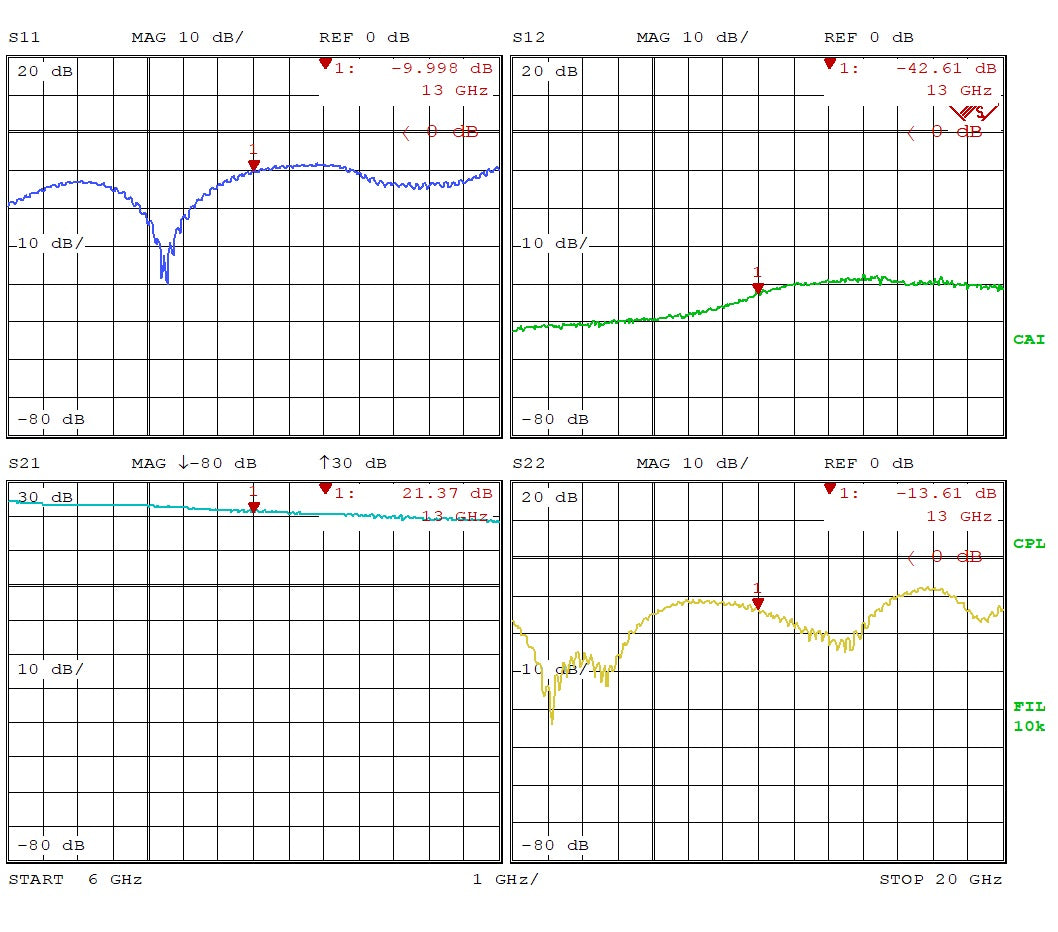

Listed pictures include Product Picture and S Parameter from 6 to 20GHz.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-002E.
LNA6G20G Datasheet
Collections: Low Noise Amplifier
