Part Number: LNA6G18GPR is a broadband, MMIC low noise amplifier with a unique combination of high gain, positive gain slope, high directivity and low noise figure in a small 15/16”x15/16”x0.49” shielded RF enclosure. High directivity eliminates the need for expensive isolator and positive gain eliminates the need for equalization.

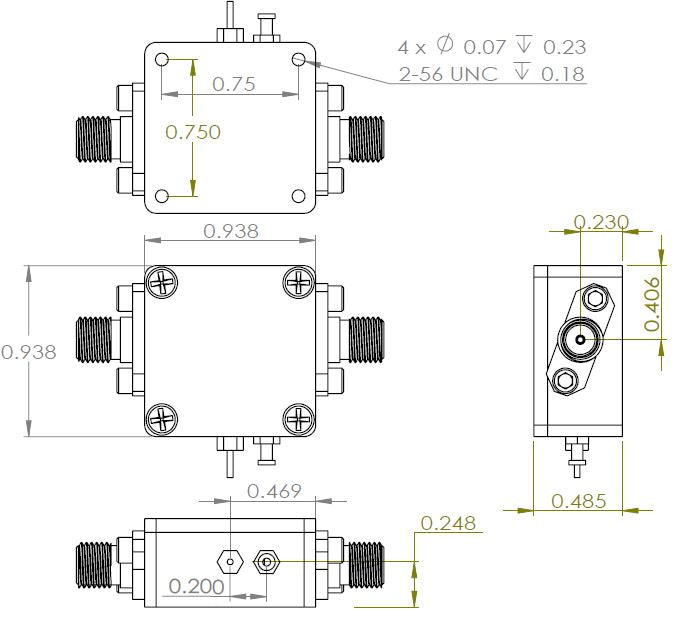

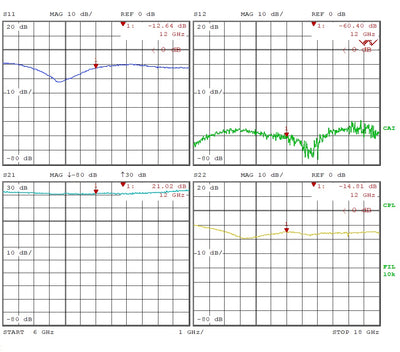

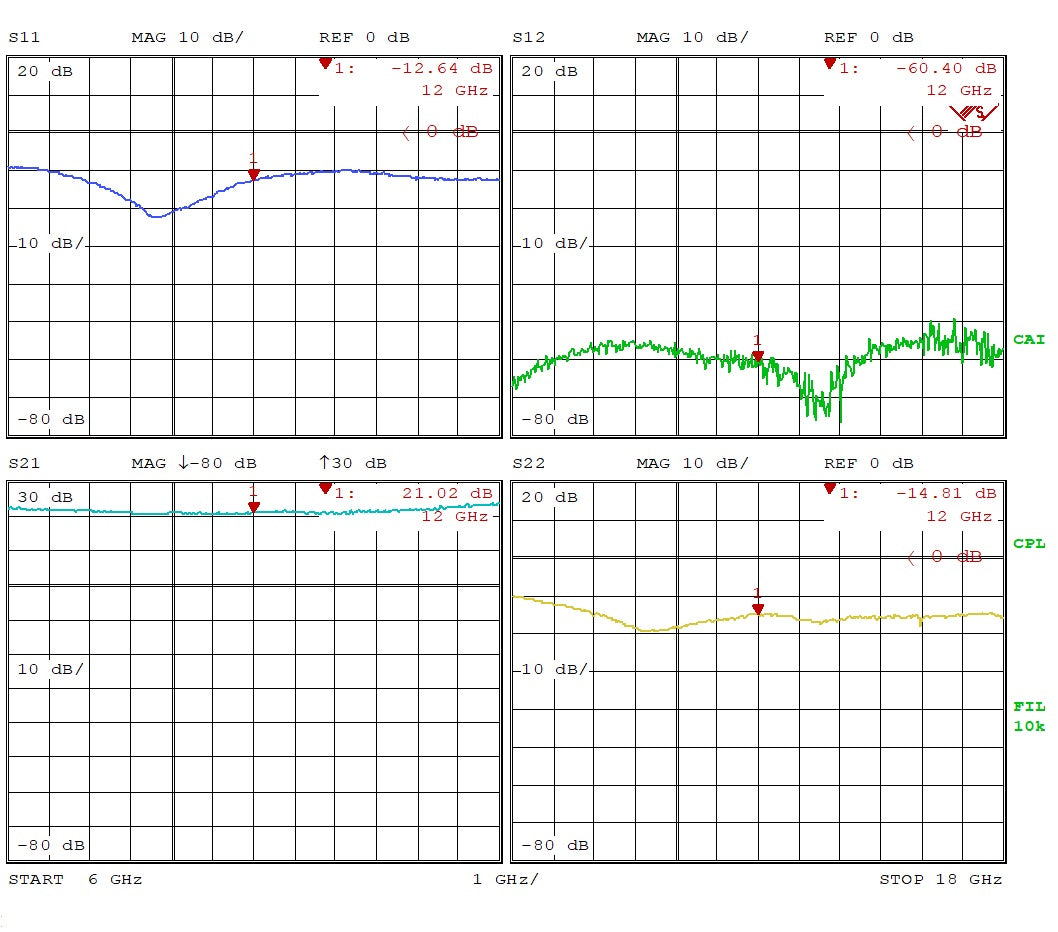

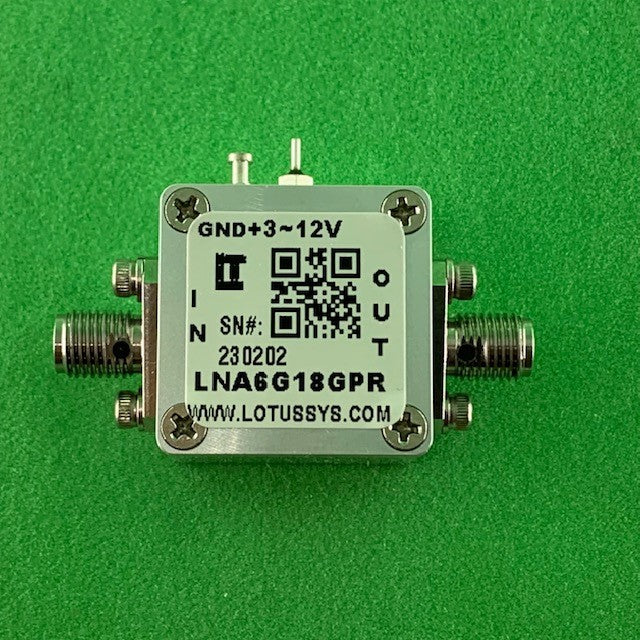

Listed pictures include Product Picture and S Parameter from 6G to 18GHz.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-016G.

Collections: Low Noise Amplifier

Features

Frequency Range: 6 GHz to 18 GHz
Excellent Noise Figure: typical 1.2 dB @ 15 GHz
Positive Gain Slope: 21dB @ 12 GHz
High Directivity: 33 dB Typ.
Output P1dB: 10 dBm
Output IP3: 22 dBm
DC Voltage: +3~12V with Operating Current: 58mA
EMI Shield & Waterproof Option Available (PN#: LNA6G18GPRW)
Stainless Steel SMA Female Connector
ROHS Compliant

Applications

General Purpose Wireless
Mobile Infrastructure
Radar * VSAT
SDR & Ham Radio
Test Instrumentation

Datasheet & S-Parameter

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

LNA6G18GPR Datasheet

S-Parameter (.S2P)
