Amplifier LNA 1.5dB NF 6GHz to 18GHz 22dB Gain 11dBm P1dB SMA

1 item left

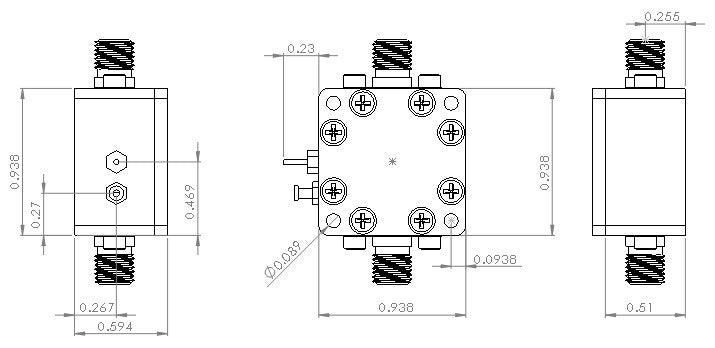

LNA6G18G is a broadband, MMIC low noise amplifier with 22 dB typical gain from 6 to 18 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2).  Its output 1dB compression point is +11dBm and third order linearity (OIP3) is typically 23 dBm. It has excellent Gain Flatness (+21dB Gain) between 6-16 GHz (+/-1dB).

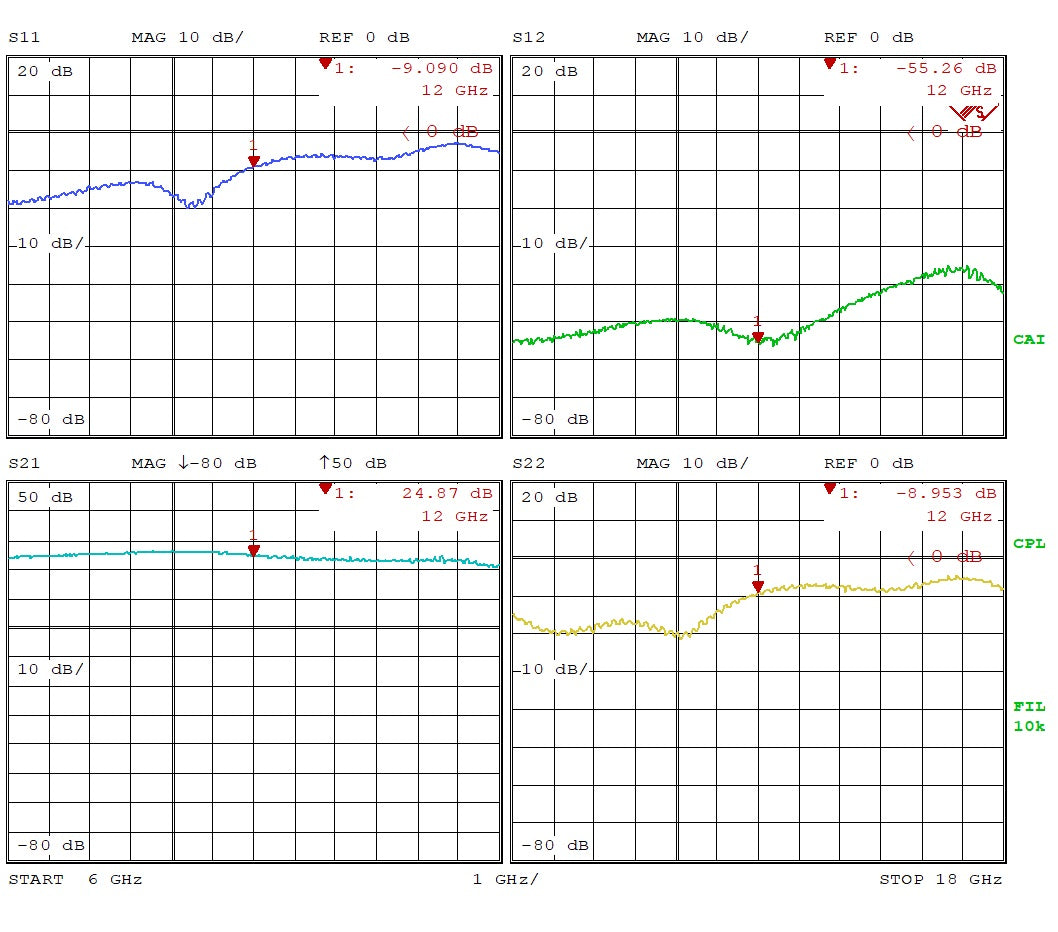

Listed pictures include Product Picture and S Parameter from 6 to 18GHz.

Features:
    * Frequency Range: 6GHz to 18GHz;
    * Noise Figure: typical 1.5dB @ 10 GHz
    * Gain: typical 22B @ 10 GHz
    * Output P1dB: 11 dBm
    * Output IP3: 23 dBm
    * DC Voltage: +3V
    * Operating Current: 52mA
    * Stainless Steel SMA Female Connector
    * High Quality Isola-Tera RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant

Applications:
    * Test Instrumentation
    * Wideband A/D System
    * General Purpose Wireless
    * Radar & VSAT
    * SDR & Ham Radio

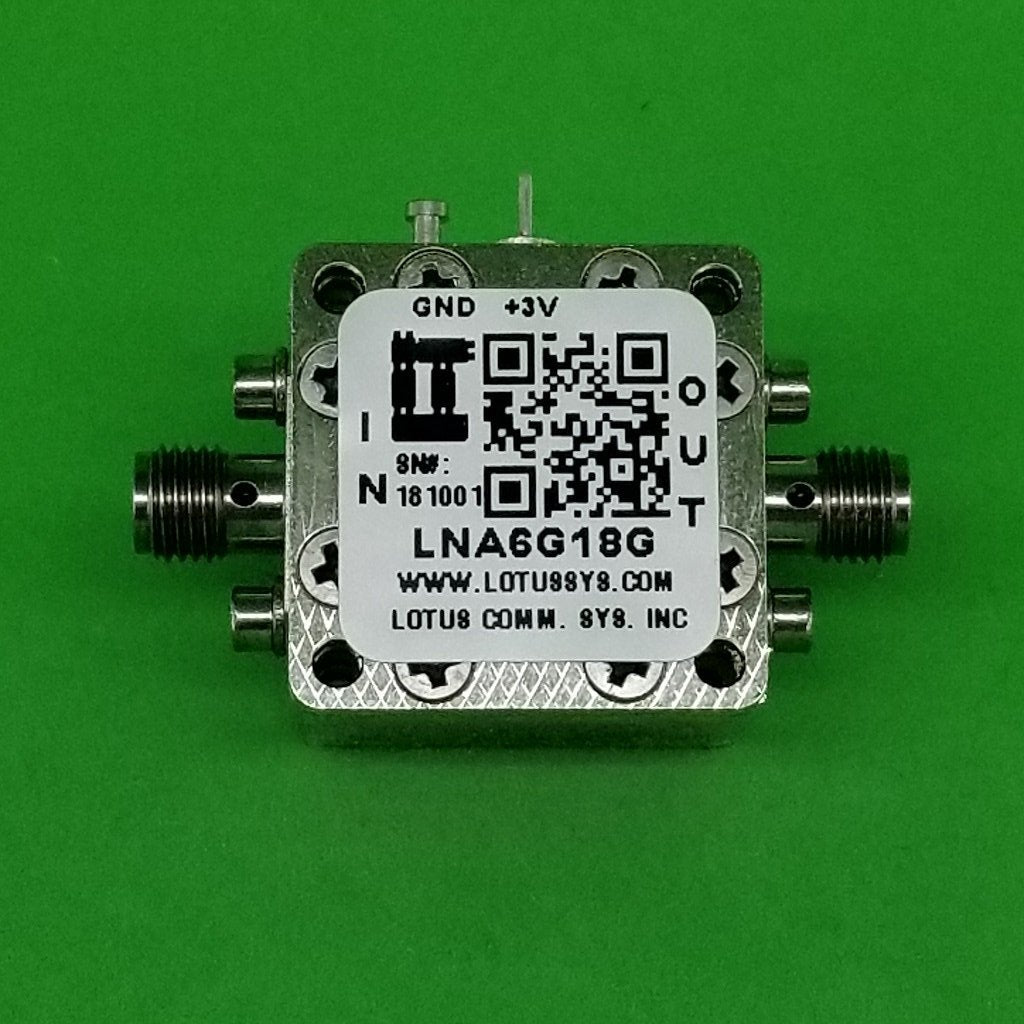

This LNA includes the RF Enclosure as shown in picture.

Click https://cdn.shopify.com/s/files/1/1592/7469/files/LNA6G18G.pdf to see detailed specification.

Proudly MADE IN USA.
