  • Low Noise Amplifier 1.7dB NF 6GHz to 17GHz 19dB Gain 15dBm P1dB SMA

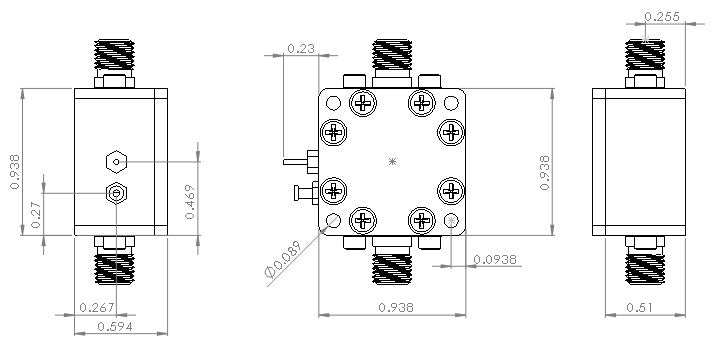

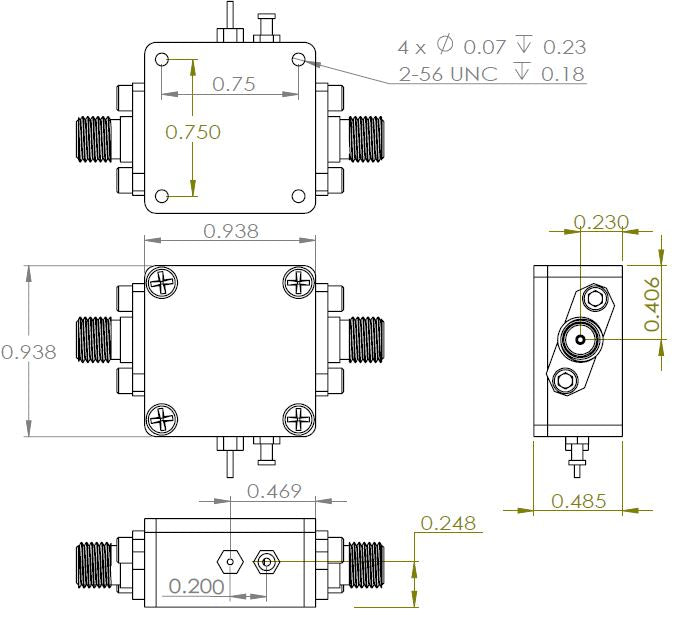

    LNA6G17G is a broadband, GaAs MMIC low noise amplifier with 19 dB typical gain from 6 to 17 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). Its output 1dB compression point is +14.5 dBm and third order linearity (OIP3) is typically 25 dBm.

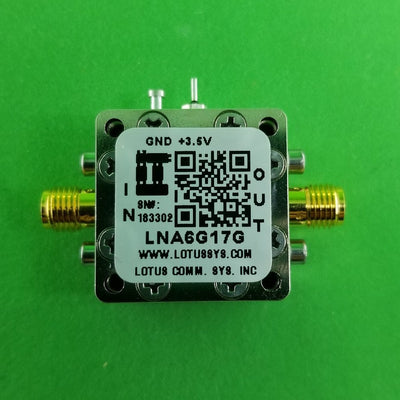

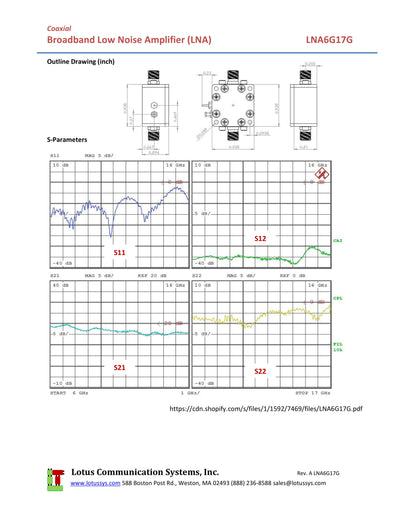

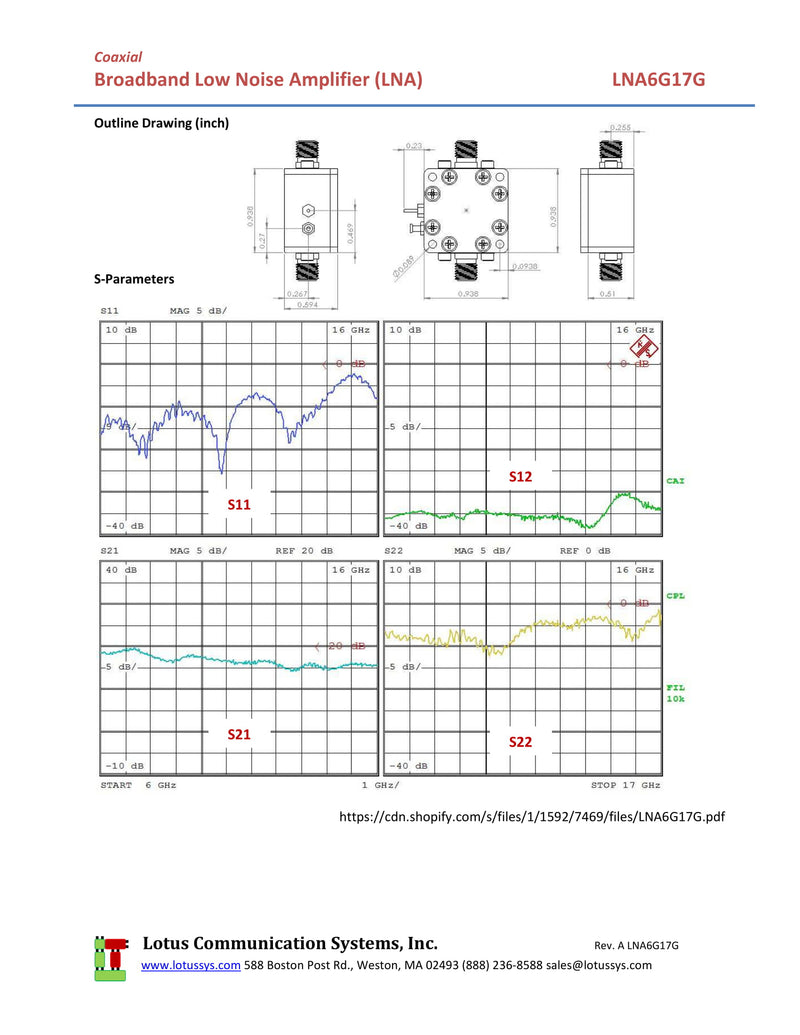

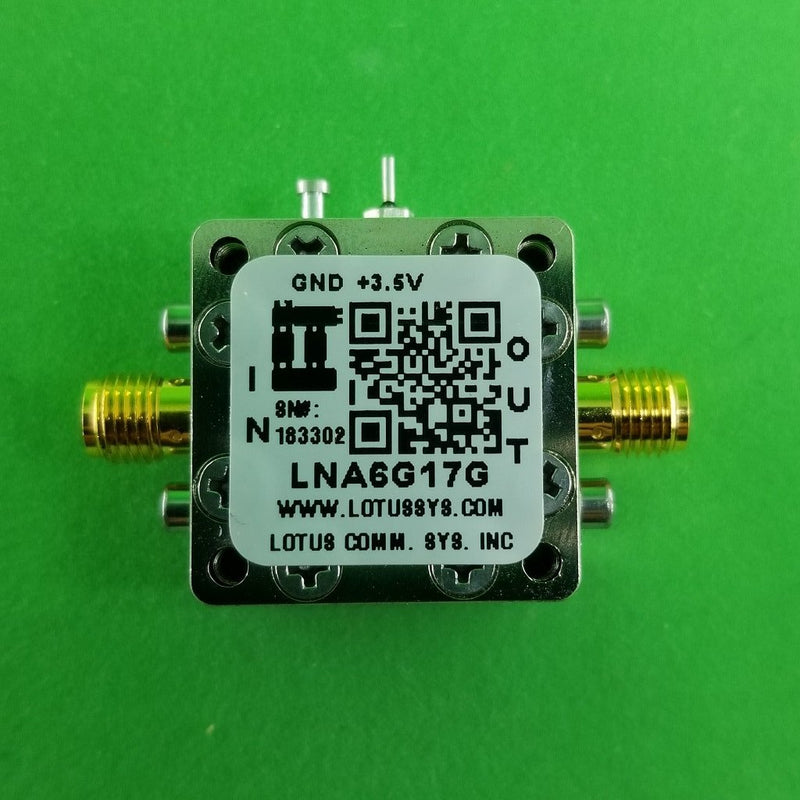

    Listed pictures include Product Picture and S Parameter from 6 to 17GHz.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20_003C

    1 item left

    Features

    • Frequency Range: 6GHz to 17GHz
    • Noise Figure: typical 1.7dB
    • Gain: typical 18.5dB
    • Output P1dB: 14.5 dBm
    • Output IP3: 25 dBm
    • DC Voltage: +3.5V @ 80mA
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Test Instrumentation
    • Wideband A/D System
    • General Purpose Wireless
    • Radar & VSAT
    • SDR & Ham Radio

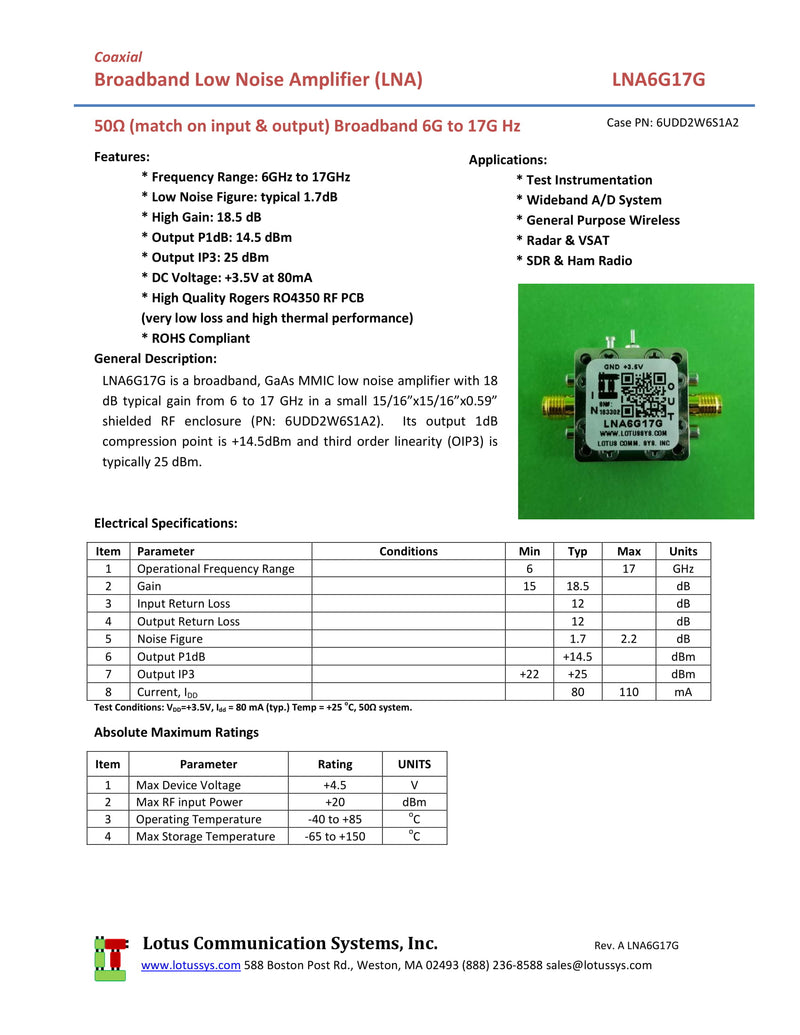

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA6G17G Datasheet
