  • Broadband Low Noise Amplifier with LDO 0.9dB NF 600M~6GHz 21dB Flat Gain SMA

    Part Number: LNA600M6GFGR is a flat gain, high-linearity, ultra low noise amplifier in a small 15/16”x1-1/8”x0.59” shielded RF enclosure (PN: 6UDE2W6S1A2). It has integrated LDO Linear Regulator with industrial leading low noise (11µv rms).  The LNA provides a 2dB flat gain (peak-to-peak) from 3 to 6 GHz. At 5.5 GHz, the amplifier typically provides 21 dB gain, +35.5 dBm OIP3 at a 56 mA bias setting, and 0.95 dB noise figure. The LNA can be biased from a single supply +5V to +15V. It can be powered by wide categories of power supplies (e.g., USB, Car Battery etc.).

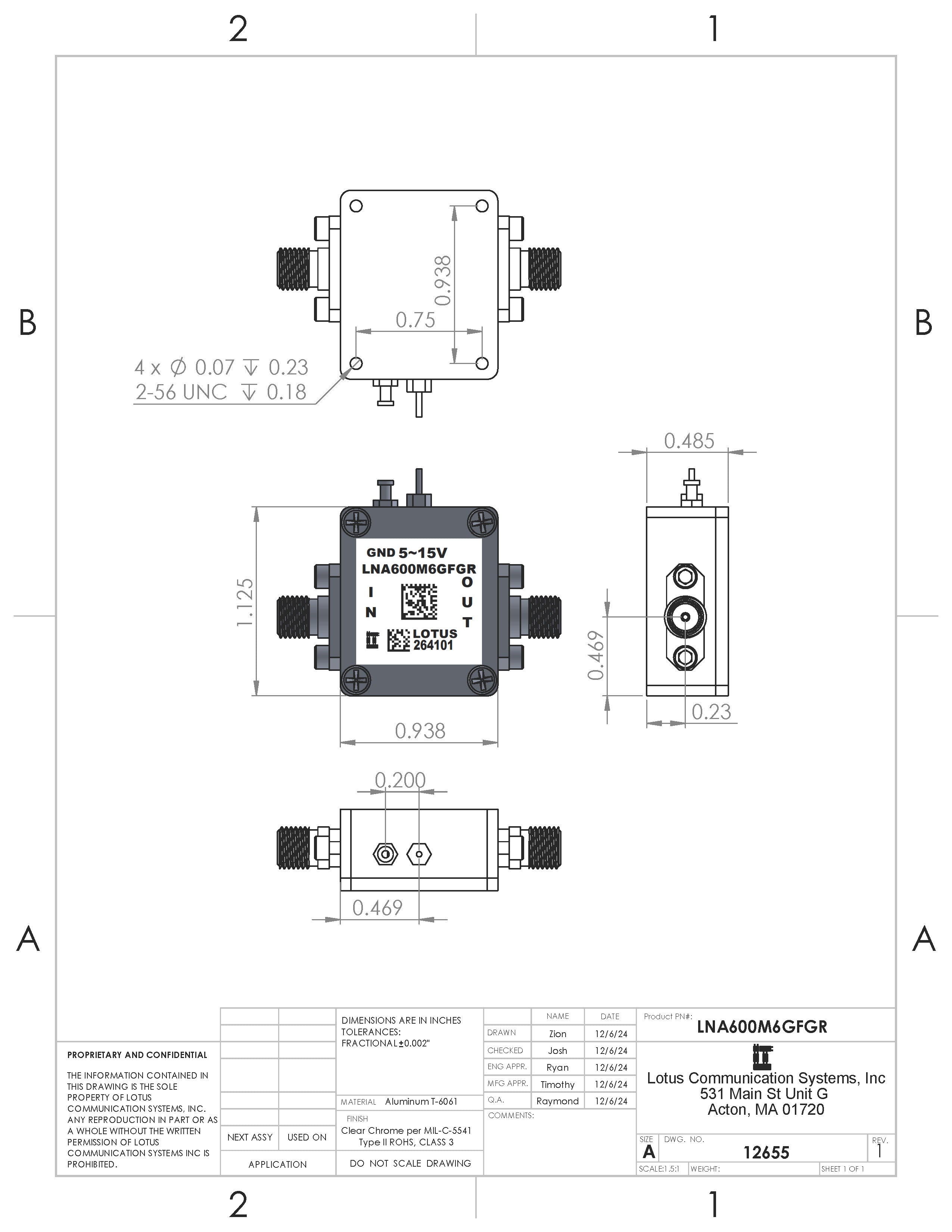

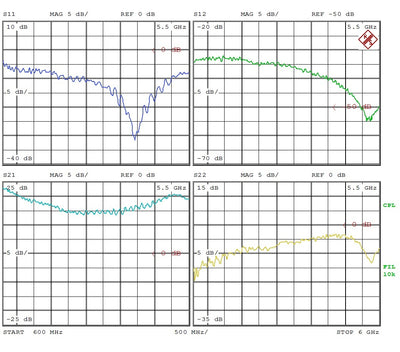

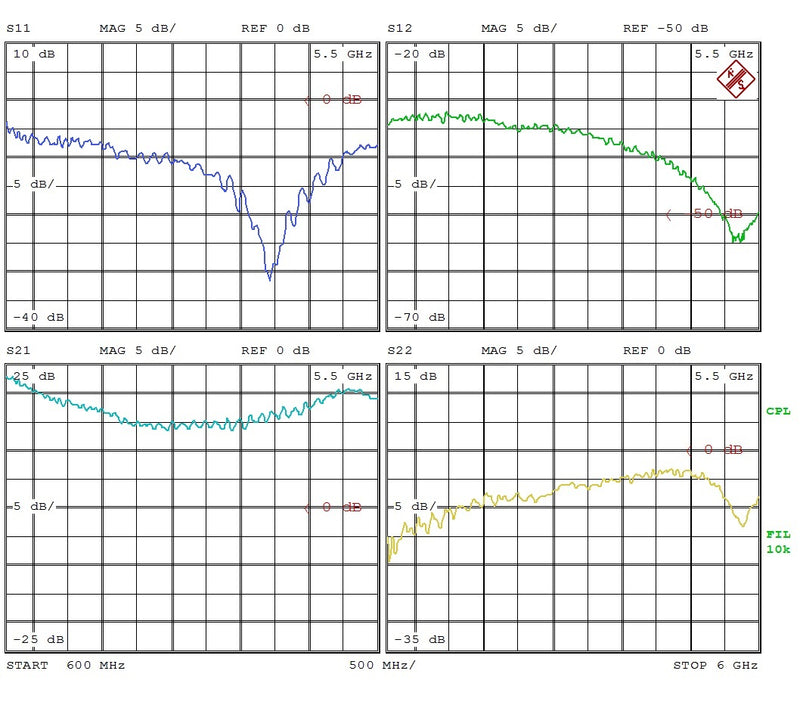

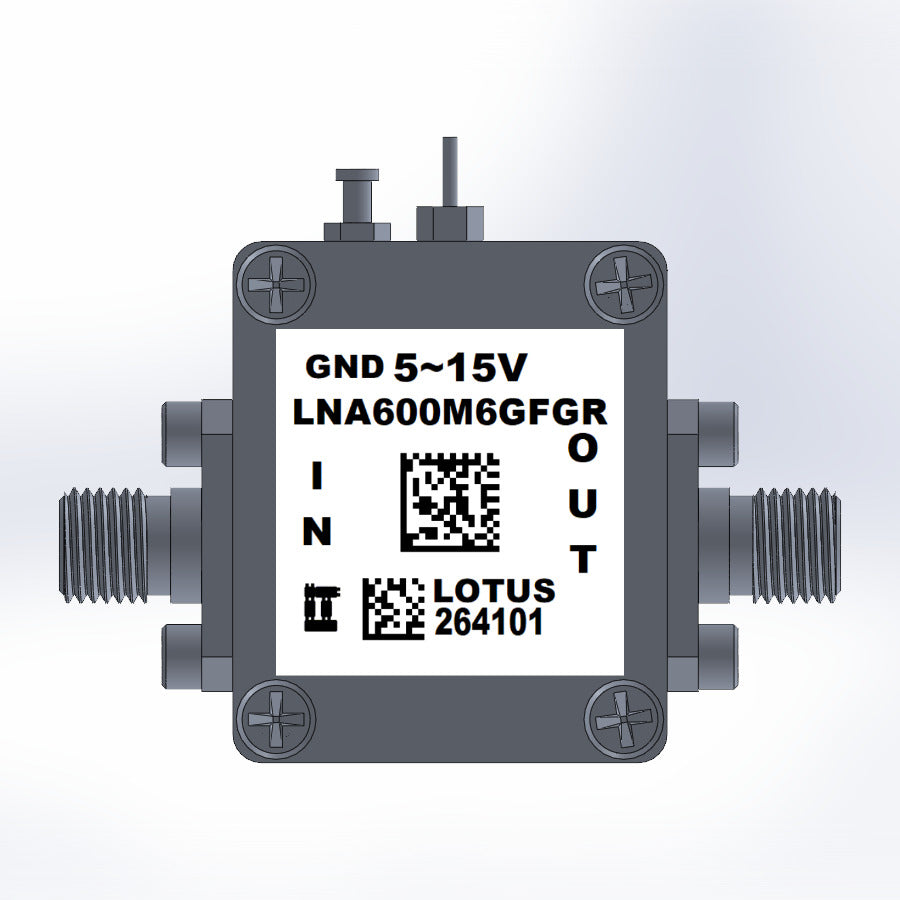

    Listed pictures include Product Picture and S Parameter from 600M to 6GHz.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-020T.

    32 items left

    Features

    • Frequency Range: 600 MHz to 6 GHz
    • Noise Figure: typical 0.95 dB @ 5.5 GHz
    • Gain: 21 dB Gain at 5.5 GHz
    • Output P1dB: +19 dBm CW
    • +35.5 dBm OIP3 at 65mA current
    • DC Voltage: +5 to +15V
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • 4.5G, 5G Massive MIMO
    • Repeaters/DAS
    • Mobile Infrastructure
    • LTE/WCDMA/CDMA/GSM
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA600M6GFGR Datasheet
