  • LNA (LNA600M6GFG2S) 0.9dB NF 0.6~6GHz 39dB Gain - 2 Stage High Gain

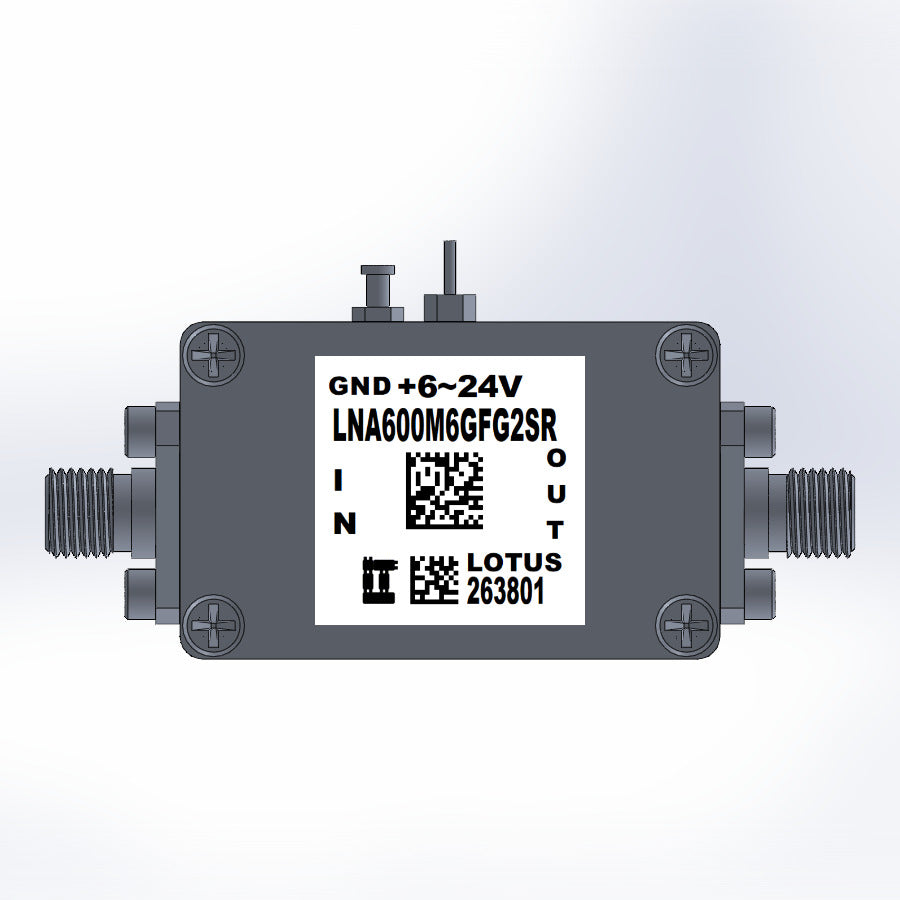

    PN#: LNA600M6GFG2S is a 2 stage, flat gain, high-linearity, ultra low noise amplifier in a small 1-1/2”x15/16”x0.59” shielded RF enclosure (PN: 6UGD2W6S1A2). The LNA provides a +/2dB flat gain (peak-to-peak) from 2G to 4GHz. At 5.35 GHz, the amplifier typically provides 39 dB gain, +35.5 dBm OIP3 at a 120 mA bias setting, and 0.85 dB noise figure. The LNA can be biased from a single supply +5V. Listed pictures include Product Picture and S Parameter from 600M to 6 GHz. SKU#: AK20-001C.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    13 items left

    Features

    • Frequency Range: 600 MHz to 6 GHz
    • Noise Figure: typical 0.85 dB @ 5.35 GHz
    • Gain: 39 dB Gain at 5.35 GHz
    • Output P1dB: +19 dBm CW
    • +35.5 dBm OIP3 at 120mA current
    • DC Voltage: +5V
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • 4.5G, 5G Massive MIMO
    • Repeaters/DAS
    • Mobile Infrastructure
    • LTE/WCDMA/CDMA/GSM
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA600M6GFG2S Datasheet
