  • Broadband Ultra Low Noise Amplifier with LDO 0.6dB NF 600M~4.2GHz 19dB Flat Gain

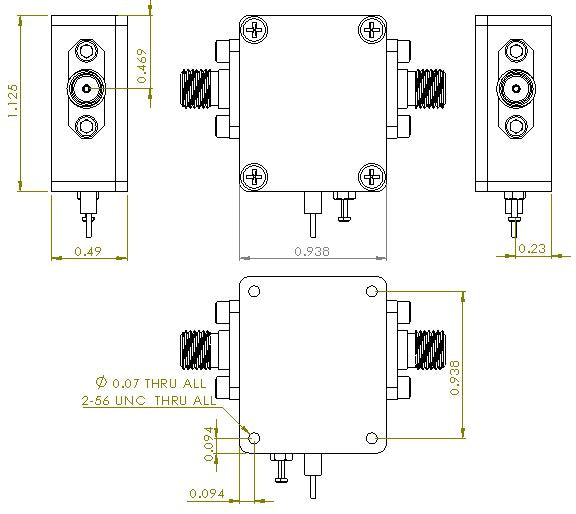

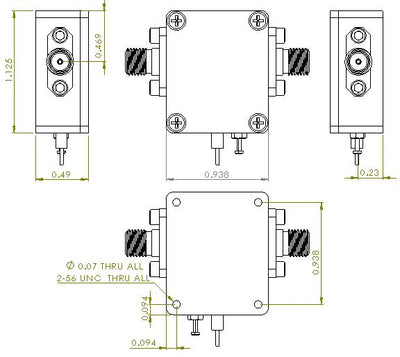

    Part Number: LNA600M4P2GR is flat-gain, high-linearity, ultra-low noise amplifier in a small 15/16”x1-1/8”x0.48” shielded RF enclosure. It has integrated LDO Linear Regulator with industrial leading low noise (11µv rms). The LNA provides a gain flatness of 2 dB (peak-to-peak) over a wide bandwidth from 1.5 to 3.6GHz.  At 2.6 GHz, the amplifier typically provides 20 dB gain, +39.5 dBm OIP3 at a 65 mA bias setting, and 0.6 dB noise figure. The LNA can be biased from a single positive supply ranging from +5 to +15 volts. It can be powered by wide categories of power supplies (e.g., USB, Car Battery etc.).

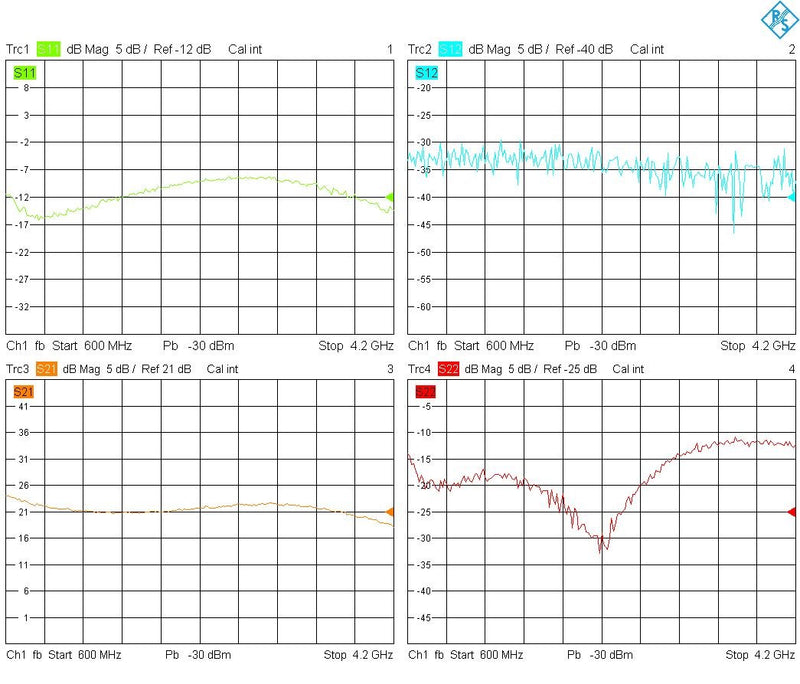

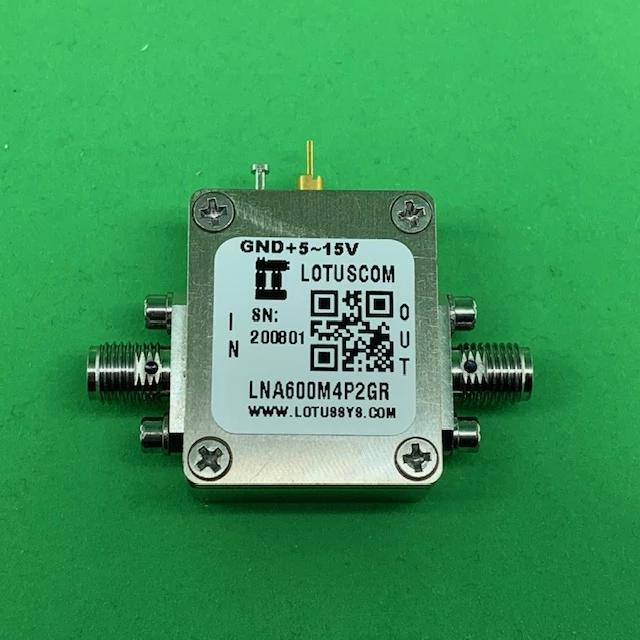

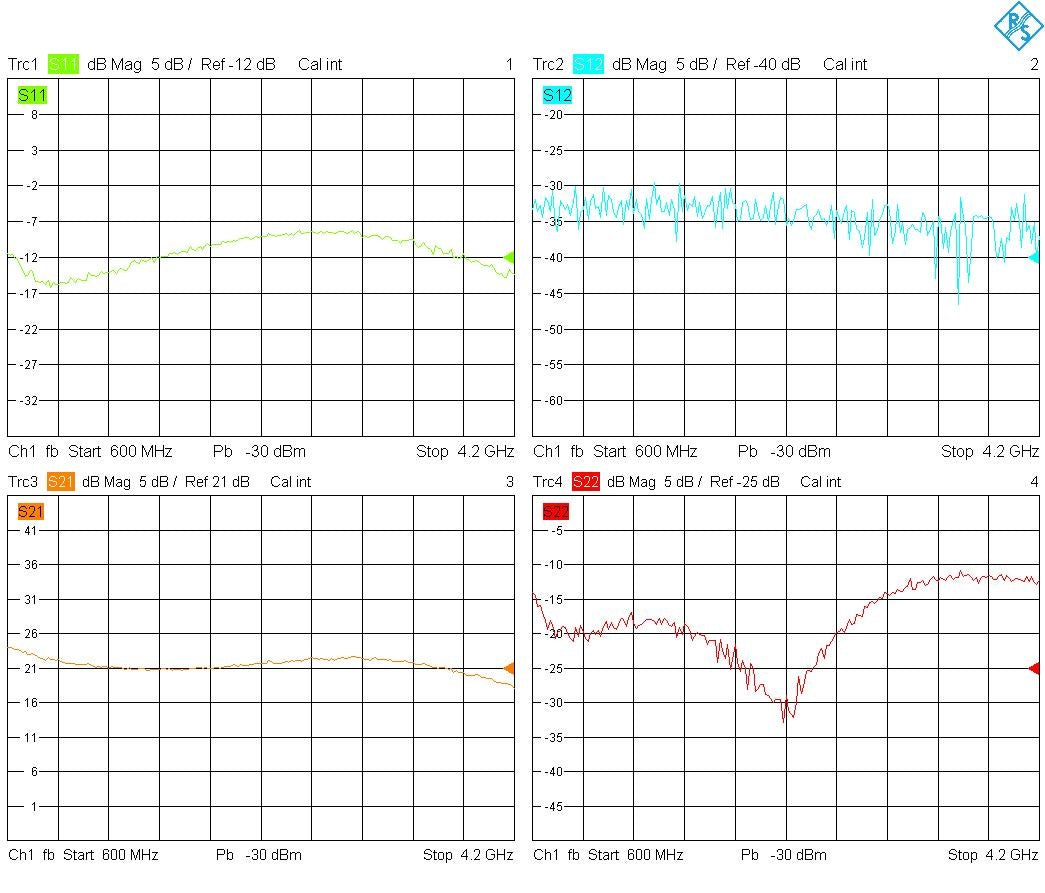

    Listed pictures include Product Picture and S Parameter from 600M to 4.2GHz. SKU#: AK20-002Q.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    2 items left

    Features

    • Frequency Range: 600 MHz to 4.2 GHz
    • Noise Figure: typical 0.6 dB @ 2.6GHz
    • Gain: >20 dB Gain across 1.5 to 3.8 GHz
    • Flat 2dB gain across 1.5 to 3.6GHz
    • Output P1dB: +19 dBm CW
    • +37 dBm OPI3 at 65mA current
    • DC Voltage: +5 to +15V
    • Stainless Steel SMA Female Connector
    • High Quality RO4350 RF PCB (very low loss and high thermal performance)
    • ROHS Compliant

    Applications

    • Repeaters/DAS
    • Mobile Infrastructure
    • LTE/WCDMA/CDMA/GSM
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA600M4P2GR Datasheet
