  • Low Noise Amplifier 0.67dB NF 600MHz to 4.2GHz 19dB Gain 21dbm P1dB 2dB Flat Gain SMA

    Part Number: LNA600M4P2GH is a flat-gain, high-linearity, ultra low noise amplifier in a small 15/16”x15/16”x0.48” shielded RF enclosure (PN: 6UDD2W6H41SMAA2). The LNA provides 2dB flat gain (peak-to-peak) over a wide bandwidth from 1.5 to 4 GHz. At 2.6 GHz, the LNA typically provides 20 dB gain, high +41.5 dBm output IP3 at a 120 mA bias setting, and 0.6 dB noise figure. The LNA can be biased from +3.3V to +5V.

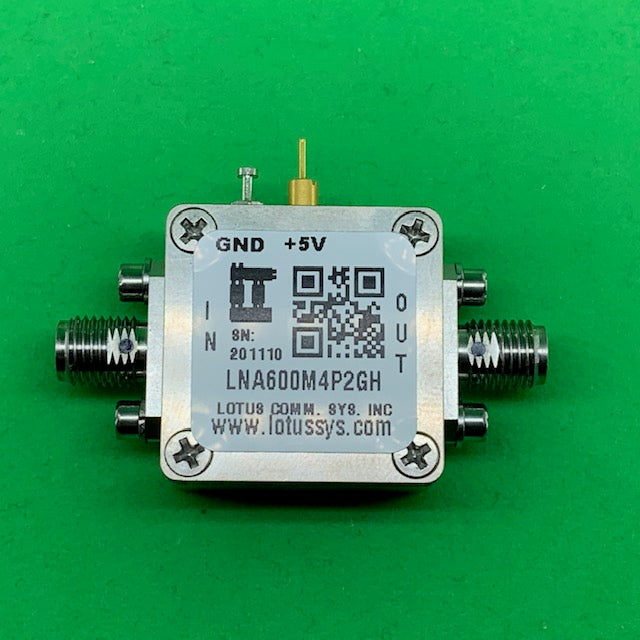

    Listed pictures include Product Picture and S Parameter from 600M to 4.2 GHz.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK28-002I.

    8 items left


    • Frequency Range: 0.6 - 4.2 GHz
    • Noise Figure: 0.67dB @ 2.6 GHz
    • Gain: >19 dB gain across 1.5 to 4 GHz
    • Output P1dB: +21.7 dBm
    • Output IP3: +41.5 dBm
    • DC Voltage: +3.3V to +5V
    • Operating Current: 120mA
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant


    • Repeaters/DAS
    • Mobile Infrastructure
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA600M4P2GH Datasheet
