AK20_003C

Amplifier LNA 1.8dB NF 5GHz to 11GHz 20dB Gain 16dBm P1dB SMA

2 items left

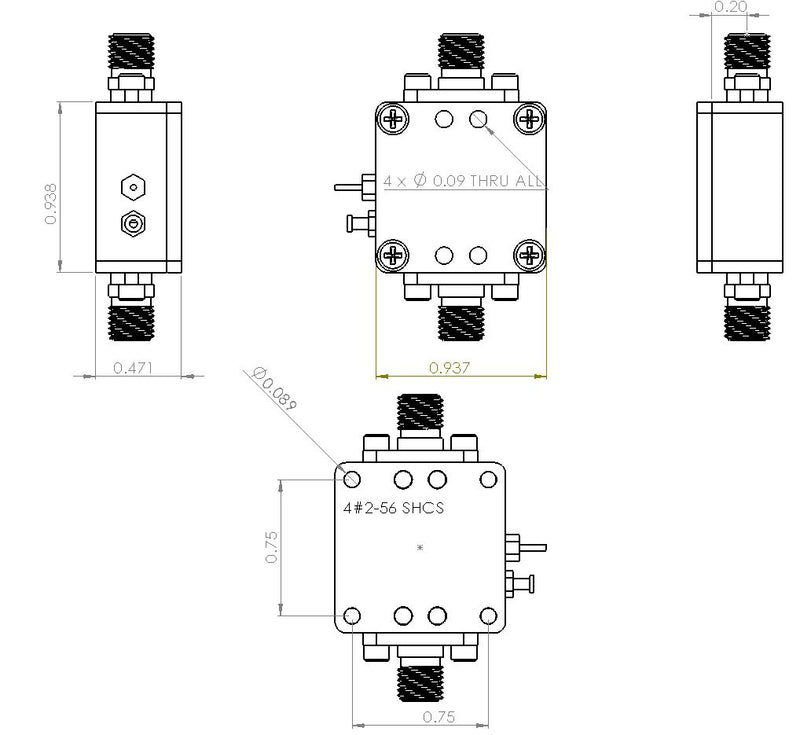

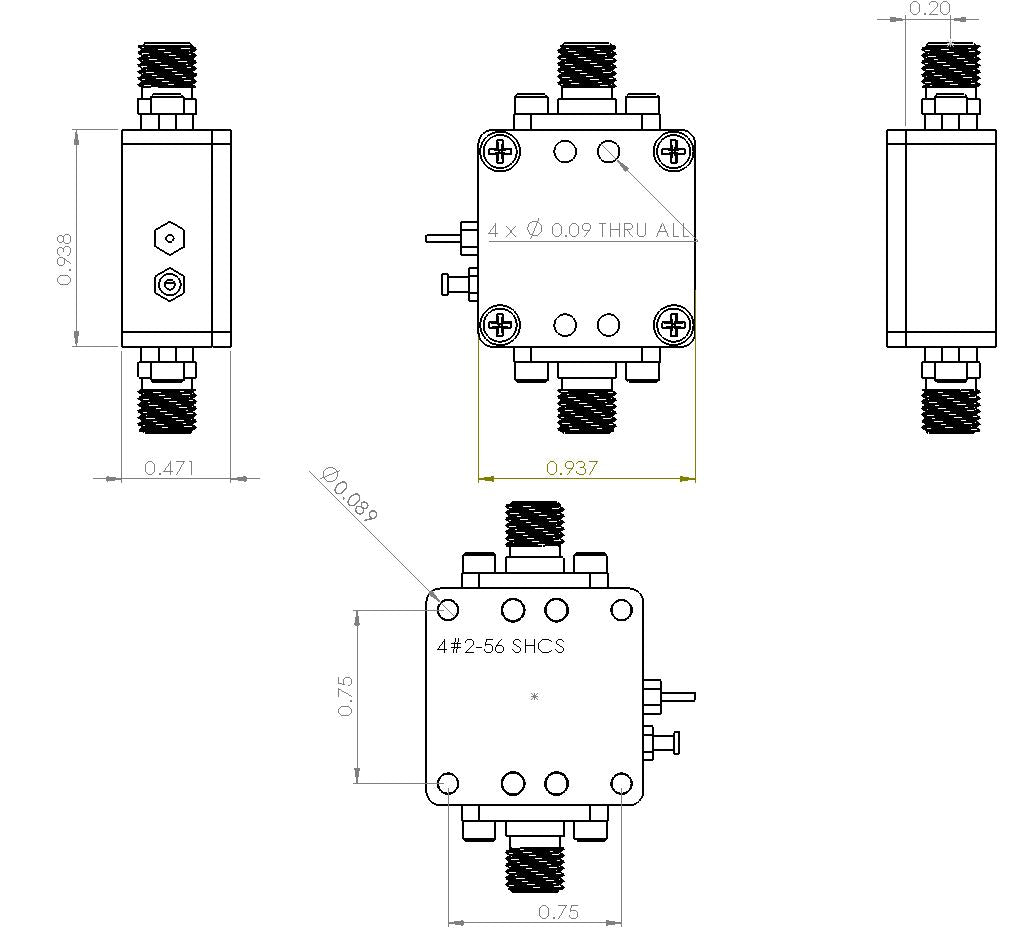

LNA5G11G is a broadband, GaAs MMIC low noise amplifier with 20 dB typical gain from 5 to 11 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2).  Its output 1dB compression point is +16dBm and third order linearity (OIP3) is typically 28 dBm. It has excellent Gain Flatness (+20dB Gain) between 5-11 GHz (+/-0.5dB).

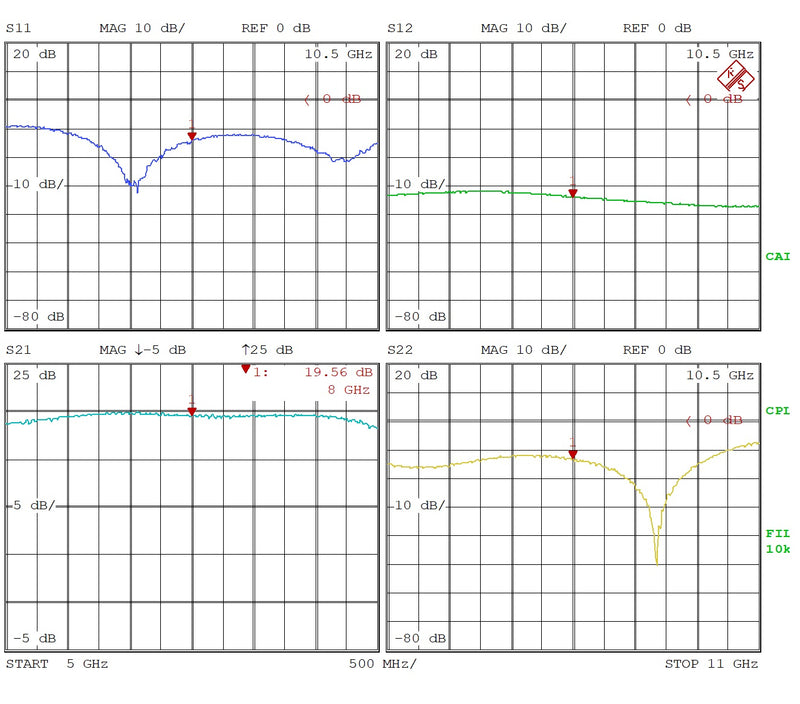

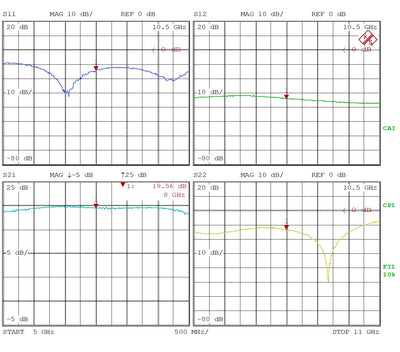

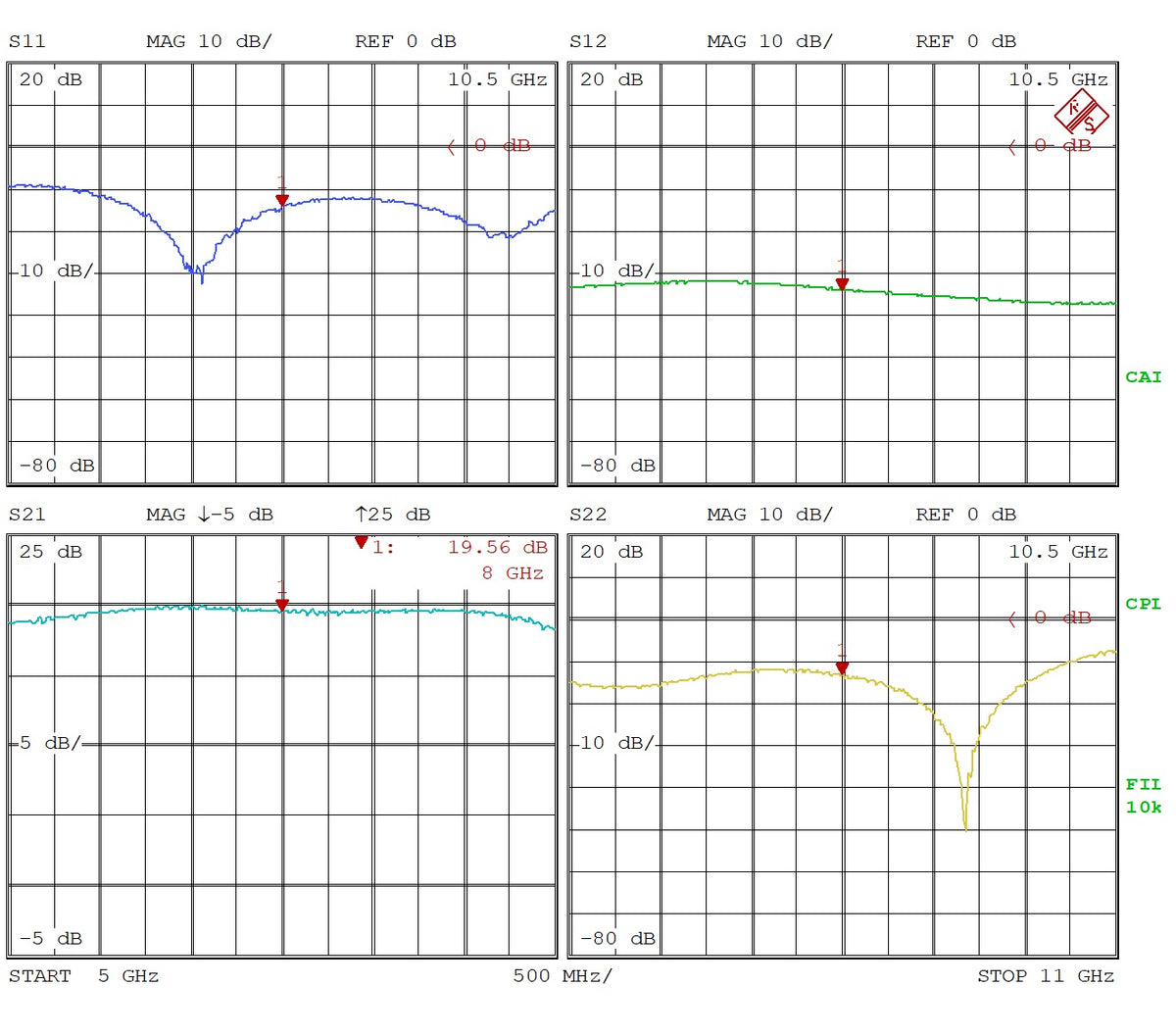

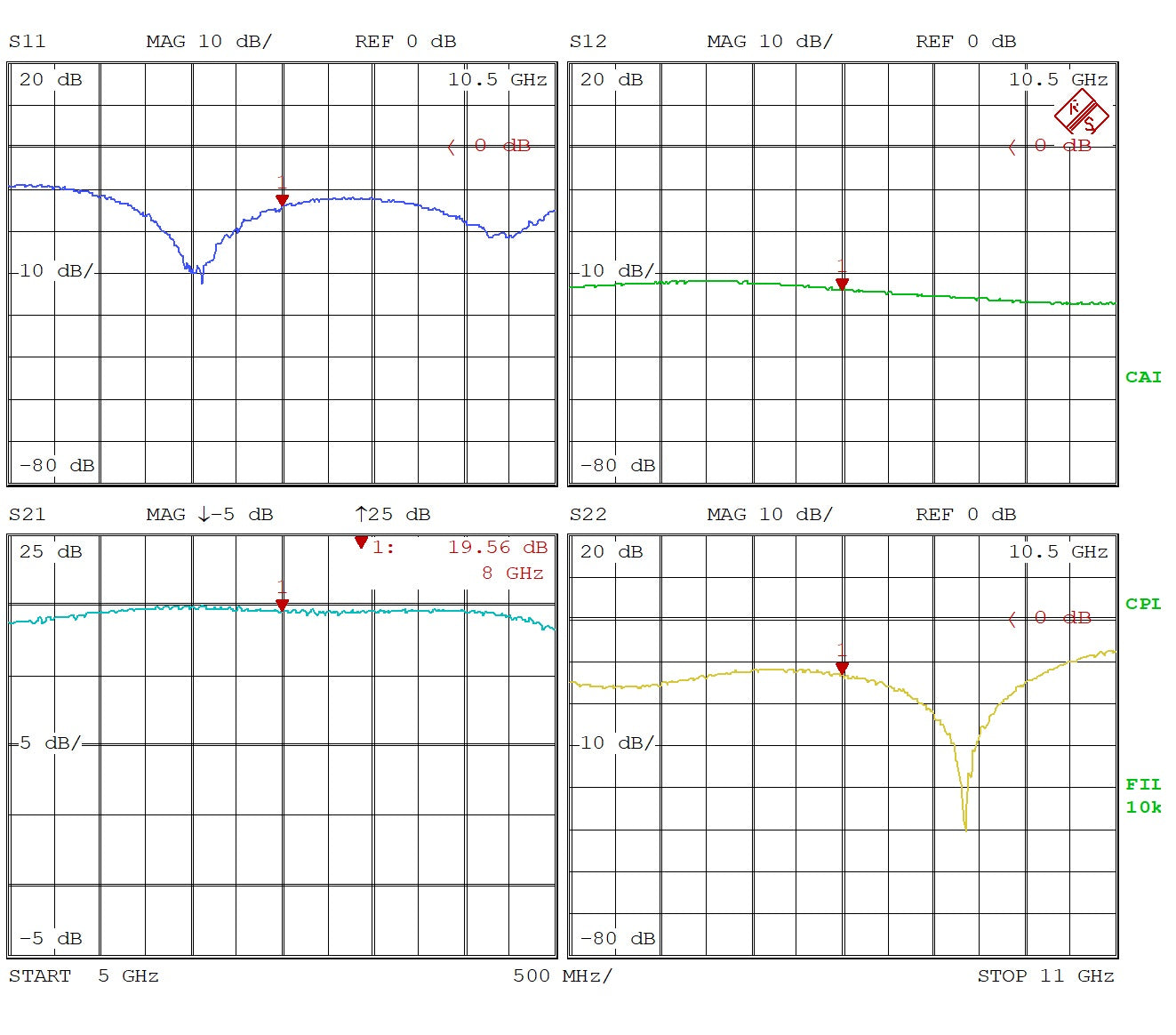

Listed pictures include Product Picture and S Parameter from 5 to 11GHz.

Features:
    * Frequency Range: 5GHz to 11GHz;
    * Noise Figure: typical 1.8dB
    * Gain: typical 20B
    * Output P1dB: 16 dBm
    * Output IP3: 28 dBm
    * DC Voltage: +3.5 V at 80mA
    * High Quality Rogers RO4350 RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant

Applications:
    * Test Instrumentation
    * Wideband A/D System
    * General Purpose Wireless
    * Radar & VSAT
    * SDR & Ham Radio

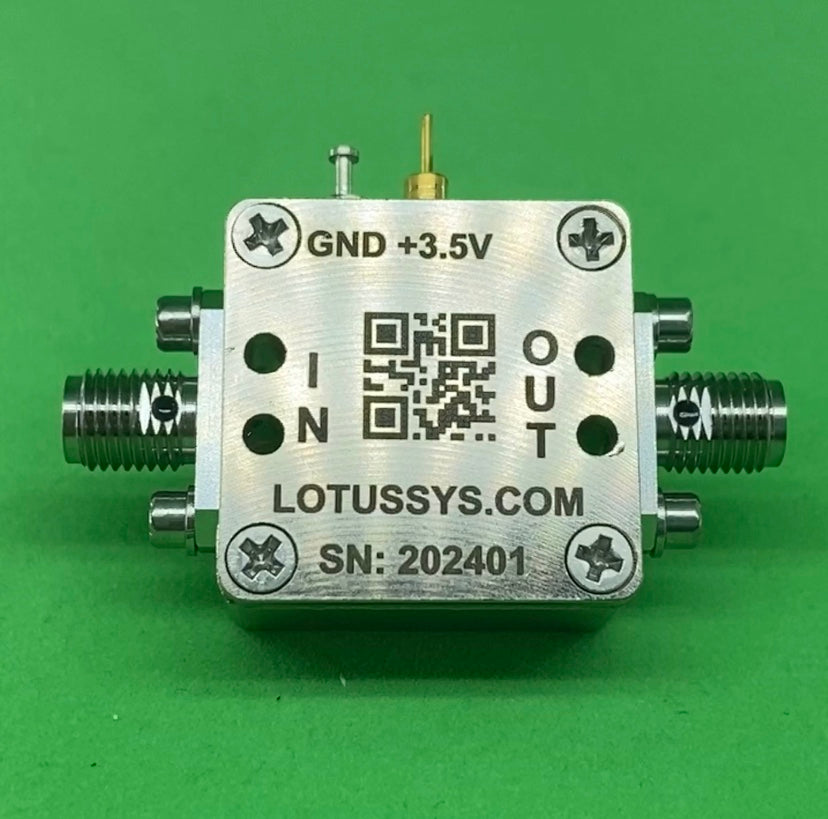

 This LNA includes the RF Enclosure as shown in picture.

Click https://cdn.shopify.com/s/files/1/1592/7469/files/LNA5G11G.pdf to see detailed specification.

Proudly MADE IN USA.
