Amplifier LNA 0.85dB NF 5250M~5455 MHz 39dB Gain 19dBm P1dB SMA - 2 Stage High Gain

3 items left
LNA5250M5455M is a flat gain, high-linearity, ultra low noise amplifier in a small 1-1/2”x15/16”x0.59” shielded RF enclosure (PN: 6UGD2W6S1A2). The LNA provides a 1dB flat gain (peak-to-peak) from 5250M to 5455 MHz. At 5.35 GHz, the amplifier typically provides 39 dB gain, +35.5 dBm OIP3 at a 120 mA bias setting, and 0.85 dB noise figure. The LNA can be biased from a single supply +5V.

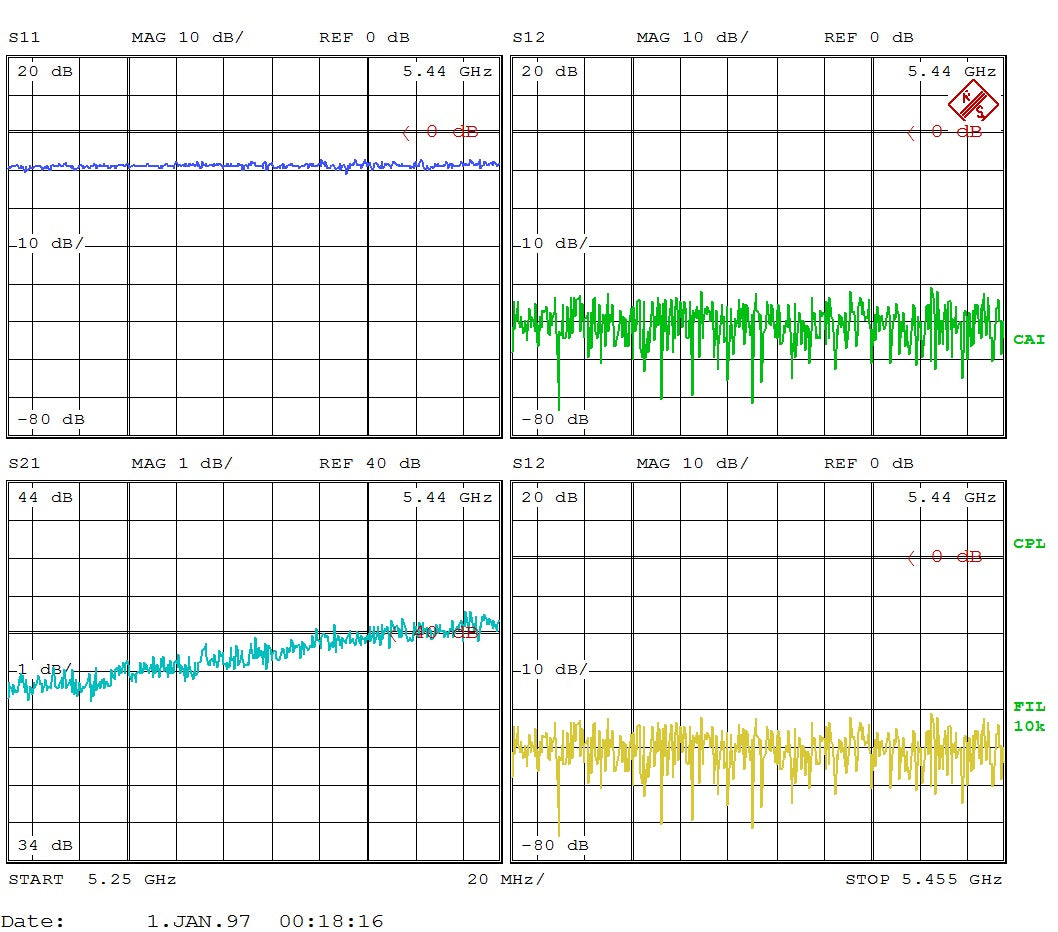

Listed pictures include Product Picture and S Parameter from 5250M to 5455 MHz.

    * Frequency Range: 5250 MHz to 5455 MHz;
    * Noise Figure: typical 0.85 dB @ 5.35 GHz
    * Gain: 39 dB Gain at 5.35 GHz
    * Output P1dB: +19 dBm CW
    * +35.5 dBm OIP3 at 120mA current
    * DC Voltage: +5V
    * Stainless Steel SMA Female Connector
    * Field Replaceable SMA Connector
    * High Quality Isola-Tera RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant

    * 4.5G, 5G Massive MIMO
    * Repeaters/DAS
    * Mobile Infrastructure
    * General Purpose Wireless
    * SDR & Ham Radio
    * Test Instrumentation

This LNA includes the RF Enclosure as shown in picture.

Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
